| Dimensions: | 1m |
|---|---|
| Technique: | fiberglass |
| Surface Treatment: | Surface Mat |
| Application: | architecture |
| Brand Name: | Greenlogy |
Quick Details
Specifications
Genius FRP
FRP structural shapes profile is made of glass fiber reinforced material, resin as adhesive, glass fiber cloth as a package reinforcement layer, through the thorough penetration, in the metal mold heating, molding, curing, drawing in the traction machine pulled A new type of composite material, with good physical properties, widely used in high strength, large span Situation.
Market:
-
Architectural
-
Bridge & Highway
-
Chemical
-
Food & Beverage
-
Manufacturing
-
Metals & Mining
-
Microelectronics
-
Oil & Gsa
-
Pharmaceutical
-
Power
-
Pulp & Paper
-
Recreation
-
Telecommunications
-
Transportation
-
Water & Wastewater
the characteristics:
-
Corrosion Resistant
-
Low Maintenance
-
Fire Retardant
-
Low Install Cost
-
Heavy Metal Safe
-
Long Service Life
-
Electrically & Thermally Non Conductive
-
High Strength-to-Weight Ratio
| Varieties | Size(mm) | Weight(kg/m) | Size(in) | Weight(lbs/in) |
|

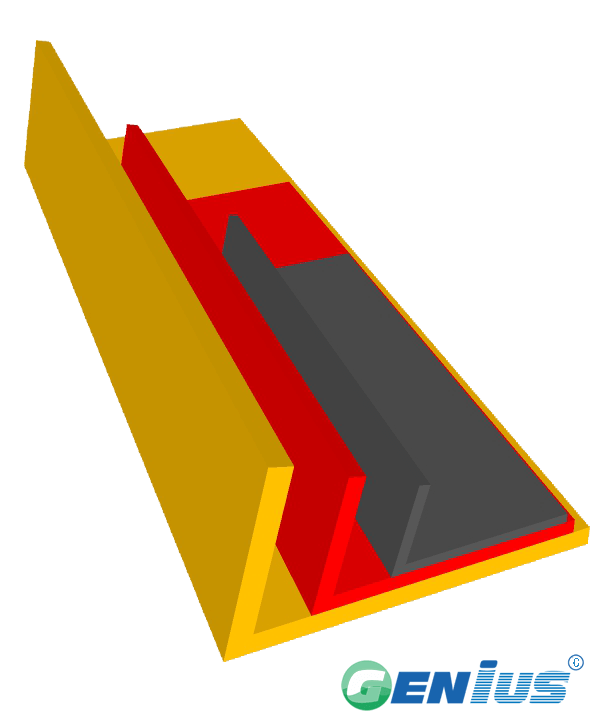

Hook plate |
A*B*T |
|
A*B*T |
|
|
|
9*70*3.2(Hypotenuse) | 0.48 |
1" x 1" x 1/8" (Hypotenuse) |
1.06 |
|
|
25*60*3 | 0.5 | 1" x 19/8" x 1/8" | 1.1 |
|
|
25*50*3(75) | 0.45 |
1" x 2" x 1/8" (75) |
0.99 |
|
|
30*70*4(90) | 0.75 |
19/16" x 11/4" x 3/16" (90) |
1.65 |
|
|
30*70*3.2(90) | 0.7 |
19/16" x 11/4" x 1/8" (90) |
1.54 |
|
|
30*90*3(87) | 0.72 |
19/16" x 7/2" x 1/8" (87) |
1.59 |
|
|
38*230*3.2(87) | 1.65 |
3/2" x 9" x 1/8" (87) |
3.64 |
|
|
40*254*6.4(87) | 3.55 |
25/16" x 10" x 1/4" (87) |
7.83 |
|
|
50*140*3.2(87) | 1.19 |
2" x 11/2" x 1/8" (87) |
2.62 |
|
|
55*152*3.6(87) | 1.55 |
9/4" x 6" x 1/8" (87) |
3.42 |
|
|
55*230*3.6(87) | 2.14 |
9/4" x 9" x 1/8" (87) |
4.72 |
|
|
55*205*3.2(87) | 1.62 |
9/4" x 8" x 1/8" (87) |
3.57 |
|
|
55*55*3.2(87) | 0.8 |
9/4" x 9/4" x 1/8" (87) |
1.76 |
|
|
55*70*3.2(87) | 0.9 |
9/4" x 11/4" x 1/8" (87) |
1.98 |
|
|
30*76*3 | 0.6 |
19/16" x 3" x 1/8" |
1.32 |
|
|
30*76*4 | 0.8 |
19/16" x 3" x 3/16" |
1.76 |
|
|
25*50*3.2(90) | 0.45 |
1" x 2" x 1/8" (90) |
0.99 |
|
|
25*50*4(90) | 0.51 |
1" x 2" x 3/16" (90) |
1.12 |
|
|
25*100*3.2(87) | 0.75 |
1" x 4" x 1/8" (87) |
1.65 |
| Fillet | 30*75*3.5 | 0.69 |
19/16" x 3" x 1/8" |
1.52 |
| Fillet | 30*100*3.2 | 0.8 |
19/16" x 4" x 1/8" |
1.76 |
| Right angle | 30*100*3.2 | 0.85 |
19/16" x 4" x 1/8" |
1.87 |
|
|
30*152*3.2 | 1.2 |
19/16" x 6" x 1/8" |
2.65 |
| Fillet | 30*230*3.2 | 1.6 |
19/16" x 9" x 1/8" |
3.53 |
| Right angle | 30*230*3.2 | 1.7 |
19/16" x 9" x 1/8" |
3.75 |
|
|
55*300*4(90) | 2.8 |
9/4" x 12" x 3/16" (90) |
6.17 |
|
|
55*345*4(87) | 3.25 |
9/4" x 27/2" x 3/16" (87) |
7.17 |
|
|
30*381*3.2(87) | 2.7 |
19/16" x 15" x 1/8" (87) |
5.95 |
|
|
55*400*3.2 | 2.8 |
9/4" x 63/4" x 1/8" |
6.17 |
