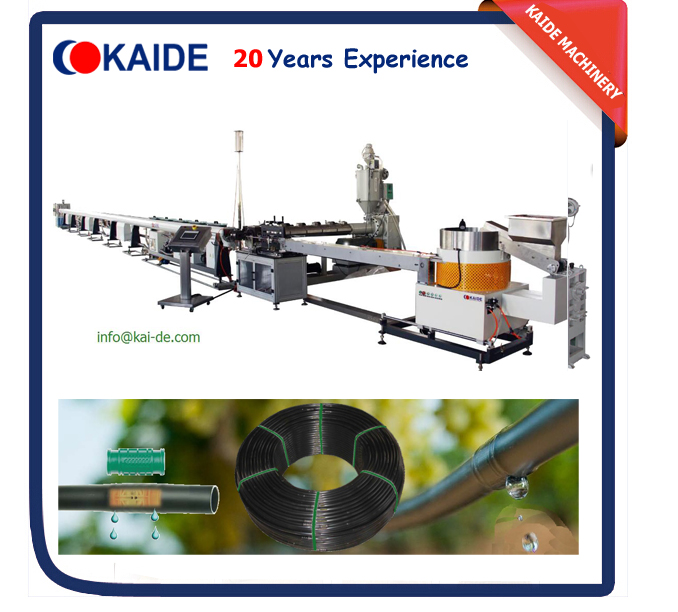

Inline Cylinder Round Drip Irrigation Pipe Making Machine/Extrusion/Production Line/Plant/Equipment

• Name:Round Inline Drip Irrigation Pipe Making Machine
• Dropper Spacing:Adjustable
• Cylindral inline drip irrigation pipe machine
• CylinderInline drip irrigation pipe production line

1.General Introduction

• 1) the dripper distance could be adjusted freely according to the crop distance
• 2) Round drip irrigation pipe with different pipe diameter and pipe thickness could be produced based on customer's demand
• 3) the first investment to the round drip irrigation pipe machine is low, but with high economic benefits
• 4) Our round and flat drip irrigation pipe machine has been exported to Many countries in the world, such as Russia,Korea, Ukraine, Iran, Saudi Arabia, Egypt,Mexico, Cyprus, Morocco etc and enjoyed customer's great Praise.

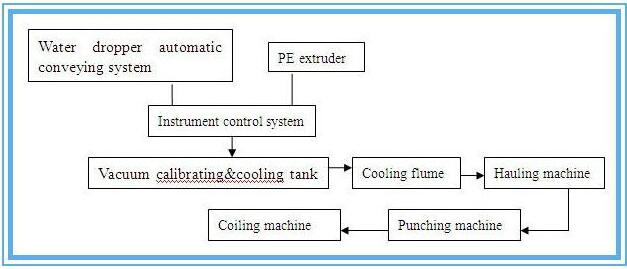

2.Production line Components:

NO.	Drip Irrigation Pipe Extrusion Machine Composition	Qty.
1	Water dropper auto conveying system	1 set
2	SJ-45/30 high speed polyolefin specialized extruder	1 set
3	High speed Co-extrusion die head mold	1 set
4	SGZL-32 vacuum calibrating cooling stand	1 set
5	SGL-32 cooling flume	1 set
6	Drying unit	1 set
7	Pipe Punching Machine	1 set
8	PQ-200 high speed belt pulling machine	1 set
9	SGJ-600 double working position coiler	1 set
10	Spare parts	1 set

3.Technical Data

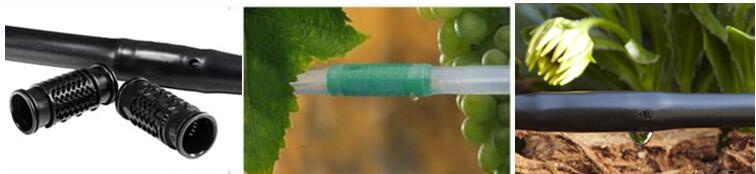

5.Application of Round Drip Irrigation Pipe

the Round drip irrigation pipe making machine is used to produce inline Round drip irrigation pipe,which is widely used in greenhouse and the Growing field crops and economic crops such as vegetables, fruit tree, Grape and flower etc. It could save water over 50%,increase production over 20%, save labor cost over 50%, save fertilizer over 50%.

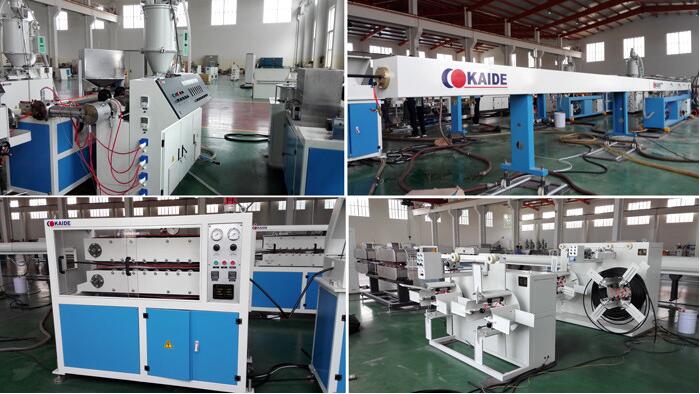

6.Round drip irrigation pipe machine photos

Our company is a factory special in manufacturing Plasric Pipe Extrusion Machine,especially:

• 1)high speed drip irrigation pipe extrusion machine,
• 2)high speed plastic pipe making machine
• 3)composite mutilayer plastic pipe making machine.
