Applicable Material



the Computerized Mini Laser Engraving Machine is suitable for various materials, such as bamboo piece, double color, boulder, horns, leather, crystal, wood, organic plastic, fabrics, paper,film, canvas, Acrylic, Plastics and painted/coated metals (metals that are not coated or painted will require a LMM spray). If you want to make sure this laser engraver will engrave on a certain item or cut a certain item, you are welcome to send me a sample of that item and I will test it for you. Just email me for details.







Applicable Industry



this machine is suitable to seal engraving, advertisement, art gift, garment, leather, toy, building upholster, computerized embroidery, packing and printing, paper product, garments sampling, large width tailoring,, shoemaking,  furniture, model industry, craftwork  and other industries.

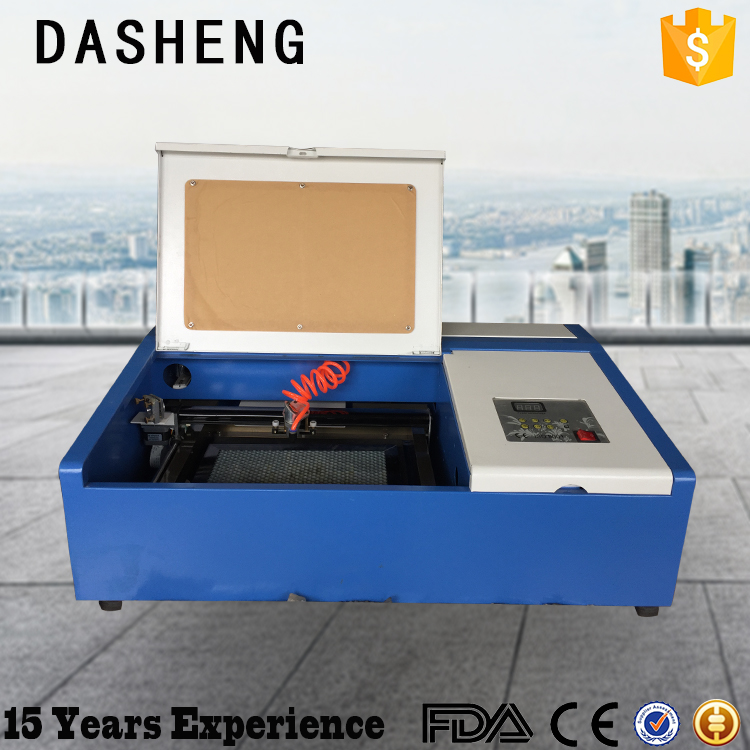

Model name	HI-320
Working area	300*200 mm		Laser power		40W
Support software	Coreldraw		Machine Type		Laser cutting machine
Power supply	AC2201050 HZ( AC1101050 HZ for option)
System environment	WINDOWS 2007/WINDOWS XP/MAC/Vista
Applicable Industry	Mainly used for the engraving and cutting of acrylic,glass,crystal,  wood, leather,cloth,rubber,marble,ceramic,etc. non-metal materials.
Machine color	Red + dark gray ( red white, blue white,yellow black etc. for option)
Laser type	Hermetic CO2 laser,wavelength 10.64um				Control configuration		DSP
Cooling way	Water cooling and protection system				Protection System		Yes
Max moving speed	500mm/s	Laser tube life Span			1500 hours
Locating mode	Red-light pointer	Locating precision			<0.01 mm
Operating temperature	5-35	Laser energy control			1-100 set by hand/software
Min shaping character	Character: 2*2 mm, letter: 1*1 mm				Resolution ratio	4500 dpi
Drive mode	Digital subdivision stepping motor				User Menu	Full English
Display screen	LCD			Data transfer interface		USB 2.0 offline
Memory	64 MB			Recommended Ship way		by sea
Dimensions	1400*1000*1110mm			Net Weight		35KGs
Dimensions(package)	1570*1130*1310 mm			Gross Weight		40KGs
Produce time	Normally 7-15days			Package		Wooden case
Graphic format supported	the file which CorelDraw, Photoshop, AutoCAD can identify(BMP,GIF,  JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXP,PAT,CDT,CLK,  DEX,CSL, CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX).
Guarantee	2 years,damageable spare parts(like laser tube,mirrors) 3 months
Package Inclusion	Software,USER MENU,Air pump,Power cable, USB cable, Water tank, Water Pipe,Smoke Vent-pipe,Air Blow Pipe ,exhaust fan,Tools bag
Optional parts	Honeycomb table/knife table

the company has passed ISO9001 International Standard Organization

Products has got European CE and American FDA certificate

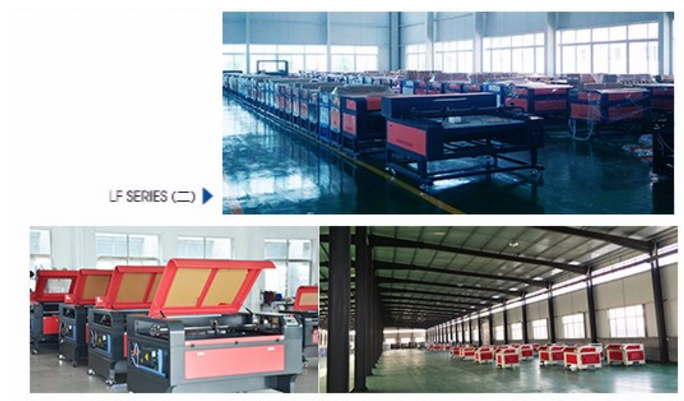

Shandong Dasheng machinery Equipment Co., Ltd is a professional manufacturer of industrial laser&CNC equipment in famous water city-Liaocheng,China.



since 2000, Dasheng machinery focused on the development and production of various types of laser engraving/cutting/

Fiber laser marking/fiber laser cutting machine/CNC router and accessories.We have more than 200 specialized production Technical personnel and 20 R&D personnel.with the advanced management,strong research strength and steady globalization strategy, Dasheng machinery establish more perfect product sales and service system in China and around the world, make the world's brand in laser industry.Our products have been exported to more than 70 countries and regions,such as Europe,America,Africa,the Middle East Southeast Asia and other regions.



Our company adheres to the principal " Quality First, Reputation First". the main accessories of our machine are from top quality brands,like LEADSHINE driver,Taiwan HIWIN guide rail, RECI laser tube and so on.Quality and reputation is the cooperation basis.So we always strict test 72 hours for machine to ensure the quality and stability of the machine, we use the most advanced production and testing equipment, including CO2 lasers meter, scanning mirror, AC variable voltage power emulator stable, focus system and state-of-the-art equipment to check the quality and performance of our industrial laser equipment in each production step to ensure our laser machine and CNC equipment quality and stable performance.



Furthermore,we pay much attention to after-sales service. Good service and good quality is same important for user.Dasheng machinery will follow the spirit " Credibility and Integrity", try best to provide customer more super product and better service.



Dasheng machinery--reliable professional Laser& Fiber &CNC equipment supplier!

Welcome to cooperate with us and achieve win-win!

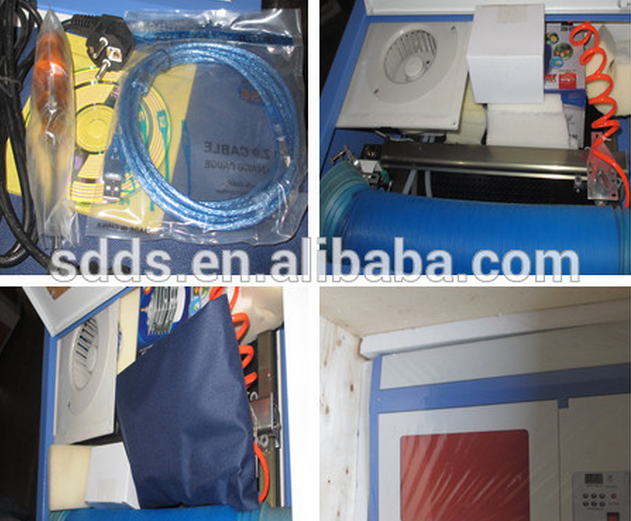

HI-320 40W Co2 3d crystal laser engraving machine,the accessories included:

1) 1*Air pump for Air Assist ( for blowing off debris as the laser engrave or cut).

2) 1*Exhaust fan with Tube ducts (install inside machine).

3) 1*Industrial water chiller.

4) 1*USB Cable (connecting PC and laser).

5) 1*CD (including software, user manual, guiding videos etc).

6) 2*Power cables.

7) 1*Tool box.

Q1. Trade company or manufacturer?

We are munufacturer, warm welcome to visit our factory!

Q2. Is it easy to operate for the new user?

Yes,It is very easy, we offer you User Manual for English language, also our technician can help you via whatsapp, Skype, Email etc.

Q3. What i need to do when the machine suffer trouble?

Marking sure all the wires be connection well, and keep your lens and mirrors be clea n, then chceck your leasr tube and talk details to us.

Q4.how to maintain the machine?

A. after 3 hours working,, it's better close 10 minutes.

B. Keep lens and mirrors clean

Q5. What about MOQ?

NO MOQ limit, if you purchase 20 sets or more, we will give you discount.

Q6. What are the applications for laser tubes with different powers? for example, what is the maximum thickness of Acrylic that laser machine can cut?

50W laser tube	6mm	Acrylic
60W laser tube	10mm	Acrylic
80W laser tube	15mm	Acrylic
100W laser tube	18mm	Acrylic
130W laser tube	20mm	Acrylic
150W laser tube	25mm	Acrylic

Q7. how to learn to operate laser engraving machine?
A, we have manual CD, covering operation video, detailed information about every part of machine, software installation, operation and warnings.
B, we provide free training in our company.

Q8. how to choose satisfied laser engraver and cutter?
It mainly depends on the maximum size and the thickness of material need to be cut? What material engraving do you need? We can recommend suitable machine for you and we can also produce various size machine to meet your demand.

Q9.What working size we have?

1-----300*200mm

2-----500*300mm

3-----600*400mm

4-----600*900mm

5-----1200*900mm / 1300*900mm / 1400*900mm

6-----1400*1000mm

7-----1300*1800mm

8-----1300*2500mm

Other size can be customized.





Tips

in order to help you choose the best suitable machine, please try to reply these questions below and contact with us:

1. What is your materials , wood, acrylic or something else?

2. What is the size of your mateiral length? Width and thickness?
