1. Introduction

Using high speed DSP technologies, 3G/LTE Pico ICS Repeater automatically clears feedback signals from the service antenna. the repeater enhances the 3G/LTE coverage throughout offices, stores and houses with its small size and built-in antennas. the repeater can be placed next to the window or other places of your convenience to receive signals from outside and create new coverage in the building. Just plug in the DC jack and rotate the repeater to the direction RSSI indicator shows for the best performance.User variable frequency and bandwidth make it possible to cover all telecommunication operators in the world.No technician or test equipment required.



2. Performance & Key Features

Built-in both Donor & Service Antennas

Supports Any Continuous20MHZ from 2.1GHz Whole 60MHz Band

Supports both3G & LTE Simultaneouslyin Same Frequency Band

Variable Bandwidth & Frequency by SDR Technology

DL: 10dBm, UL: 13dBm Output

Cancellation Range G=I+10dB

LED Bars Show Input Signal Strength and Isolation

User Installable; Auto Gain Control, Auto Shut Down, Auto Isolation Check & Gain Setup

Auto Detection & Changeover for the External Donor Antenna

Optional External Antenna & 10m 3D-FB Coaxial Cable

External AC/DC Adaptor



3. Application

1) Small Office

2) House



4. Kit

1) Repeater

2) AC/DC adaptor

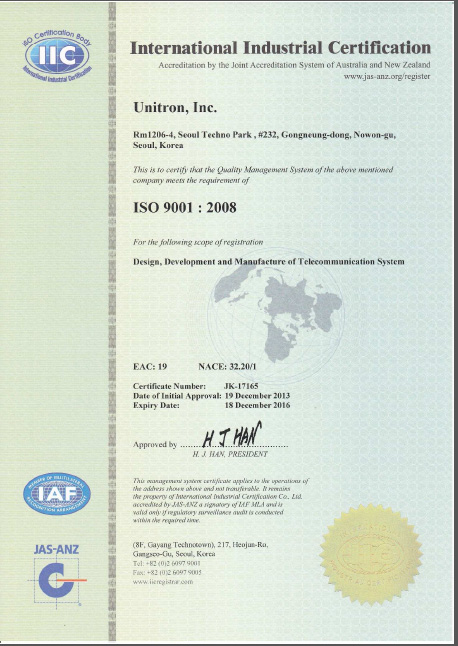

5. Certification
