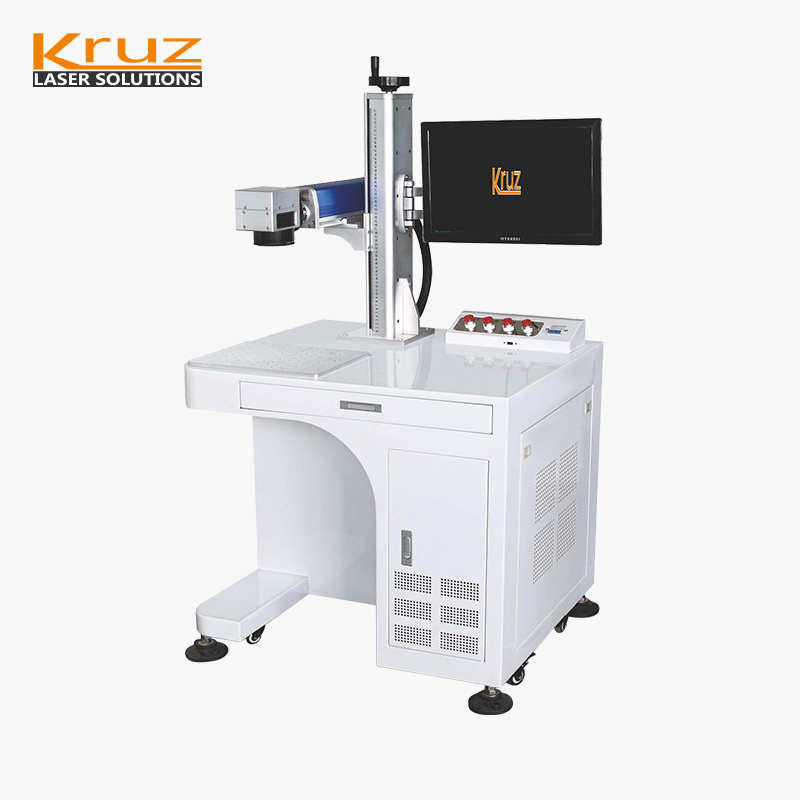

China Manufacuturer Fiber Laser Marking Machine for Metal and Nonmetal

Advantages:

1.the air cooling system, no need of maintenance;

2.Stable performance, the life time can be up to 100000 hours;

3.All kinds of metal materials and some kinds of non-metallic material marking; can be used for deep marking, the applicability is very widely;

4.with the computer, can freely change the marking and parameters;

5.the laser spot is small, can marking a fine,unique and never wear marks.

TypeKFp Simple,KF1 Universal,KF2 Universal,KFa Advanced

Laser type/Wavelength                      YLP/1064nm

Laser power                              10W  20W 30W50W

Beam quality                               M2<3

Pulse width                              100ns

Pulse repetition frequency                  20kHz ~ 200kHz

Power stability                              >4h+/-2% rms

Laser mode                              TEM00

Marking size                              100mm x 100mm

                                          180mm x 180mm or Order

                                          Marking depthAdjustable

Marking speed                          250Character/s

Marking width Min                          0.03mm(30m)

Marking character Min                      0.3mm

Repeat marking accuracy                  10/rad

Power total                              800W

Power supply                              AC 220V/50Hz

Outsize(Difference by types)                  570*840*1240mm

Applications:

1.Areas with depth, smoothness, and finer requirements;

2.Mobile phone keypad, plastic translucent keys;

3.Electronic components, integrated circuits (IC), PCB;

4.Electrical appliances, communication products, signage;

5.Sanitary ware, hardware products;

6.Tool accessories, precision instruments;

7.PVC pipe, medical equipment and other industries.
