>600 temperature heat treatment, 24 hours cooling in the oven, 8 meters gantry milling, accurate argon shielded arc welding, to make sure 20 years usage without deformation.

>Adopting United States imported sensor,precise laser cutting head, can cut metal and non-metal materials.
>Adopts high precision collimator for testing to install the guide rail, precision is 0.01mm
>Fast cutting with high precision It can cut stainless steel, carbon steel, galvanized steel, acrylic, wood and other materials.
>Laser head has adopt the Live focus system to engrave or cut irregular materials.
>Constant light path system: ( means: spread distance of the laser from laser tube to laser head remains the same when working). Our machine use the constant light path system to get high precision working at any part of the workign area.

1. Adjustable Speed and Power, Smooth and Precise Engraving and Cutting

2. USB Interface, U-Flash Disk Supported, Can use cable to connect with CP.

3. Air Assist, Remove heat and combustible gases from the cutting surface.

4. Embedded Exhaust Fan, Easier intall, Safer transport.

5. Rotary Axis, Engrave any cylindrical object.

6. Cellular platform, Leave no chippings on working area.

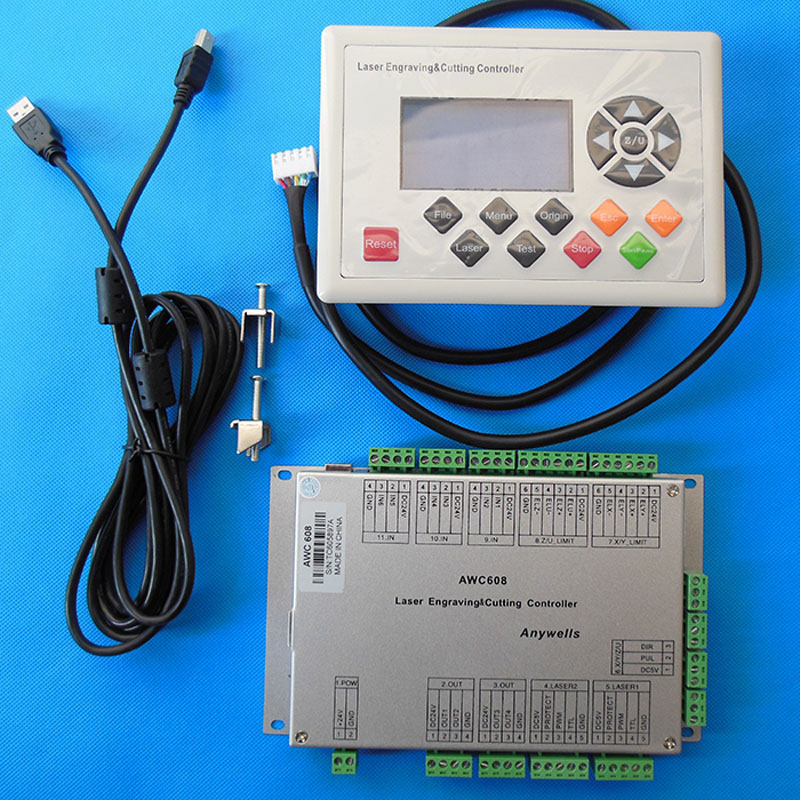

7. Intuitive Control Panel, Set Speed, power and more controls directly from the laser.

8. Water Cooling and Protection System.

9. Red-light positioning system

10. Emergency Stop Button.Can stop immediately in case of accident,feel safe to operate.

11. Larger Size, standard 400*600mm working area.

12. Lifting platform is electric control.

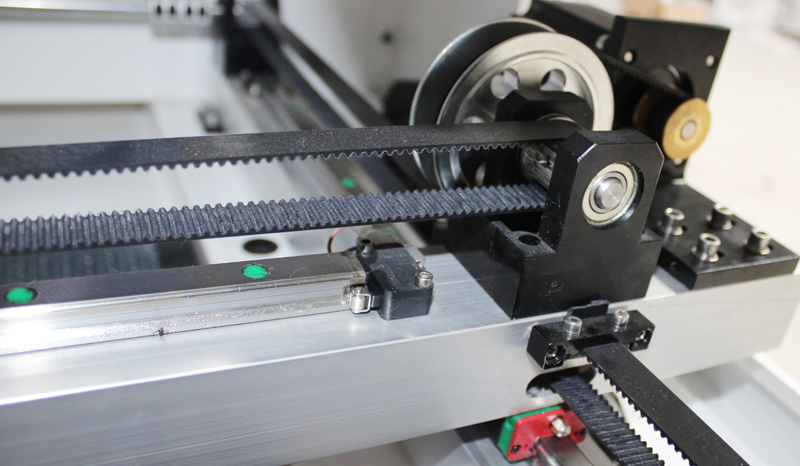

13. Drag chain transmission line,it's more stable and fast while engraving and cutting.

14.Hydraulic support rod,beautiful and protect the object from moving due to accidently touch and close.

15.Optional configuration:off-line working,can operate without CP,just import the designed pictures or font into U-flash disk,then insert it into CP,conveniently

Technology parameters:

Model	FST-6090
Communication Interface	USB2.0(offline work supported)
Engraving area	600X900mm
Laser Power	60W/80W/100W/130W/150W
Engraving Speed	1200mm/s Max
Cutting Speed	0-500mm/s
Cutting Depth (Acrylic)	(80w Laser Tube)  Acrylic Max 20mm
Resetting positioning accuracy	<0.01mm
up and down work table	550mm up and Down adjustable by Motor
Minimum Shaping Character	1 X 1mm
Power Supply	220V(or110V)+/-10% 50Hz
Gross Power	1000/1200W
Operating Temperature	0-45
Software	Laser CUT,Laser CAD, Laser WORK
Graphic Format Supported	PLT/DXF/BMP/AI
Operation System	Windows 98/ME/2000/XP/VISTA/Windows 7
Cooling System	Water Cooling and protection system
Laser Tube	Sealed CO2 glass laser tube
Machine Dimension	149011001080mm
Packing dimension	1690*1300*1350mm
Worktable	Honey comb worktable/aluminum knife//up and down
Optional Spare Parts	Rotary Clamp : used to engrave on curve surface

Laser engraving cutting machine sample:
Applicable Materials: Rubber,plastic,cloth,leather,woollens,crystal,organic glass,tile,jade,bamboo, wood,etc.

Applicable Indusries:Rubber,plastic,cloth toys,leather,computer cutting, mould,crafts,bamboo and wood,advertising and building decoration,

Packaging and printing, paperproducts.

Typical Application:Acrylic crystal words,acrylic fish tank,ceramic crafts,rubber board printing,applique,special-shaped trademark,engraving and hollowing out patterns or designs on garment and leather.

Our services:
Before-sale:
 Firstly, in order to make our customers to purchase a good machine, we give the customers machine real pictures and videos, What's more, we are very welcome our customers come our

Factory to see our machine operating and best reception service for our customers.

Free consulting service of pre-sale for you! According your special need,then I will recommend you the most suitable model to reach your satisfaction.

 after-sale

1.2 year warranty, the machine with main parts (excluding the consumables) shall be

Changed free of charge when if any problem during the warranty period.

2. Lifetime maintenance free of charge.

3. Free training course at our plant.

4.18 hours on line service each day, free technical support.

5. Machine has been adjusted before delivery.We will take machine photos and make

Machine working image for you ,after getting your agreement ,then we will book  a ship.

6. Providing technical services to the door(We have professional engineers to offer

Machine installment on commissioning and maintenance)

7. if you have any problem during your use.You need our technician to judge where the

Problem is and help you to solve it. We can provide team viewer and skype with can

Till all of your problems solved.

Packsging and shipping:
Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom with this kind machine, all our laser machine can protect well during long trip by sea or by train.We can transport machine by boat or by training, according to your requirement
