Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Voltage: 380V
Brand Name: RC
Type: Gravity
Condition: New
Warranty: 2 years
Certification: ASME
Dimension(L*W*H): 7.6* 2.2 *2.4 m
Weight: 12.5t
Power(W): 450-700kw
Model Number: RCM06V
Place of Origin: China (Mainland)
Product Type:
Product name: Factory direct sell oil gas water filter separator / three 3 phase separator / gas liguid separator
Company type: Manufacturer
Company experience: 13 years
Dimension: 7.6* 2.2 *2.4 m
NG Treated Amount(x104 NM3/d): 30
Fluid Treated Amount(xM3/d): 100
Design pressure max: 9.8MPa(1400psi)
Weight: 12.5t
Structure style: integral
Certification: ISO9001

Specifications

the following example is for you reference.


1.Brief Introduction:

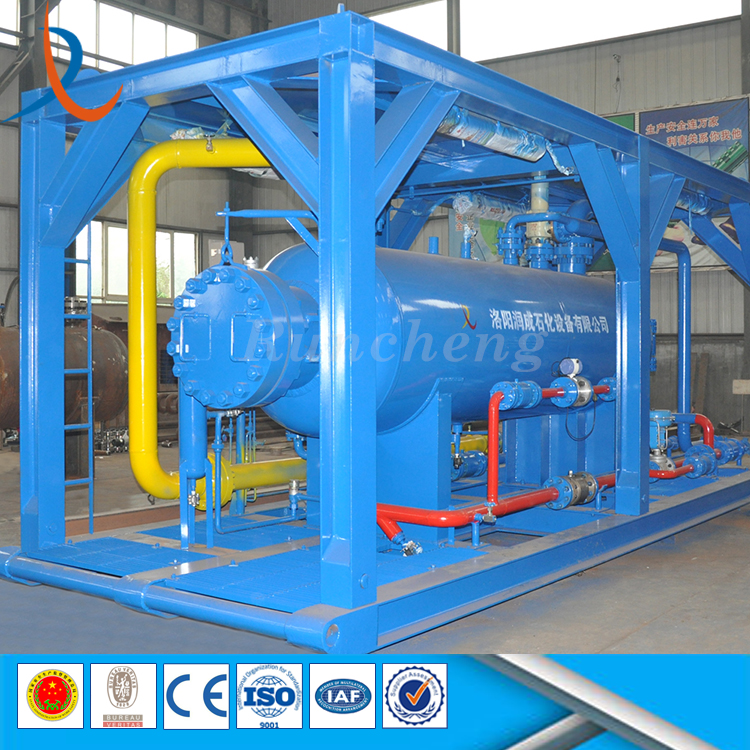

 Three phase separator Is a special equipment for oil and gas well testing and gathering pretreatment. Oil gas water separator is mainly used for wellhead products of oil-gas-water separation and accurate measurement.

 Factory direct sell gas liguid oil gas water filter separator three 3 phase separator

2.Techincal parameters:



Model

RCM06V

Description

Factory direct sell oil gas water filter separator / three 3 phase separator / gas liguid separator

Dimension

7.62.22.4m

Total Weight

12.5t

Monitoring mode

IPC control

Gas processing capacity

50 (104 N m/day)

Liquid processing capacity

150(m/day)

Design pressure max

9.8MPa(1400psi)

Design temperature max

 80

Liquid process capacity

300m/d

Inlet pressure

32.0MPa(4640psi)

Inlet temperature

10(50F)

Processing medium

Crude oil, water, associated gas mixture

Rupture disk set pressure

9.4MPa(1363psi)

Gas flow measure precision

1%

Liquid content in gas

 13mg/Nm

Oil content in water

180mg/L

Water content in oil

 0.5%

Gas-Oil Ratio

 >150

 Factory direct sell gas liguid oil gas water filter separator three 3 phase separator

3.Performance features:

Accurate, safe separation and measurement of oil,gas and water from well effluent.

 Uninterrupted operation from begginning to end.

 High automation and high measurement precision.

 Electronic data acquisition, accurate data details.

 Double safety devices:rupture disk and spring safety valve.

 the parameters alarms by sound and light

 Automatically generate reports




Factory direct sell gas liguid oil gas water filter separator three 3 phase separator

Company Information

Why choose us Luoyang Runcheng?

1) Technical: Cooperated with SINOPEC research institute

2) Experiences: Established in 2004, More than 12 years in petrochemical industry

3) Price: Material and labor service are resonable and competitive price

4) Certificate: BV, SONCAP, DNV, CE or others

5) Service: 24-hours technical support by email and mobile







      Long-term cooperation companys including Schlumberger, CNPC, SINOPEC, YANCHANG PETROLEUM and CMEC etc. and our equipment are widely Used in Daqing, Changqing, Dagang, Jilin, Qinghai oilfield in China.
