| Brand Name: | ABB |
|---|---|
| Output: | 4 to 20 mA, HART |
| Accuracy: | 0.1 % |
| Power Supply: | 24v |
| Range: | 6 to 3000 kPa abs |
| Model Number: | 261AC, 261AG, 261AJ, 261AM, 261AN |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

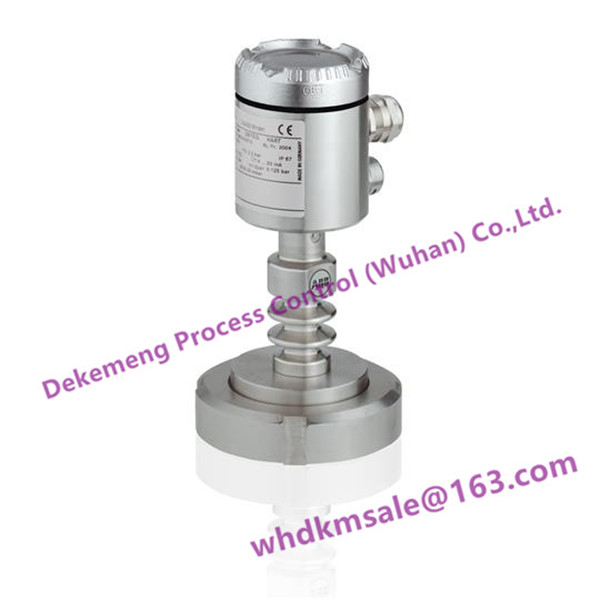

ABB Absolute pressure transmitter
Introduction
the compact transmitter class for absolute pressure with frontbonded diaphragms works within a broad selection of variants, options, fill fluids and wetted materials.
Features
the compact, robust transmitter housing is made of 316 stainless steel as a standard. Due to its high corrosion resistance it can be used in a wide variety of process and ambient conditions without any problems.
the user friendly display allows simple and intuitive local transmitter operation. Full device support, including diagnostic / maintenance information is guaranteed via the Device Type Manager software used in either a stand alone or system engineering tool. The transmitter provides local zero and span adjustments even without display.
the wide range of available process connections meets even special industrial requirements:
Threaded connections: e.g. for the power, pulp/paper, or oil and gas industries
Flange connections: e.g. for the chemical industry
Hygienic connections: e.g. for the pharmaceutical or food and beverages industries
Specifications
Base accuracy: 0.1 %
Span limits: 6 to 3000 kPa ABS; 45 mmHg to 435 psia
Output signal: 4 to 20 mA, HART
Conforms to SIL2 acc. to IEC 61508 / IEC 61511
Full compliance with PED Category III
261AC, 261AG, 261AJ, 261AM, 261AN
Introduction
the compact transmitter class for absolute pressure with frontbonded diaphragms works within a broad selection of variants, options, fill fluids and wetted materials.
Features
the compact, robust transmitter housing is made of 316 stainless steel as a standard. Due to its high corrosion resistance it can be used in a wide variety of process and ambient conditions without any problems.
the user friendly display allows simple and intuitive local transmitter operation. Full device support, including diagnostic / maintenance information is guaranteed via the Device Type Manager software used in either a stand alone or system engineering tool. The transmitter provides local zero and span adjustments even without display.
the wide range of available process connections meets even special industrial requirements:
Threaded connections: e.g. for the power, pulp/paper, or oil and gas industries
Flange connections: e.g. for the chemical industry
Hygienic connections: e.g. for the pharmaceutical or food and beverages industries
Specifications
Base accuracy: 0.1 %
Span limits: 6 to 3000 kPa ABS; 45 mmHg to 435 psia
Output signal: 4 to 20 mA, HART
Conforms to SIL2 acc. to IEC 61508 / IEC 61511
Full compliance with PED Category III
261AC, 261AG, 261AJ, 261AM, 261AN
