| Moving Type: | Wheel Loader |
|---|---|
| Type: | Mini Loader |
| Brand Name: | UNIONTO |
| Condition: | New |
| Year: | 2017 |
| Make: | Shandong Kaiqiang Machinery., Ltd |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | one year |
| Certification: | ISO |
| Rated Load: | 4000kg |
| Dimension(Long * Breadth * High): | 7130*2500*3340mm |
| Place of Origin: | China (Mainland) |
| Model Number: | UNIONTO 840 |
| Name: | mini wheel loader 4ton high quality Chinese wheel loader |
Quick Details
Specifications

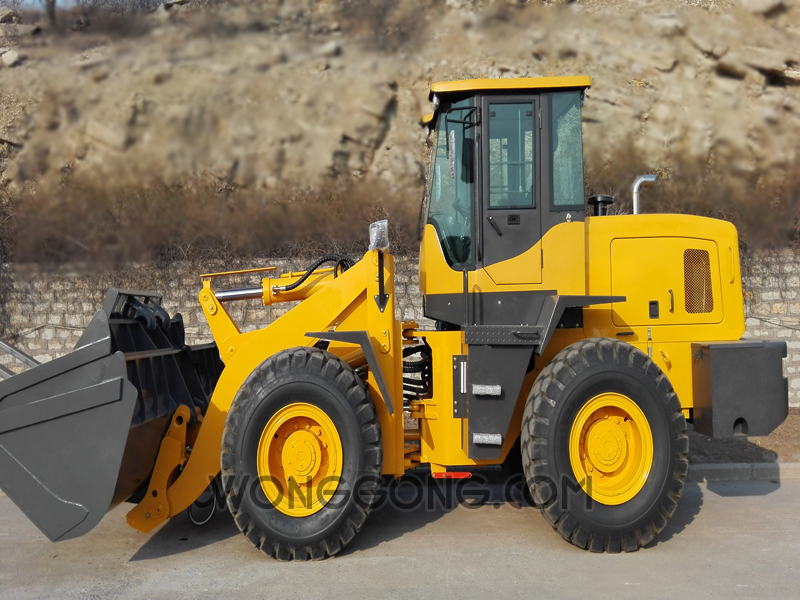

Mini wheel loader 4ton high quality Chinese wheel loader
the Main Performance Parameter of Wheel Loader UNIONTO-840
Performance |
1 |
Rated loading |
4000kg |
2 |
Overall weight |
12000kg | |
3 |
Bucket capacity |
2.0-2.5m3 | |
4 |
Maximum traction force |
95KN | |
5 |
Maximum breakout force |
127KN | |
6 |
Maximum grade ability |
30 | |
7 |
Maximum dump height |
3100mm | |
8 |
Maximum dump reach |
1100mm | |
9 |
Overall dimension (LWH) |
7130*2500*3340mm | |
10 |
Minimum turning radius |
6400mm | |
Engine |
11 |
Model |
Weichai Deutz |
12 |
Type |
Water cooled, four stroke, direct injection, pressurization | |
13 |
No. of Cylinder |
6 | |
14 |
Rated power |
92kw2200r/min | |
15 |
Maximum torque |
750N.M/1300rpm | |
16 |
Min. fuel-consume ratio |
210Kw h | |
Transmission system |
17 |
Torque converter |
YJ315-X |
18 |
Gearbox type |
Countershaft, Constant mesh type | |
19 |
Gears |
4 forward, 2 reverse | |
20 |
Maximum speed |
45km/h | |
Drive axles |
21 |
Main reducTion type |
Spiral bEvel gear Single Reduction |
22 |
Hub reduction type |
Single-stage pLanetary reduction | |
23 |
Wheel base (mm) |
2900mm | |
24 |
Wheel tread |
1830mm | |
25 |
Ground clearance |
400mm | |
Hydraulic system |
26 |
System working pressure |
16,5MPa |
27 |
Boom lifting time |
4.83 | |
28 |
Total time |
9.850.5s | |
Brake system |
31 |
Service brake |
Air over Oil Caliper disc brake on 4 wheels |
32 |
Parking brake |
Manual caliper disk brake | |
Tyre |
33 |
SPecification |
17.5-25 |
34 |
Front tyre pressure |
0.4Mpa | |
35 |
Rear tyre pressure |
0.35Mpa |
