Standard configuration for laser engraving machine:



Working size: 600*400mm

Laser tube: 50W CO2 laser tube

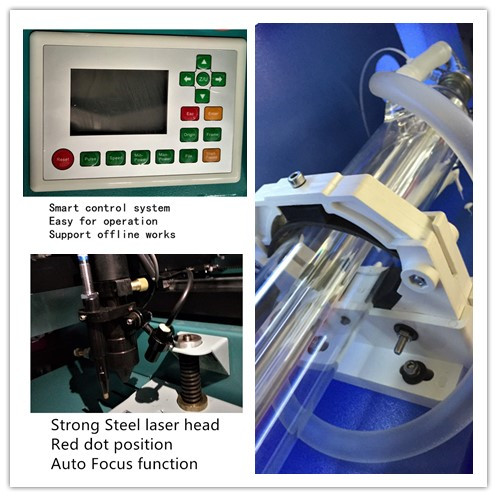

Control system: Redcam control system

Software: Laserworks, which could well support the Coreldraw, Laserworks, Photoshop, etc

Lens: Singapore focus mirror and reflection lens

Guide rail: Taiwan HIWIN linear rail guide

Worktable: Electrical up-down table

with auto focus function

Equipped with Water pump, Air pump, Exhaust fan, Water protector, Red pot position, LED, etc

Optional parts:



Rotary device

Camera

What working size we have?

1-----300*200mm

2-----500*300mm

3-----600*400mm

4-----600*900mm

5-----1200*900mm / 1300*900mm / 1400*900mm

6-----1400*1000mm

7-----1300*1800mm

8-----1300*2500mm

Other size can be customized.

Model  name	HI-460L
Working area	400*600 mm	Laser power		40W(60W for option)
Support software	Coreldraw	Machine Type		Laser engraving machine
Power supply	AC22010%50 HZ( AC11010%50 HZ for option)
System environment:	WINDOWS 2007/WINDOWS XP/MAC/Vista
Applicable Industry	Mainly used for the engraving and cutting of acrylic,glass,crystal, wood, leather,cloth,rubber,marble,ceramic,etc. non-metal materials.
Machine color	Red + dark gray ( red white, blue white,yellow black etc. for option)
Laser type	Hermetic CO2 laser,wavelength 10.64um			Operating temperature		5-35
Cooling way	Water cooling and protection system			Protection System		Yes
Max moving speed	500mm/s	Laser tube life Span		1500 hours
Locating mode	Red-light pointer	Locating precision		<0.01 mm
Recommended Ship way	by air/sea	Display screen		Digital panel
Min shaping character	Character: 2*2 mm, letter: 1*1 mm			User Menu	Full English
Dimensions	1050*800*600mm		Net Weight		90KGs
Dimensions(package)	1150*900*720 mm		Gross Weight		100KGs
Produce time	Normally 7-15days		Package		Wooden case
Guarantee	1 year, damageable spare parts(like laser tube,mirrors) 3 months
Package Inclusion	Software,USER MENU,Air pump,Power cable, USB cable, Water pump,Water Pipe,Smoke Vent-pipe,Air Blow Pipe,exhaust fan,Tools bag
Optional parts	CW3000/ rotary/Honeycomb table/knife table



Applicable Industry:



Pacaging and engraving industry: Paper engraving and cutting, rubber plate engraving and cutting, etc

 Art and craft industry: Crystal engraving, glass engraving, acrylic engraving and cutting, etc

Advertisment industry: Acrylic engraving and cutting, color palte engraving, sign carvin, etc

 Clothes industry: leather cutting, fabric cutting, etc

 Stone industry: marble engraving, photo and text design on granite, etc

 Photo building industry: carving photos on acrylic, photo paper, etc

 Model industry: ABS cutting, model airplane cutting, wood engraving and cutting, etc

Q1. Trade company or manufacturer?

We are munufacturer, warm welcome to visit our factory!

Q2. Is it easy to operate for the new user?

Yes,It is very easy, we offer you User Manual for English language, also our technician can help you via whatsapp, Skype, Email etc.

Q3. What i need to do when the machine suffer trouble?

Marking sure all the wires be connection well, and keep your lens and mirrors be clea n, then chceck your leasr tube and talk details to us.

Q4.how to maintain the machine?

A. after 3 hours working,, it's better close 10 minutes.

B. Keep lens and mirrors clean

Q5. What about MOQ?

NO MOQ limit, if you purchase 20 sets or more, we will give you discount.

Q6. What are the applications for laser tubes with different powers? for example, what is the maximum thickness of Acrylic that laser machine can cut?

50W laser tube	6mm	Acrylic
60W laser tube	10mm	Acrylic
80W laser tube	15mm	Acrylic
100W laser tube	18mm	Acrylic
130W laser tube	20mm	Acrylic
150W laser tube	25mm	Acrylic

Q7. how to learn to operate laser engraving machine?
A, we have manual CD, covering operation video, detailed information about every part of machine, software installation, operation and warnings.
B, we provide free training in our company.

Q8. how to choose satisfied laser engraver and cutter?
It mainly depends on the maximum size and the thickness of material need to be cut? What material engraving do you need? We can recommend suitable machine for you and we can also produce various size machine to meet your demand.





Tips

in order to help you choose the best suitable machine, please try to reply these questions below and contact with us:

1. What is your materials , wood, acrylic or something else?

2. What is the size of your mateiral length? Width and thickness?
