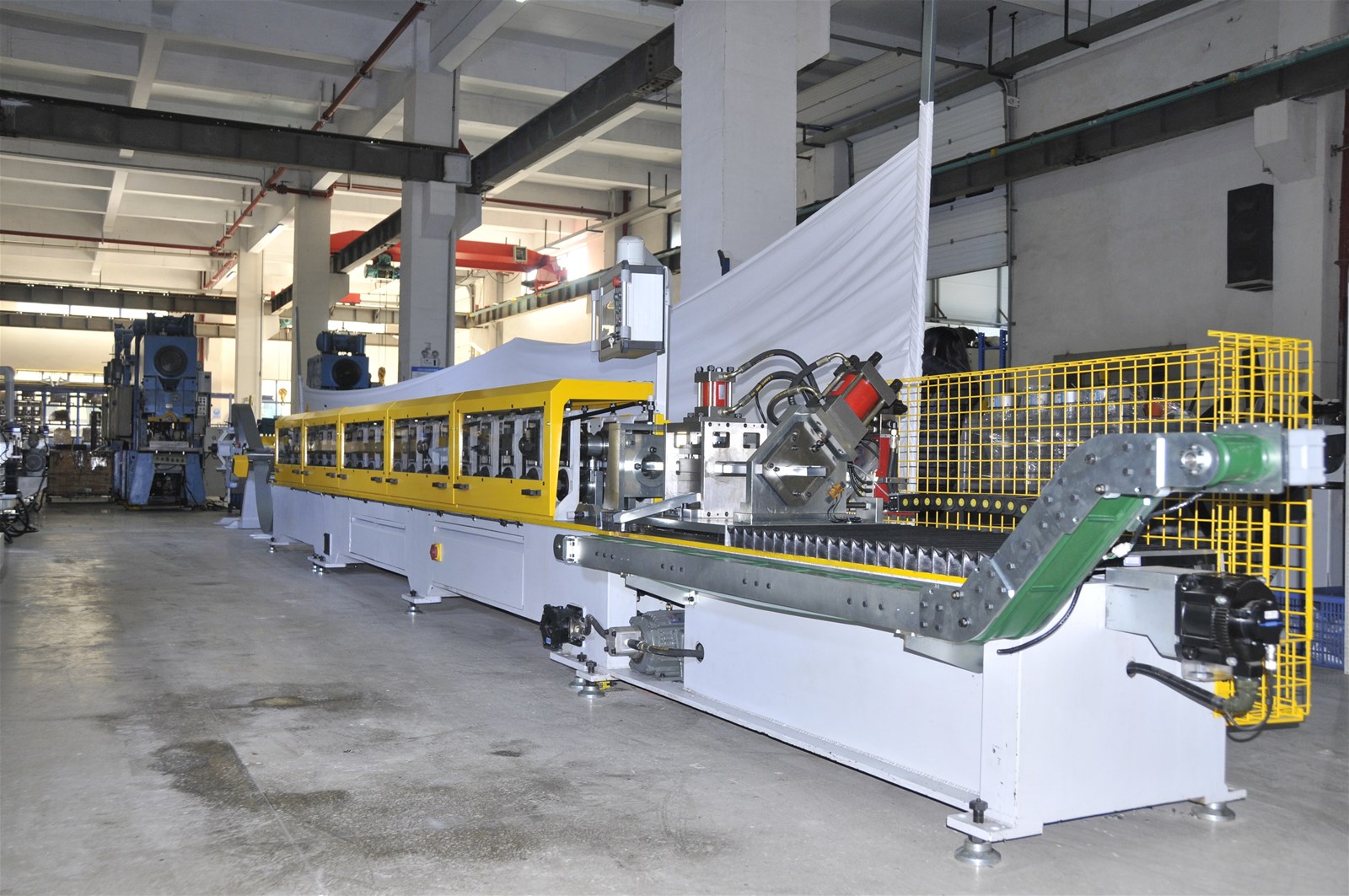

Track roll forming machine

1.Brief Introduction:



Track Roll Forming Machine

1.Europe design&Top quality:

Combined Italy design with own R&D innovative thoughts&All raw material and Accessories we purchase are good brand.

2.Responsible after-sales service:

Our staff is well-trained and educated in this industry for more Than 10 years and ready for over-sea support at any time.

3.Guarantee Period:

Within one year since the date of finishing commissioning.the Guarantee covers all the electric, mechanic and hydraulic parts in the line Except for the easy-worn parts.

4.Easy Operation:

Machine is controlled by PLC computer controlling systerm.

5.Reasonable Price:

We offer the Best price in our industry.





2.Techincal parameters:



Technical Process:3T decoiler-Guided feeding-Dispense lubrication-Punching-Roll Forming-Cutting to length-Collection table
No.	Item	Parameter
1	Decoiler	2T Dual-head decoiler(Manual,hydraulic and pnuematic available)
2	Transmission Way	Gear/Chain Drive
3	Voltage	380V 50Hz 3PH/Customized
4	Material Thickness	0.6-1.2mm/Customized
5	Forming Speed	10-20m/min
6	Roll Stations	14~20 Stations
7	Roller material	Cr12MoV,HRC58~62
8	Shaft Material	High Grade 45# carbon wrought steel
9	Bearing	C&U Brand,9pcs per station
10	Lining	Seamless Steel tube,single surface thickness5mm
11	Cutting	Hydraulic Cutting,non-stop fly shear cutting
12	Material of blad	Cr12MoV
13	Control System	PLC,DELTA Brand,with touch screen and height adjustable
14	Encoder and sensor	OMRON Brand
15	Cover	Steel+PC
16	Collection Table	as Customer required
17	Lead Time	2~3 Months
