1.Product Description
Manual Fire Monitor has characteristic with adjustable flow rate, distant range and wide discharging range and the discharge range is also adjustable-----have both straight stream and fog stream. Manual fire monitor can be installed in the places of flammable or explosive chemical circumstance, airport, oil area, oil transport wharf, shipyard etc. It is an efficient equipment for putting out fire, and it is also can be fixed on fire vehicles.
2.Technology Specification

Model	PS20	PS30	PS40	PS50	PS60	PS70	PS80
L/S	20	30	40	50	60	70	80
Working Pressure(Mpa)	0.8	0.8	0.8	0.8	0.9	0.9	0.9
Max Working Pressure(Mpa)	1.0	1.0	1.0	1.0	1.2	1.2	1.2
Flange Connection(mm)	DN80	DN80	DN80	DN80	DN100	DN100	DN100
Water Jetting Range(m)	48	55	60	65	70	75	80
Horizontal Angle (Degree)	0-360	0-360	0-360	0-360	0-360	0-360	0-360
Max Angle of Elevation (Degree)	70	70	70	70	70	70	70
Max Angle of Depression (Degree)	-70	-70	-70	-70	-70	-70	-70

Model	PL24	PL32	PL48	PL64
L/S	24	32	48	64
Working Pressure(Mpa)	1.0	1.0	1.0	1.2
Max Working Pressure(Mpa)	1.2	1.2	1.2	1.6
Flange Connection(mm)	DN80	DN80	DN80	DN80
Water Jetting Range(m)	48	50	60	65
Horizontal Angle (Degree)	0-360	0-360	0-360	0-360
Max Angle of Elevation (Degree)	70	70	70	70
Max Angle of Depression (Degree)	-70	-70	-70	-70

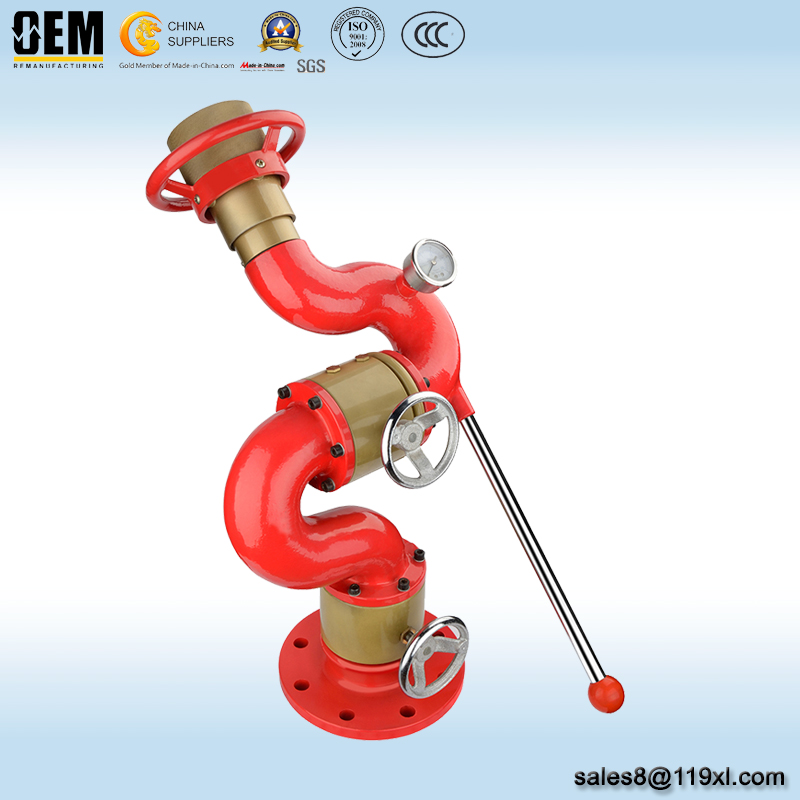

3. Photoes
