| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Voltage: | 380V |
| Brand Name: | RC |
| Type: | Gravity separator |
| Condition: | New |
| Warranty: | 1 years |
| Certification: | ASME |
| Dimension(L*W*H): | 7.6* 2.2 *2.4 m |
| Weight: | 12.5t |
| Power(W): | 450-700kw |
| Model Number: | RCM06V |
| Place of Origin: | China (Mainland) |
| Product Type: | |

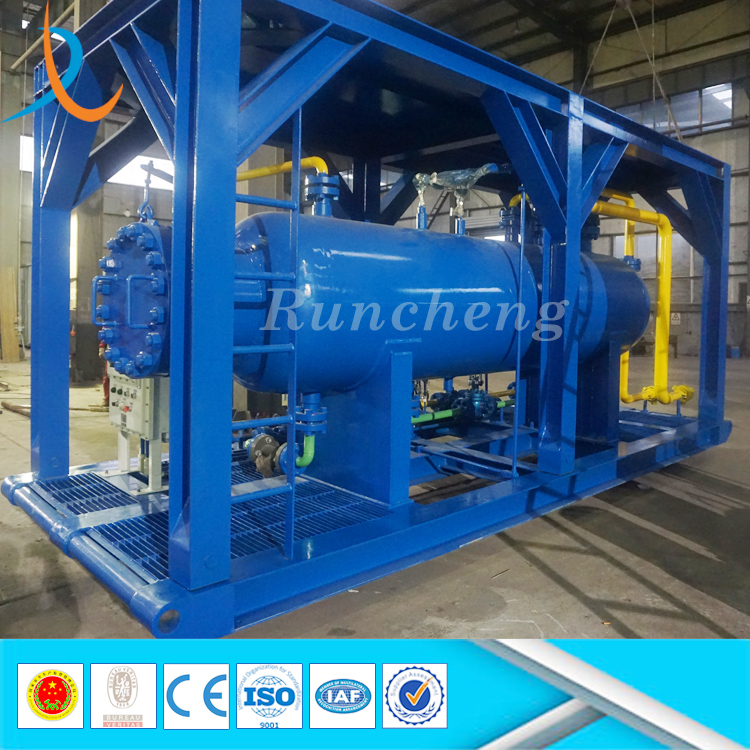

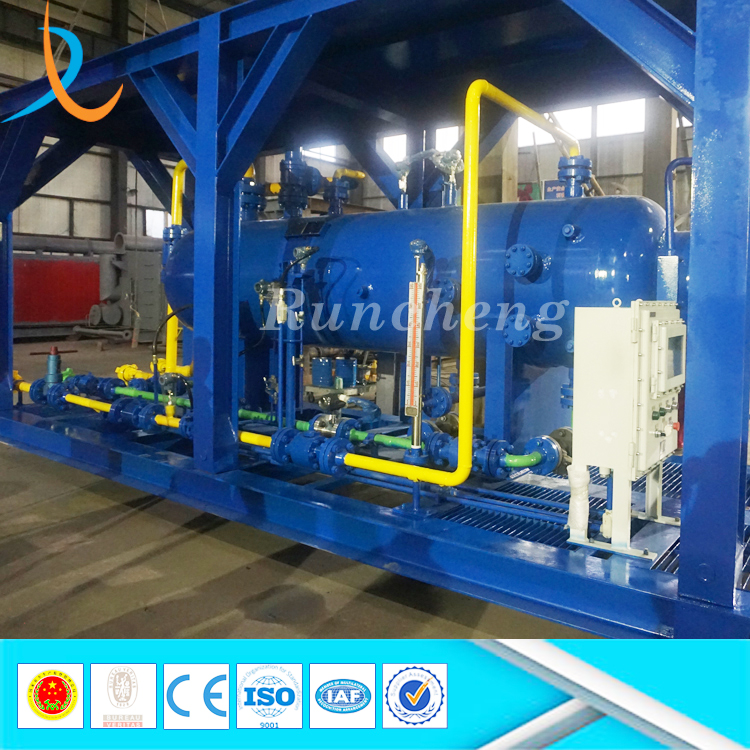

| Product name: | China manufacturer three-phase gravity oil gas water filter separator / gas well testing 3-phase separator |
| Company type: | Manufacturer |
| Company experience: | 13 years |
| Dimension: | 7.6* 2.2 *2.4 m |
| NG Treated Amount(x104 NM3/d): | 30 |
| Fluid Treated Amount(xM3/d): | 100 |
| Design pressure max: | 9.8MPa(1400psi) |
| Weight: | 12.5t |
| Structure style: | integral |
| Certification: | ASME |
Quick Details
Specifications
the following example is for you reference.
1.Brief Introduction:
THree phase separator Is a special equipment for oil and gas well testing and gathering pretreatment. Oil gas water separator is mainly used for wellhead products of oil-gas-water separation and accurate measurement.
2.Techincal parameters:
Model RCM06V Description China manufacturer three-phase gravity oil gas water filter separator / gas well testing 3-phase separator Dimension 7.62.22.4m Total Weight 12.5t Monitoring mode IPC control Gas processing capacity 50 (104 N m/day) Liquid processing capacity 150(m/day) Design pressure max 9.8MPa(1400psi) Design temperature max 80 Liquid process capacity 300m/d Inlet pressure 32.0MPa(4640psi) Inlet temperature 10(50F) Processing medium Crude oil, water, associated gas mixture Rupture disk set pressure 9.4MPa(1363psi) Gas flow measure precision 1% Liquid content in gas 13mg/Nm Oil content in water 180mg/L Water content in oil 0.5% Gas-Oil Ratio >150
3.Performance features:
Features of China manufacturer three-phase gravity oil gas water filter separator / gas well testing 3-phase separator as below:
Accurate, safe separation and measurement of oil,gas and water from well effluent.
Uninterrupted operation from begginning to end.
High automation and high measurement precision.
Electronic data acquisition, accurate data details.
Double safety devices:rupture disk and spring safety valve.
the parameters alarms by sound and light
Automatically generate reports
