Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Voltage: 380V
Brand Name: RC
Type: Gravity separator
Condition: New
Warranty: 1 years
Certification: ASME
Dimension(L*W*H): 7.6* 2.2 *2.4 m
Weight: 12.5t
Power(W): 450-700kw
Model Number: RCM06V
Place of Origin: China (Mainland)
Product Type:

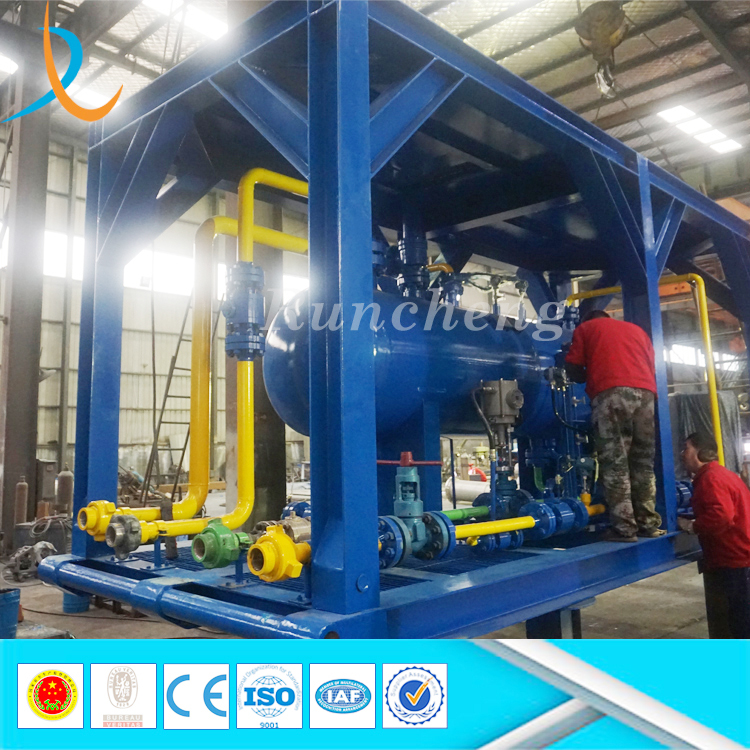

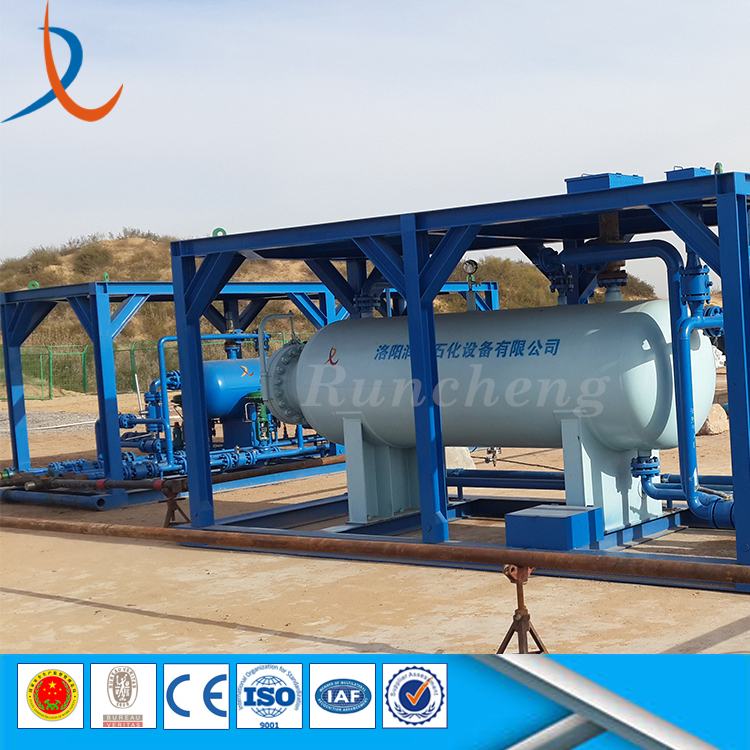

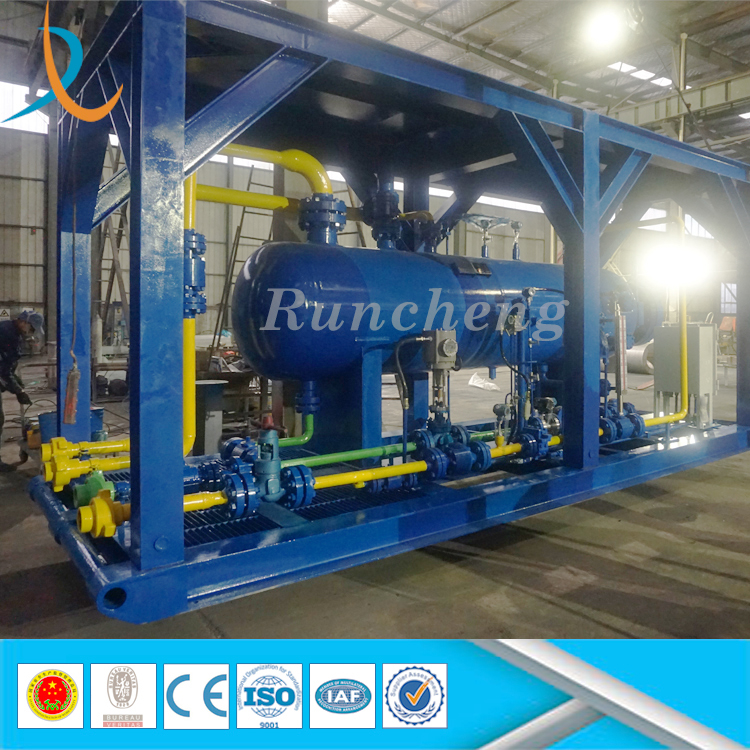

Product name: High handing capacity gas oil water well test gas liquid separator / api three phase separator
Company type: Manufacturer
Company experience: 13 years
Dimension: 7.6* 2.2 *2.4 m
NG Treated Amount(x104 NM3/d): 30
Fluid Treated Amount(xM3/d): 100
Design pressure max: 9.8MPa(1400psi)
Weight: 12.5t
Structure style: integral
Certification: ISO9001

Specifications

the following example is for you reference.


1.Brief Introduction:

  Three phase separator Is a special equipment for oil and gas well testing and gathering pretreatment. Oil gas water separator is mainly used for wellhead products of oil-gas-water separation and accurate measurement.
High handing capacity gas oil water well test gas liquid separator api three phase separator



2.Techincal parameters:

Model

RCM06V

Description

High handing capacity gas oil water well test gas liquid separator / api three phase separator

Dimension

7.62.22.4m

Total Weight

12.5t

Monitoring mode

IPC control

Gas processing capacity

50 (104 N m/day)

Liquid processing capacity

150(m/day)

Design pressure max

9.8MPa(1400psi)

Design temperature max

 80

Liquid process capacity

300m/d

Inlet pressure

32.0MPa(4640psi)

Inlet temperature

10(50F)

Processing medium

Crude oil, water, associated gas mixture

Rupture disk set pressure

9.4MPa(1363psi)

Gas flow measure precision

1%

Liquid content in gas

 13mg/Nm

Oil content in water

180mg/L

Water content in oil

 0.5%

Gas-Oil Ratio

 >150


  High handing capacity gas oil water well test gas liquid separator api three phase separator



3.Performance features:

Features of high handing capacity gas oil water well test gas liquid separator / api three phase separator as below:

Accurate, safe separation and measurement of oil,gas and water from well effluent.

 Uninterrupted operation from begginning to end.

 High automation and high measurement precision.

 Electronic data acquisition, accurate data details.

 Double safety devices:rupture disk and spring safety valve.

 the parameters alarms by sound and light

 Automatically generate reports
