| Gender: | Male&Female |
|---|---|

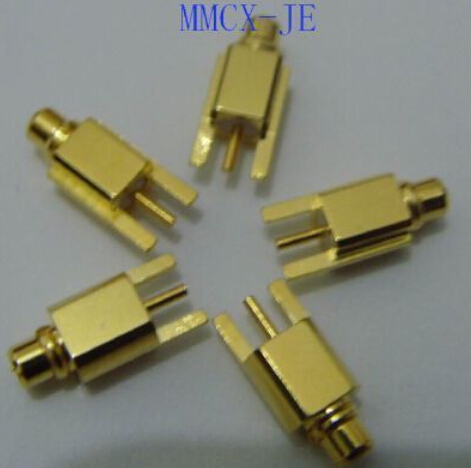

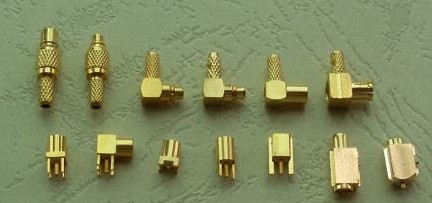

| Type: | MMCX |
| Brand Name: | ROHO |
| Color: | Brass,Ni,Gold |
| Model Number: | SMA Coaxial Connectors |
| Place of Origin: | China (Mainland) |
| Impedance: | 50 ohm |
| Frequency range (for connector interface): | DC-18GHz |
Quick Details
Specifications
ELECTRICAL DATA |
|
Impedance |
50 |
Frequency range |
DC-6GHz |
Dielectric withstanding voltage (at sea level) |
750Vrms,50Hz |
Working voltage |
170Vrms,50Hz (at sea level) / 42Vrms,50Hz (at 21000m/70000ft) |
Insulation resistance |
10000 m |
Contact resistance |
Inner conductor: 5m |
Outer conductor: 1m | |
RF leakage(measured at 1GHZ) |
Flexible: 60dB |
Semi-rigid cable: 70dB | |
MECHANICAL DATA |
|
Engagement force |
25Nm /5.6lbs |
Disengagement force |
8N-20N / 1.8 lbs-4.5lbs |
Contact captivation |
10N / 2.3 lbs |
Durability (matings) |
500 |
ENVIRONMENTAL DATA |
|
Temperature range |
-55C to +155C |
MATERIAL DATA |
|
Bodies |
Brass--Au plated |
Pin contacts |
Brass--Au plating |
Socket contacts |
Coppper beryllium alloy / Phosphor bronze--Au plating |
Crimp ferrules |
Brass--Au plating |
Insulator |
PTFE |
