Application:

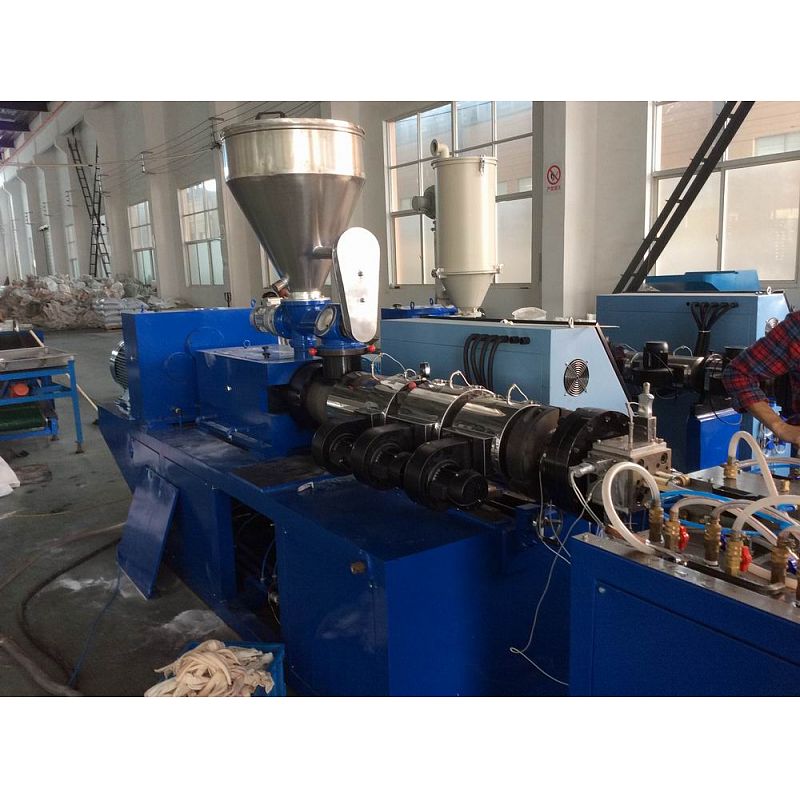

1.SJSZ series of conical twin-screw extruder is used for extrude PVC powder to become plastic pipe, profile, plate and etc when change different mould, screw and auxiliary equipments.
2.It includes screw, barrel, gear transmission system, heating, cooling and electric control and etc.
3.the screw has applied oil cooling system. Bareel is cooled by special wind cooling system.

4.Vacuum exhausting and material feeding device is fixed with machine.

Model	SJSZ51/105	SJSZ55/100	SJSZ65/132	SJSZ80/156	SJSZ92/188
Screw diameter(mm)	51/105	55/100	65/132	80/156	92/188
Quantity of screw	2	2	2	2	2
Max. Rotation speed of screw(r/min)	40	38	38	37	36
Effective length of screw(mm)	1200	1200	1440	1800	2500
Main motor power(kw)	18.5	22	37	55	110
Productuion capacity(kg/h)	100	150	250	400	750
Center height(mm)	1000	1000	1000	1100	1200
Dimensions(L*W*H)mm	3360*1290*2127	3620*1050*2157	3715*1520*2450	4750*1550*2460	6725*1550*281
