| Max. Power: | 100W |
|---|---|
| Number of Cells: | 36 |
| Size: | 1190*540*30mm |
| Material: | Monocrystalline Silicon |
| Brand Name: | Future Green |
| Model Number: | Fget100W-M |
| Place of Origin: | China (Mainland) |
| Model name: | Fget100W-M |
| Maximum Power (Wp): | 100W |
| Maximum Power Voltage (V): | 17.5V |
| Maximum Power Current (a): | 5.71A |
| Open Circuit Voltage (V): | 21.24V |
| Short Circuit Current (a): | 6.28A |
| Number of Cells (PCS): | 36 |
| Size of Module (mm): | 1190*540*30mm |
| FF (%): | 74% |
| Type: | Monocrystalline PV Module |
Quick Details
Specifications
Please feel free to contact us:
E-m-ail: cici(at)fget4u(dot)com
We-chat/Sk-ype: 0086 18933918494
Mob-ile/Whats-app: 0086 18933918494
German Quality 100W Mono PV Power Photovoltaic Solar Module

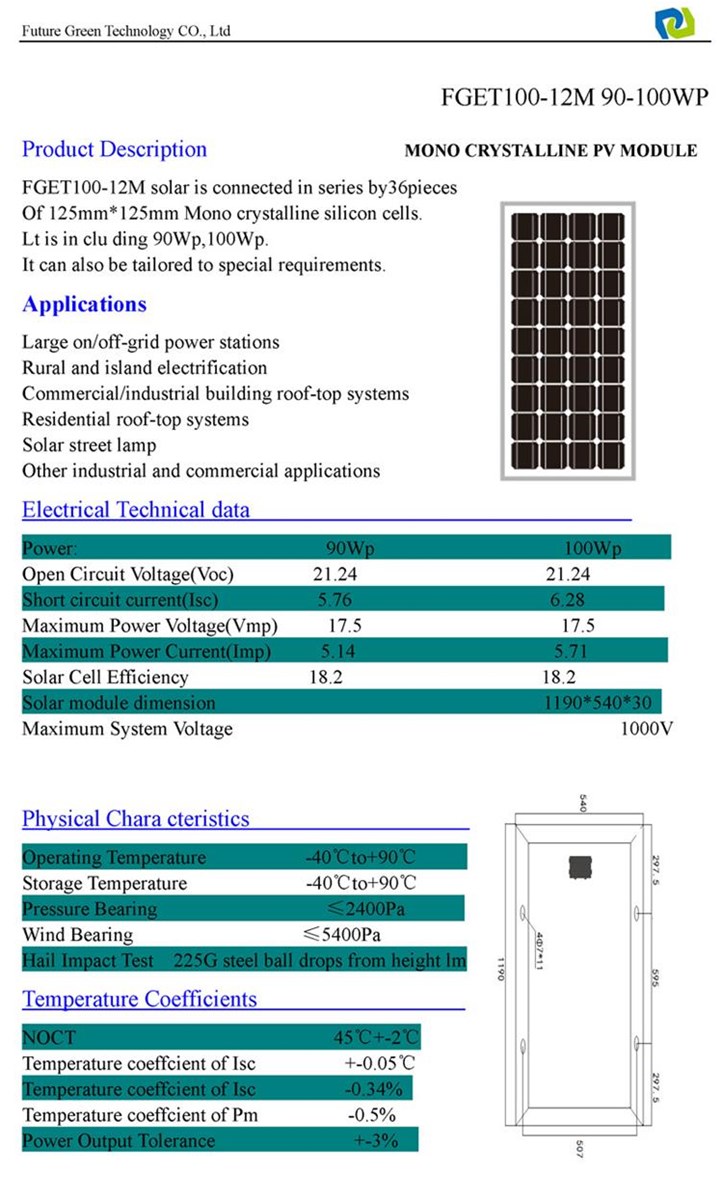

Technical Data Sheet
| Peak Power Pm(W) | Open Circuit Voltage Voc(V) | Short Circuit Current Isc(A) | Maximum Power Voitage Vm (V) | Maximum Power Current Im(A) | Module Size L*W*H(MM) | Outside Carton size L*H*W(MM) | N.W (kg) |
G.W (kg) |
PCS per Carton |
| 18V/5W | 21.24V | 0.32A | 17.5V | 0.29A | 305*187*17 | 335*217*500 | 0.7 | 1.2 | 20 |
| 18V/10W | 21.24V | 0.64A | 17.5V | 0.57A | 330*290*17 | 360*320*270 | 1.2 | 1.8 | 10 |
| 18V/20W | 21.24V | 1.28A | 17.5V | 1.14A | 540*350*25 | 570*380*180 | 2.5 | 3.2 | 5 |
| 18V/25W | 21.24V | 1.60A | 17.5V | 1.43A | 550*450*25 | 580*480*180 | 3 | 3.8 | 5 |
| 18V/30W | 21.24V | 1.92A | 17.5V | 1.71A | 550*450*25 | 580*480*180 | 3 | 3.8 | 5 |
| 18V/35W | 21.24V | 2.24A | 17.5V | 2.00A | 550*500*30 | 565*545*210 | 3.5 | 4.5 | 5 |
| 18V/40W | 21.24V | 2.56A | 17.5V | 2.29A | 550*500*30 | 565*545*210 | 3.5 | 4.5 | 5 |
| 18V/50W | 21.24V | 3.20A | 17.5V | 2.86A | 640*540*30 | 670*570*210 | 4.5 | 5.5 | 5 |
| 18V/60W | 21.24V | 3.84A | 17.5V | 3.43A | 805*535*30 | 835*565*210 | 5.2 | 6.5 | 5 |
| 18V/70W | 21.24V | 4.48A | 17.5V | 4.00A | 1000*515*30 | 1030*545*210 | 6.5 | 7.8 | 5 |
| 18V/80W | 21.24V | 5.12A | 17.5V | 4.57A | 1000*515*30 | 1030*545*210 | 6.5 | 7.8 | 5 |
| 18V/90W | 21.24V | 5.76A | 17.5V | 5.14A | 1190*540*30 | 1220*570*210 | 7.5 | 9 | 5 |
| 18V/100W | 21.24V | 6.40A | 17.5V | 5.71A | 1190*540*30 | 1220*570*210 | 7.5 | 9 | 5 |
| 18V/110W | 21.24V | 7.04A | 17.5V | 6.29A | 1250*670*30 | 1280*700*210 | 10 | 12 | 5 |
| 18V/120W | 21.24V | 7.68A | 17.5V | 6.86A | 1250*670*30 | 1280*700*210 | 10 | 12 | 5 |
| 18V/130W | 21.24V | 8.18A | 17.5V | 7.43A | 1470*670*35 | 1500*705*95 | 12 | 14 | 2 |
| 18V/140W | 21.24V | 8.80A | 17.5V | 8.00A | 1470*670*35 | 1500*705*95 | 12 | 14 | 2 |
| 18V/150W | 21.24V | 9.16A | 17.5V | 8.33A | 1470*670*35 | 1500*705*95 | 12 | 14 | 2 |
| 36V/180W | 42.48V | 5.67A | 35V | 5.15A | 1580*808*35 | 1610*845*95 | 16 | 18 | 2 |
| 36V/200W | 42.48V | 6.28A | 35V | 5.71A | 1580*808*35 | 1610*845*95 | 16 | 18 | 2 |
| 30V/230W | 35.70V | 8.44A | 30V | 7.67A | 1640*992*40 | 1670*1030*110 | 18 | 20 | 2 |
| 30V/240W | 35.70V | 8.80A | 30V | 8.00A | 1640*992*40 | 1670*1030*110 | 18 | 20 | 2 |
| 30V/250W | 35.70V | 9.16A | 30V | 8.33A | 1640*992*40 | 1670*1030*110 | 18 | 20 | 2 |
| 30V/265W | 35.70V | 9.71A | 30V | 8.83A | 1640*992*40 | 1670*1030*110 | 18 | 20 | 2 |
| 36V/280W | 42.48V | 8.80A | 35V | 8.00A | 1940*992*40 | 1970*1030*110 | 23 | 25 | 2 |
| 36V/300W | 42.48V | 9.60A | 35V | 8.57A | 1940*992*40 | 1970*1030*110 | 23 | 25 | 2 |
| 36V/315W | 42.48V | 9.90A | 35V | 9.00A | 1940*992*40 | 1970*1030*110 | 23 | 25 | 2 |

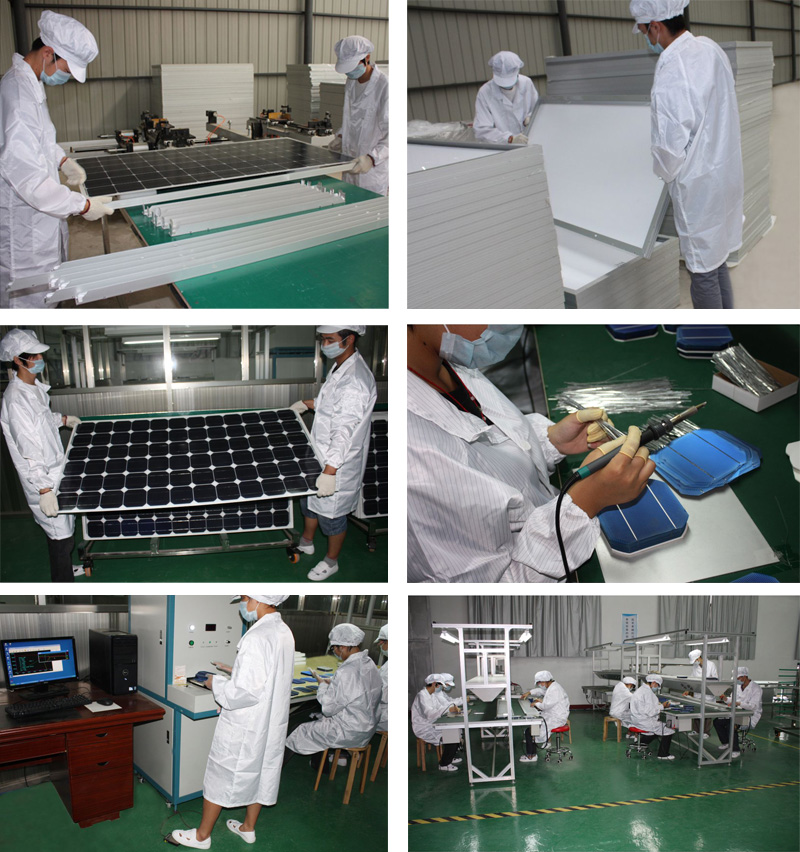

Factory Show
Assembly Line
Our Advantage
Payment Terms
| Payment Terms | T/T | EXW | 30% T/T in advance, paid the balance before shipment |
| FOB | |||
| CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | ||
| CIF | |||
| L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||
| West Union | Amount lower than 5000usd | ||
| Paypal | |||
| Delivery time | 15 working days after receiving payment for one container | ||
FAQ
Q1: how to choose a right Panel?
A1:Tell us your demand, then our sales will recommend a suitable panel to you.
Q2: What's the different between Mono and Poly panel?
A2: I Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and cost less. The amount of waste silicon is less compared to monocrystalline.
Q3: how about the delivery time?
A3: 7 days for sample; 15 days for bulk order.
Q4: What is the warranty of solar panel?
A4: 25 years warranty on FGET-Solar product.
Q5: how to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
