| Brand Name: | Zmtel |
|---|---|
| Frequency: | 3.5Ghz/3.7Ghz |
| Frequency Range: | 3400Mhz-3800Mhz |
| Polarization: | Omnidirectional |
| Weight: | 270g |
| Model Number: | CN8942 |
| Place of Origin: | China (Mainland) |
| LTE chipset: | GCT |
| LTE standard: | 3GPP Release 10/11 CAT6 |
| CA: | Inter/Intra 2CA |
| LTE Antenna Gain: | 7dBi |
Quick Details
Specifications

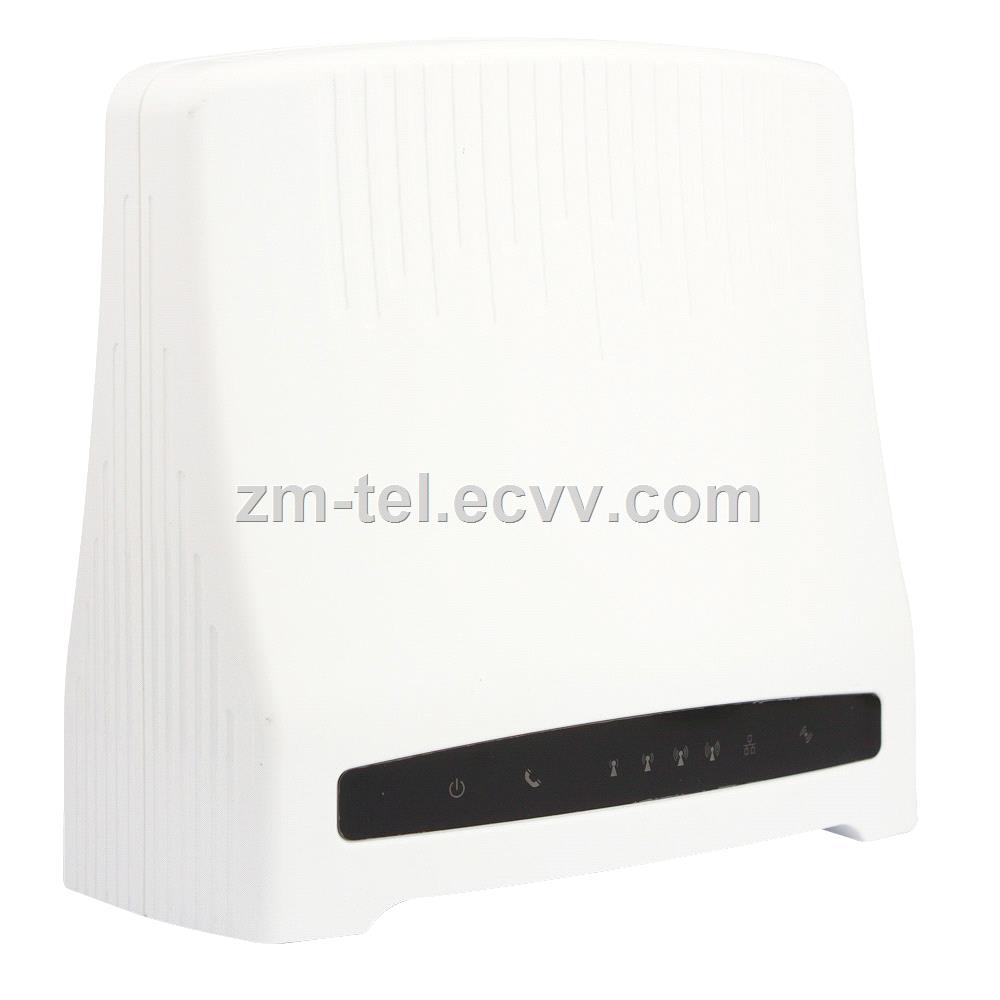

Cat6 LTE UE B42/B43 3.5Ghz/3.7Ghz CN8942 multiband 4G modem 4x4 mimo with high gain antenna
CN8942 is a competitive indoor CPE, with built-in antenna and SIM card slot, and LTE modules both TDD and FDD, or multi-mode wireless access with various of modules, support 4x4 mimo and Inter/Intra CA
CN8942 is a competitive indoor CPE, with built-in antenna and SIM card slot, and LTE modules both TDD and FDD, or multi-mode wireless access with various of modules, support 4x4 mimo and Inter/Intra CA
Spec |
Description | |
LTE chip set |
GCT GDM7243QT | |
LTE standard |
3GPP Release 10/11 CAT6 | |
Flash |
256MB | |
RAM |
128MB | |
WiFi |
2.4GHz, 802.11b/g/n | |
WiFi User |
32 | |
Network Management |
TR069/SNMP | |
Ethernet LAN Port |
Gigabit RJ45LAN Port 10/100/1000 auto-sensing | |
LED |
Power/WiFi/WPS/WAN/Signal Strength | |
USIM |
Support 1.8V/3.0V | |
Reset/Reboot Button |
||
WPS Button |
Tact switch | |
Antenna |
4 Built-in | |
Power Supply |
12V/1.0A DC | |
Feature |
Capability | |
Support Bands |
Band42/43 + multiband: FDD band:7 TDD band: 38/40/41/42/43/48 | |
CA |
Inter/Intra 2CA | |
MIMO |
DL 2*2,DL 4*4 | |
Tx |
1 Tx, 2 Tx, | |
Output Power@25 |
232 dBm | |
LTE Antenna |
4Built-in | |
LTE Antenna Gain |
B8/12/28 |
3dBi |
B1/2/3/7/38/39/40/41 |
4dBi | |
B42/43/48 |
7dBi | |
Wi-Fi Frequency |
2.4GHz | |
Wi-Fi Antenna |
2*2 MIMO | |
Wi-Fi Channel BW |
20 MHz & 40 MHz | |
Wi-Fi Antenna Gain |
3dBi | |
CPE dimension |
154x164x83mm | |
Weigh |
270g | |
