| Width: | 273mm |
|---|---|
| Material: | Metal |
| Type: | Filter Cylinder |
| Usage: | Liquid Filter |
| Brand Name: | OASIS |
| Length: | as the order |
| Thickness: | as the order |
| Filter Rating: | as the order |
| Hole Shape: | Round |
| Model Number: | OA-W273 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Company Introduction
Oasis
Oil Tools Co.,LTD, located in the industrial park of high-tech
Enterprises in Fengquan District, Xinxiang City, covers more than 20000
Square meters with total RMB 15 million investment. Oasis now has more
Than 150 staff, among them 6 persons are senior engineer. since founded,
OASIS always adhere to the "development on innovation, development on
Efficiency and treat customers with honesty" business philosophy. after
Many years' efforts, now OASIS has developed into a famous manufacturer
Which integrates the research and development, design, manufacture and
Sell water well screens/johnson screens, oil well screens and sand
Control well screens, bridge slotted well screens, pipe based well
Screens, perforated pipe (base pipe), gravel pre-packed well screens,
Wedge wire screens, passive water intake screens etc. Water, oil and
Gas well filtering products as well steel tubes and pipes and industrial
Parts.
Technical Specification of Johnson type water well screens
1. Slot size(mm): 0.1~3mm
2. Open area: up to 60%
3. Material: low carbon, low carbon galvanized steel (LCG) steel treated with anticorrosion coating, stainless steel (304, 316L etc)
4. Unit Length up to 6 meters
5. Diameter: ranging from 25 to 1500mm
6. End connection: plain beveled ends for butt welding or threaded coupling or flange

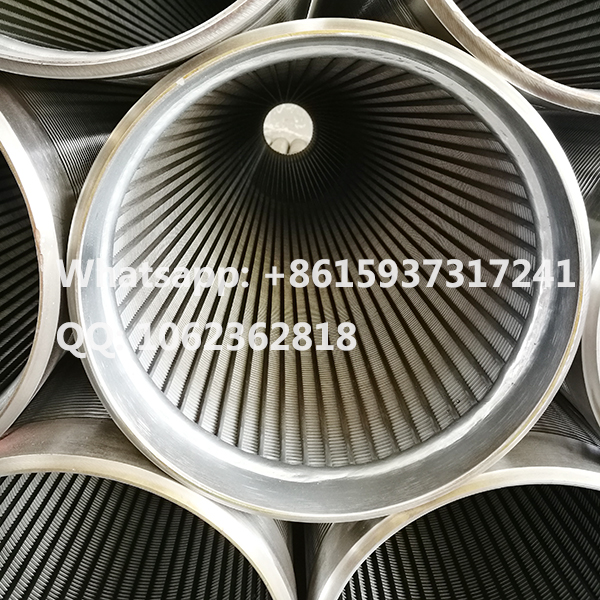

APT STC thread end wire wrapped continuous slot Johnson water well screens pipe
Water well screensIs Manufactured by a v or wedge shaped wire around an internal array of Longitudinal Supportrods. Each intersecting point of these wire is fusion welded.The v or wedge shaped profile
Wire wraps around the support rods over the full length of the screen creating a continuous slot opening,
Hence the screen allows water (oil) to enter your well freely in ample quantities,
while at the same time keeps the majority of sand and gravel out of the well.
Our Factory:
Certificates:

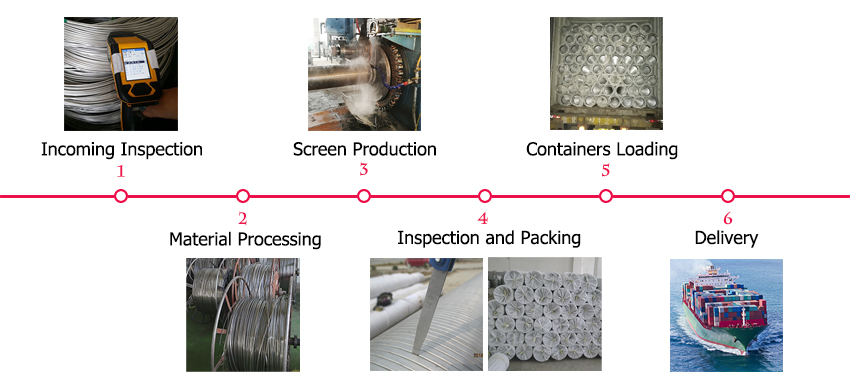

Production Process of Johnson Type Water Well Screens
FAQ:
Q: What's the material you are going to deal with, stainless steel or carbon Steel?
A: Usually material SS201, SS304(L),SS316(L) and duplex stainless steel are used.
Low carbon steel with black paint and galvanized, etc are available.
Q:What's the OD, length?
A: Diameter from 30-1500mm, length from 1-6m.
Q:What's the slot size of Johnson type water well screens?
A: Usually it is depends on your water outlet and gravel size.

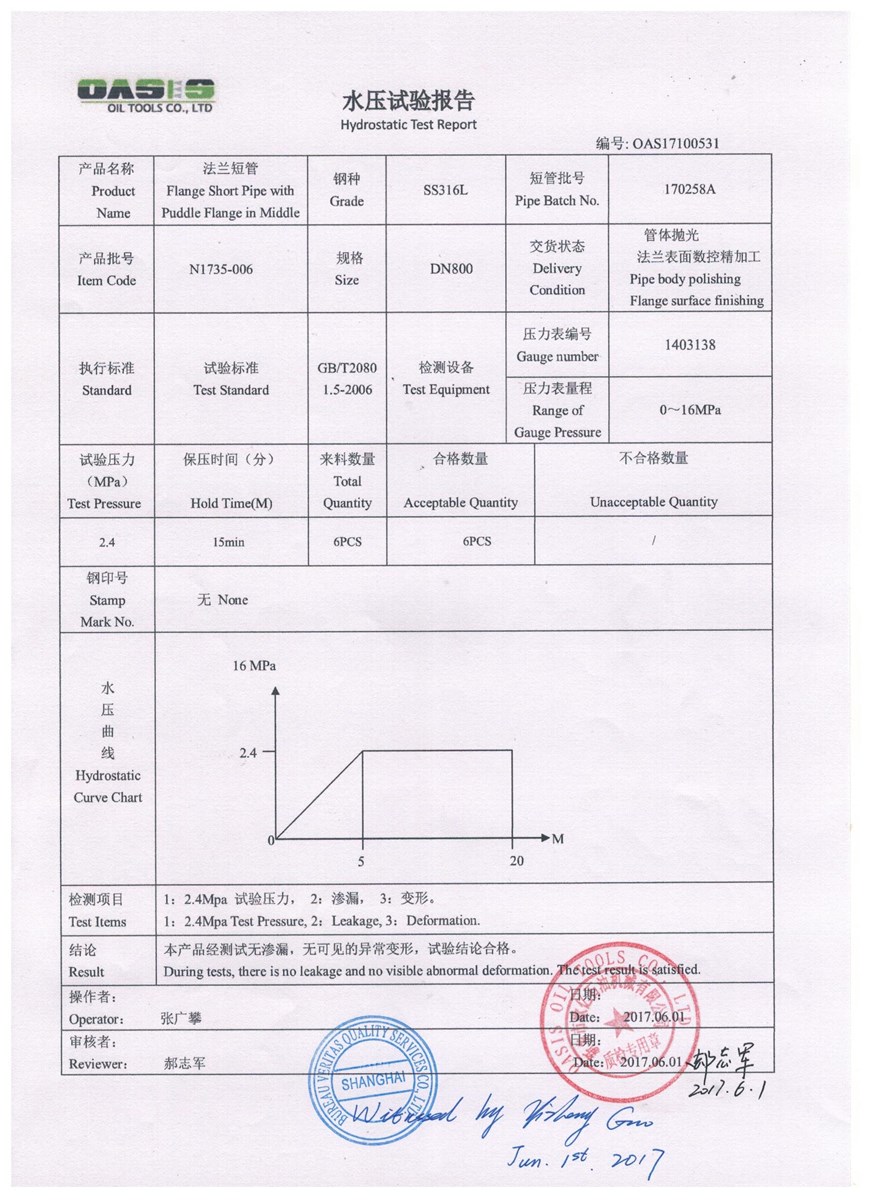

Q:What's the depth of the well or collapse strength of the screen that you need?
Depth of well is suggested to be supplied so that our engineer can calculate the collapse strength for you.the collapse and tensile strength is important for the screens and each screen will be tested before quantity
production.
Q:What's the connection type?
Plain ends with beveled welding ring is the most economical. Besides, clients can also choose thread and flange connection type according to their requirements.
