| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | ISO9001 |
| Brand Name: | Xingyu |
| Automatic Grade: | Automatic |
| Condition: | New |
| Warranty: | 1 year |
| Features: | easy to operate |
| Weight: | 5300kg |
| Dimension(L*W*H): | 3700*1550*1550mm |
| Power(W): | 22kw |
| Voltage: | 380V |
| Model Number: | GLY200-1200 |
| Place of Origin: | China (Mainland) |
| Production Capacity: | 1.1-1.3m/min |
| Application: | building materials machinery |
| Slab thickness: | 200mm |
| Slab width: | 1200mm |
| No. of holes: | 9 |
| Shape of holes: | Peach |
| No. of wire: | 10 |
| Wire diameter: | 9.5or12.7mm |
| Max span: | 10m |
| Max loading bearing capacity: | 13.22KN/m2 |
| Moulding speed: | 1.1-1.3m/min |
| Total power: | 22kw |
Quick Details
Specifications
1.Brief Introduction:

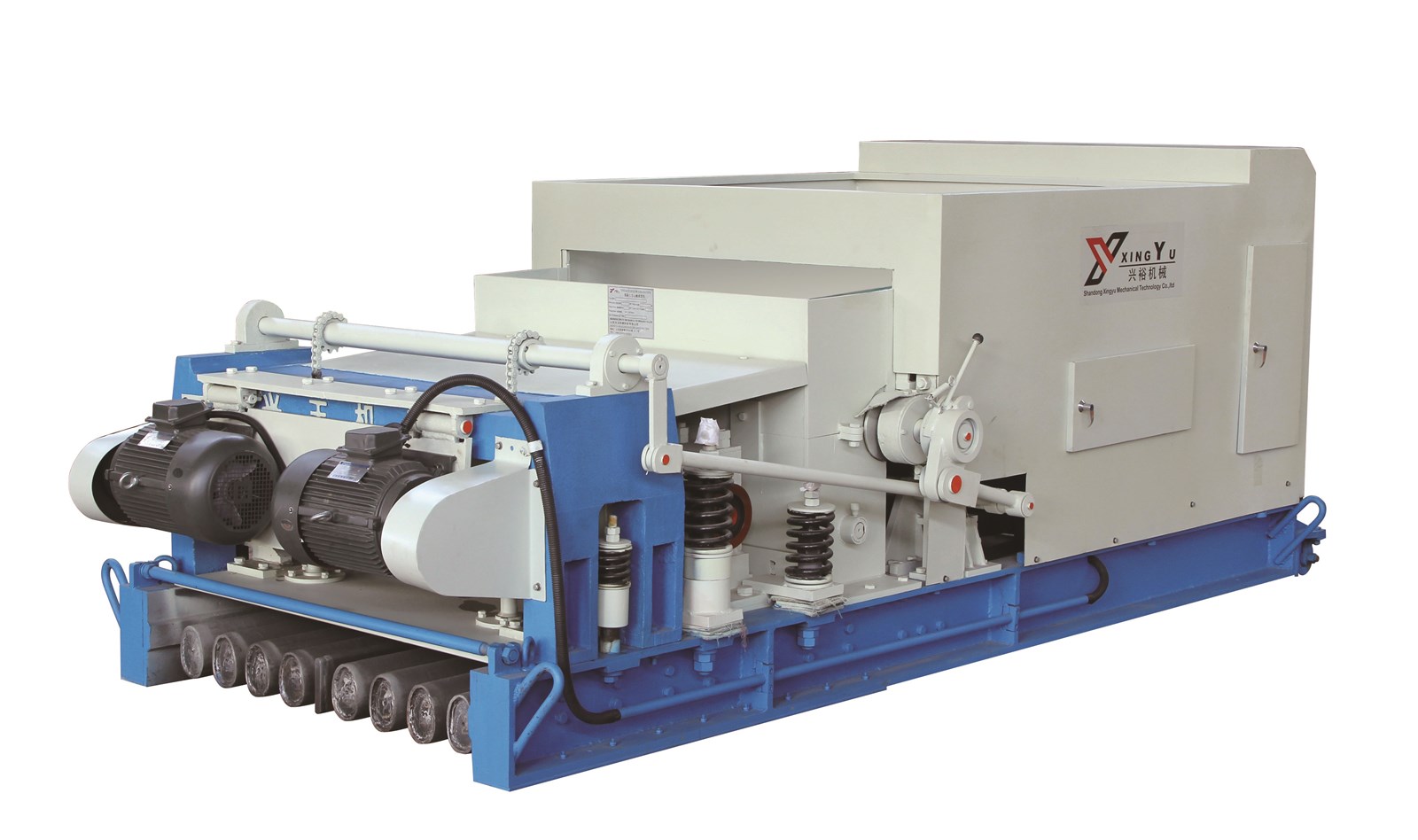

GLY series large-span prestressed concrete hollow core slab machine

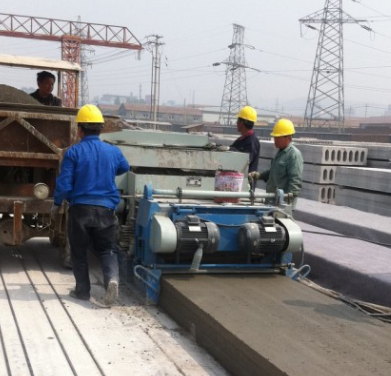

GLY series large-span prestressed concrete hollow core slab machine works on the long-line table,using the high-strength low-relaxation steel strand as the guide,using the pushing work method to form the concrete hollow core slab,the slab have the advantage of smooth surface,high-density structure.Capable of making construction slabs of 4.2m to 18m,the GLY series concrete hollow core slab mainly used on the larger bay workshop,school,hospital,shopping mall,office building,bulk storage plant etc.

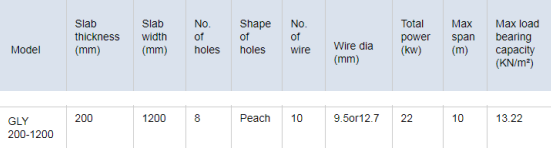

2.Techincal parameters:
3.Performance features:
1) One machine can make one slab,low investment
2) Smooth surface,high-density structure
3) Simple structure,easy operate
4) Long working life with few wearing parts
5) the slab length can be 4.2m to 18m
