| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | ISO9001 |
| Brand Name: | Xingyu |
| Automatic Grade: | Automatic |
| Condition: | New |
| Warranty: | 1 year |
| Features: | easy to operate |
| Weight: | 1300kg |
| Dimension(L*W*H): | 2250*950*820mm |
| Power(W): | 8.5kw |
| Voltage: | 380V |
| Model Number: | ZB120-600 |
| Place of Origin: | China (Mainland) |
| Production Capacity: | 1.3-1.5m/min |
| Application: | building materials machinery |

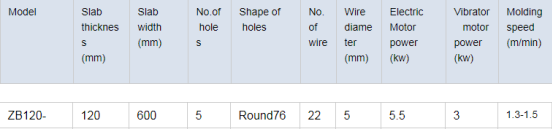

| Slab thickness: | 120mm |
| Slab width: | 600mm |
| No. of holes: | 5 |
| Diameter of holes: | 76mm |
| Electric motor power: | 5.5kw |
| Vibrator motor power: | 3kw |
| Total power: | 8.5kw |
| Moulding speed: | 1.3-1.5m/min |
| No. Of wires: | 22 |
| Wire diameter: | 5mm |
Quick Details
Specifications
1.Production description

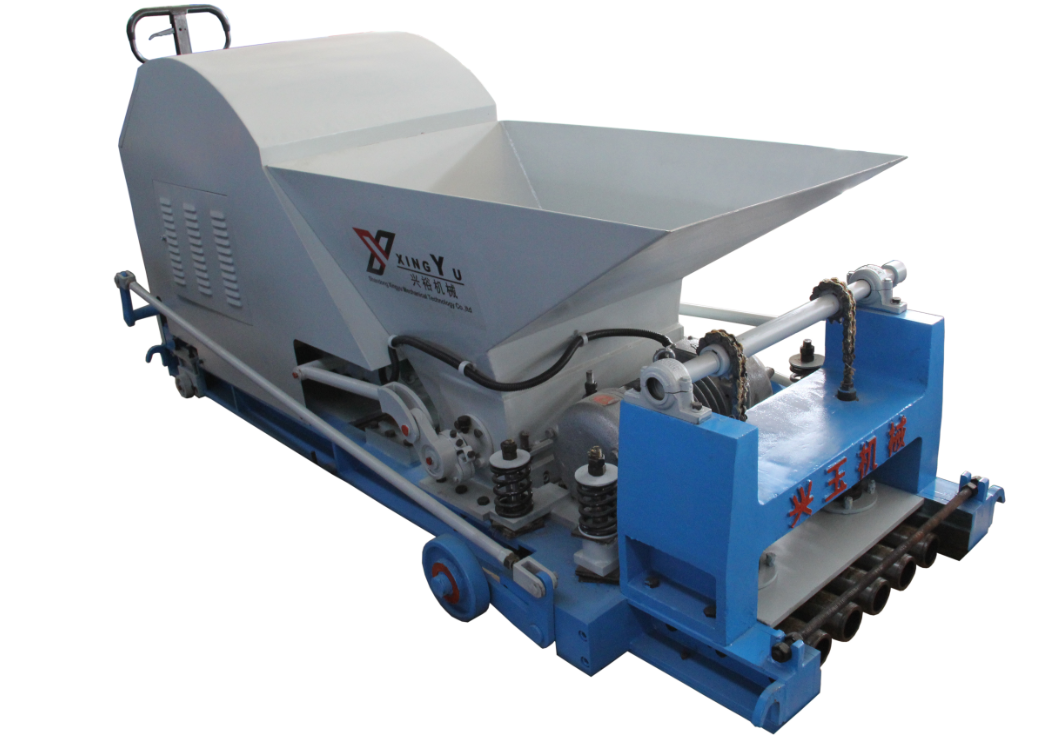

ZB series hollow core slab machine
the ZB series hollow core slab machine is designed reasonable in structure, easy for operation and maintenance, durable with high speed productivity, by which forming slabs are smooth in surface, compact in high intensity. Random cutting for any length (according to standard), flexible combination of the slab can satisfy various kinds of floor construction. this prestressed hollow core slab can simplify the construction framework. It also can reduce the bearing load of walls and beams to increase the usage area and decrease the construction cost.
2.Main features/Advantages
1)One machine can make one slab,low investment
2)Simple structure,easy operate
3)Long working-life with easywear spare parts
4)Smooth surface,high-density structure
