| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 24 months |
| Certification: | CE SGS |
| Brand Name: | DWIN cnc router 6090 |
| Condition: | New |
| Weight: | 260KG |
| Dimension(L*W*H): | 600x900 |
| Power(W): | 2.2KW |
| Voltage: | 220V/110V |
| Model Number: | DW6090 |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
| Application: | Wood acrylic stone metal |
| Milling Cutter Diameter: | 1mmx1mm |
| Feeding Height: | 20cm |
| Main Axle Rotational Speed: | 24000rmp/min |
| Type: | cnc router 6090 |
| Working area: | 600x900mm |
| Spindle power: | 1.5kw/2.2kw/3kw |
| Control system: | NC studio |
| Table: | Aluminum table |
Quick Details
Specifications

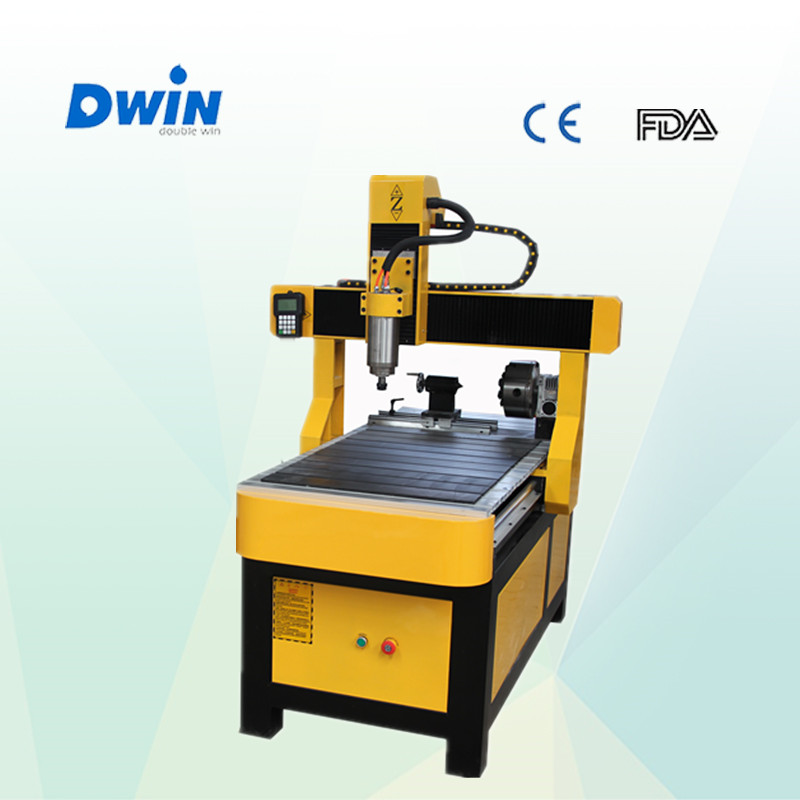

Jinan factory 3D engraving CNC router 6090
CNC Router (DW6090) is mainly for advertisement making, letter cutting, it can also engrave and cut the metal and no metal materals.
Machine Features
1. Heavy body: heavy intergral welding structure, 8-10mm steel gantry ( solid and reliable, no distortion, carrying weight, stability).
2. Taiwan HIWIN square rails, imported ball screw from Germany with high quality helical rack.
3. Two motors drive system for Y axis.
4. Professional vacuum system, strong adsorption capacity.
5. Support different CAD/CAM software: Wentai, Mastercam, Type3, Artcam, Caxa, JD paint, proe/ UG and etc.
6. WEIHONG DSP system, hand controller.
7. Intelligent protection work table to prevent the machine collision with a short point, continued carving off function, to avoid wasting material.
Application:
Woodworking Applications:
Waving board, cabinet door, solid wood door, craft wood door, no-paint door, folding screen, craft window, shoe polisher, game machine cabinet, Ma-jiang Table, computer table and panel type funiture.
Advertising Applications:
Making advertising products made from Brand Board, Acrylic cutting, mould and some other materials processing.
.
Mould Area:
Copper engraving, aluminium and iron engraving, and nonmetallic moulds, like: scagliola, sandstone, plastic board, PVC pipe, wood sheet etc.
Other Applications:
Art and craft fields, embossment, photo engraving and so on.
Specifications:
Model |
DW-6090 CNC router |
X, Y working area |
600mmx900mm |
Z working area |
120mm |
Processing precision |
0.05mm |
Reposition precision |
0.02mm |
Table structure |
Aluminium |
X, Y,Z structure |
Ball screw |
Self-consuming power |
0.6KW |
Max ilding speed |
12000mm/min |
Operation command |
G CODE |
Max working speed |
10000mm/min |
Work voltage |
AC250V/50Hz |
Spindle power |
2.2KW |
Spindle rotating speed |
0-24000rpm/min |
Drive motor |
Stepper |
Software |
Type 3 software, Artcut software, Artcam |
Running circumstance temperature: |
0 - 45 |
Relative humidity |
30% - 75% |
Warranty:2 years for the whole machine
