Application:

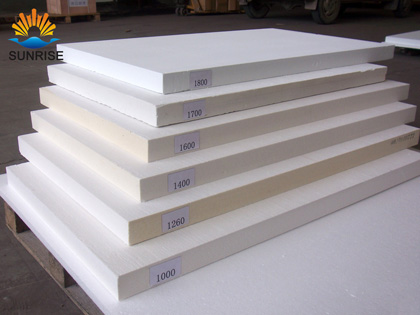

 Ceramic Fiber Board is made of Alumino-Silicate fibrous wool by vacuum forming process.
Furnace with high temperature and high gas flow velocity


 Characteristic:
Fibers are bonded by binder
Low density and low thermal conductivity
Shorter heat up and cool down time
Resilience and resistance to thermal shock
Greater mechanical strength
Can withstand gas flow velocity of 30 m/sec
Even density, thickness
Flexible and easy to cut or install
Asbestos free

 Phyiscal and chemical index:



	1000 Board	1260 Board	1400 Board	1600 Board
Classification temperature ( C)	1000	1260	1425	1600
Bulk density ( Kg/m3)	250	250	200	180
Linear shrinkage (%, C x 24 hrs)	1.3 (900)	1.1 (1100)	1.6 (1200)	1.2 (1400)
Modulus of rupture (kg / cm2)	5	5	5	2
Shot content (>212 micro meter) (%)	18	18
Thermal conductivity Kcal/mh C (W/mK),ASTM C201
	250 kg/m3	250 kg/m3	200kg/m3	180kg/m3
Mean 400 C	0.08	0.09
Mean 600 C	0.13	0.14	0.10	0.12
Mean 800 C	0.20	0.18	0.14	0.16
Mean1000 C			0.20	0.21
Chemical composition (%)
Al2O3	40.1	44	52	58
SiO2	54.3	54	47	41
ZrO2
Cr2O3
Available size ( mm/PC )	900 / 1000*600*6 / 12.5 / 20 / 25 / 30 / 40 / 50; 1100*700*25 / 50
