the slurry tank is used to deliver the Appropriate concentration of the slurry to the on-line equipment, such as the Pulping device, the rectifying device, the weir and the nozzle of the weir Plate. When the slurry is sprayed from the slurry box to the copper network, it Forms a wet paper page and dehydrates the network. Is squeezed, after extrusion with mechanical method by the network department of wet sheet of water, improve the sheet dryness, improve the surface properties of sheet at the same time, Eliminate the mark and increase smoothness, tightness and strength; Then it goes into the roasting cadre to further dehydrate the compressed wet paper, which Causes the paper to contract, and the fiber is tightly coupled and increases the Strength.

Open flow slurry tank technical Requirements: 1. Adapted to the speed of 10-300 - m/min. 2. the finished paper Quantitative: 14-1500 - g/m squared 3. Internet concentration: 0.1 2.5% 4. Net of paper width: 1092-5500 the following paper machine it by slurry, diffusion, Homogenate, sizing of the main parts. Used by ladder form, cloth paste and paste Contact part of the stainless steel 304, body surface grinding and polishing and Slurry interface, mirror polishing, inner wall roughness of 0.4 um, other parts of the 1.6 ~ 0.8 um, contact with pulp part there is no hang pulp phenomenon. Step diffuser is smooth, and plasma interface roughness of 0.4 um, homogenate Roll were made with stainless steel: homogenate roll both internal and external Wall and around fine polishing, has () filtering water spray pipe to eliminate In slurry bubble and avoid hanging pulp, upper lip plate is coarse and fine tune of two sets of equipment, coarse adjustment device can make the whole picture of Upper and lower lip plate adjustment, in order to achieve the copy paper is Quantitative; The adjustment mechanism and spacing make the lip plate opening Along the whole width. to adjust the local banner ration. The device has a fine Micrometer. The slurry box is equipped with vertical, horizontal walking Platform, railings, escalators and so on. Handrail, armrest, platform frame and Bracket adopt shape steel, railing, handrail exterior galvanizing. The vertical Plate is galvanized steel grid plate, the horizontal plate is stainless steel Plate.

Classification: open type flow box, air Cushion type flow box, hydraulic type flow box

Hydraulic flow slurry box adapted to the Speed of 300-750 - m/min, 2640-5500 the following paper machine, pulp pulp cloth from tapered manifold changes in a group of small diameter and ladder by the Flow tube bundle, into the pulp chamber, above the steady impeller has a damping Chamber. It is equipped with air cushion and spray device to remove bubbles and Reduce pressure pulse, and has a overflow outlet, which passes through the Turbulence generator in the stable chamber.

Air cushion type flow box

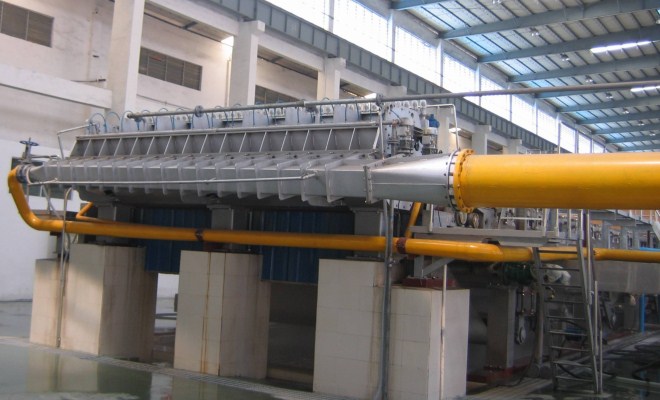

the air cushion type slurry box is Composed of a taper pipe device, a homogenous roller device, upper lip plate Adjusting device, box body, control system, spray device, gas road system and so on.

1. Cone tube device

1) the taper pipe adopts the single - way Header and the three - step orifice slurry. the pyramidal tube is composed of a Large circumference tube, a cone tube and a small circle. the taper pipe is Equipped with a pressure balancing tube, which can be easily cleaned

2) the taper pipe is stainless steel. both large and small square tubes have matching flanges

3) the panel material is of organic glass

2. Homogenizer roller device

1) the homogenizer roller is composed of the homogenizer roller and the throat homogenizer roller

2) the diameter of the slurry roller is 219, the opening rate of the throat is 41%, and the lip is 46%

3) the homogenized roller is made of the Customized high quality cold-rolled stainless steel and the double helix line

4) a 100-wire needle gear reducer is used in the homogenation roller drive, and the user can set up the frequency Converter, which can be changed according to process requirements between 9-50 RPM
