Main features:

1. the rotary disc is connected with the Spline on the main shaft to ensure the pressure balance of the two grinding Areas;

2. Mechanical seal and reliable sealing

3. Adopt electric, manual feed, Convenient operation

4. the quality of pulping is stable, Uniform and effective

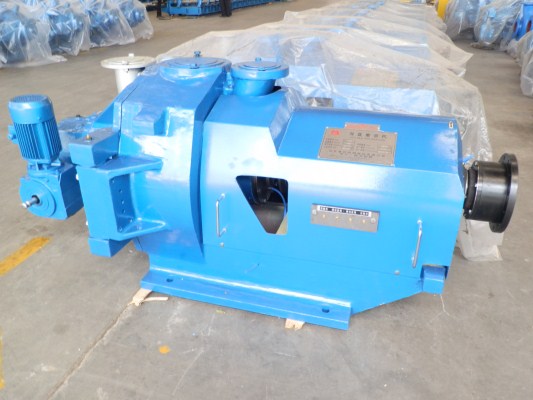

Characteristics: pulping machine consists of grinding chamber, transmission mechanism, base, motor, etc. the grinding Chamber consists of two grinding plates, which are fixed on the casing and the Movable seat, and the two grinding blades mounted on the rotary disk, forming Two grinding zones. the grinding of different tooth shape is used to meet the Pulping requirement of various slurry. the slurry is entered into the grinding Zone by two feeding tubes, through the grinding area under the action of Centrifugal and pulping pressure, and the pulping process is completed by Rubbing and extrusion of the tooth disk in the grinding area.
