Surface Finishing: | Immersion Gold |
---|---|
Board Thickness: | 1.6mm |
Copper Thickness: | 1OZ |
Base Material: | FR4,Poliyimide |
Brand Name: | OLEADING |
Min. Line Spacing: | 5MIL |
Min. Line Width: | 5MIL |
Min. Hole Size: | 0.2MM |
Place of Origin: | China (Mainland) |
Quick Details
Specifications

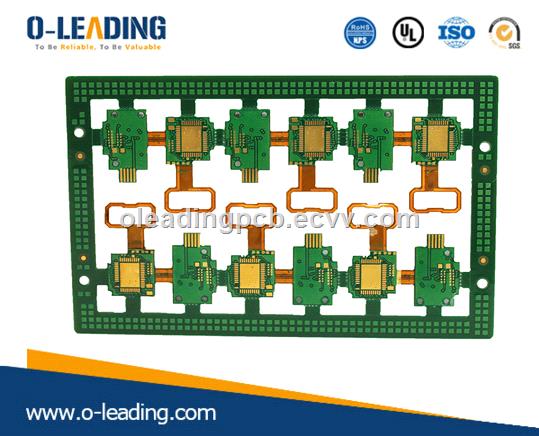

Rohs rigid- flexible PCB circuit board, UL,SGS,ROHS Certificated,Rigid-Flex PCB with Polymide + FR4 material
- 1.PCB P/N:23986542
- 2.Material: FR-4
- 3.Layer: 4L
- 4.Board thk:1.6mm+0.5mm
- 5.Copper thk:35UM
- 6.Smallest hole size:0.2MM
- 7.No. of holes (pcs):781
- 8.Line w/s:5/5mil
- 9.Impedance control. Y / N (Tol %):N
- 10.Surface: Immersion Gold
- 11.Solder Mask Silkscreen:Green
- 12.Single board size:Dim X (mm):256;Dim Y (mm):394
- 13.Special: Rohs rigid- flexible PCB circuit board
- 14.Routing/Punching:CN
O-LEADING SUPPLY CHAIN (HK) CO.,LIMITED strives to be your one stop solution partner of EMS manufacture, including PCB design, PCB fabrication and PCB assembly (PCBA).We providing some of the most advanced PCB technology and convenient services applied in the industry: HDI PCBs, Super long PCBs, Rigid-Flex PCBs, Quick Turn PCBs, medium & mass Production, full turn-key assemblies, In general, our global customers have following impressions of our services: quick response, reasonable price level, top customer perspective, quality commitment.
