the following example is for you reference.


1.Brief Introduction:

  It is suitable for high precision 3D laser processing and so on. It improves the rigidity of robot arm, and improves the flexibility and response of the motor through high-power servo motor, and achieves high speed straight line trajectory precision and High Precision Roundness trajectory.



2.Techincal parameters:
   the maximum load of the mechanical arm with high speed and high trajectory is 50KG, and it can correspond to various laser processing modes in the maximum load range, and the laser oscillator is highly matched.

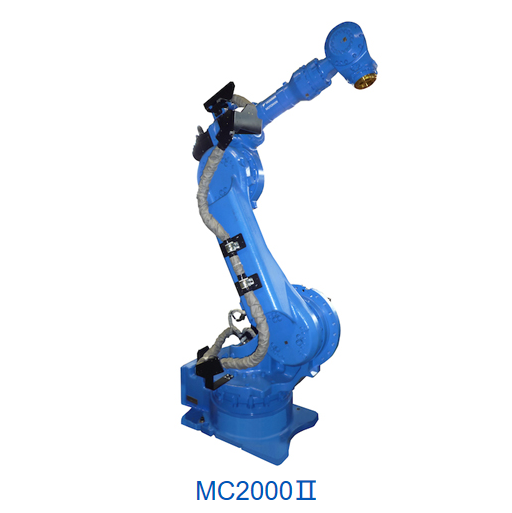

   Robot model:       MC2000 II
  Freedom:            Six
  Horizontal stretch length:           2038mm
  Moving mass:      50kg*4
  Body quality:       845kg
  Repeatability positioning accuracy:           + 0.07mm
   Installation method:           Land style
  Use:      Arc welding, laser processing, handling, etc.



3.Performance features:
    High speed and high trajectory accuracy; the maximum load of the robot arm is 50KG; it can correspond to various laser processing modes in the maximum load range; the height matching of the laser oscillator.
