Type: | Other |
---|---|
After-sales Service Provided: | Engineers available to service machinery overseas |
Certification: | CE, ISO |
Weight: | 30kg |
Voltage: | 110V/220V |
Brand Name: | WDS-700 bga rework station |
Usage: | mobile motherboard ic repairing |
Dimensions: | L450*W470*H650mm |
Rated Duty Cycle: | 100% |
Rated Capacity: | 2500W |
Current: | Dependable |
Model Number: | WDS-700 |
Place of Origin: | China (Mainland) |
PCB size: | Max 140*180mm Min5*5mm |
BGA chip size: | Max: 80*80mm, Min 1*1mm |
Power supply: | AC 110V/220+-10% 50/60Hz |
Electrical material: | High sensitive temperature control module, Touch Screen (Taiwan) |
Positioning way: | V-groove+laser position+universal fixture |
Temperature controlling: | high precision K-sensor |
Usage: | mobile phone ic repairing |
Machine Type: | mobile phone motherboard repair |
Training: | Free training and maintainence |
Quick Details
Specifications
Parameter of WDS-700 mobile bga rework station
Total Power |
5100W |
Upper Heating Power |
1200W |
Lower Heating Power |
Second zone:1200W, Third zone:( IR )2700W |
Power Supply |
AC 220V10V 50/60HZ |
Overall Dimension |
790*780*700mm |
Locating Mode |
V-shape card slot, PCB holder can be adjustable by X and Y axes with universal jigs.Laser light to do fast centering and position |
Temperature Controlling |
K-type thermocouple closed loop control, independent temperature control, Precision up to 3 degree |
PCB Size |
Max 410*370mm, Min 20*20mm |
Thermocouple ports |
1 unit |
Weight of machine |
40KG |
WDS-700 mobile ic repairing tool
Repairing Steps
1) Separate the BGA chip from mother board we call it as desoldering
2) Clean the Pad
3) Reballing or replace a new BGA chip directly
4) Alignment/Positioning Depend on experience,silk frame,optical camera
5) replace a new BGA chip - we called Soldering
6) BGA chips,QFP QFN chip,PC,PLCC PSP PSY rework

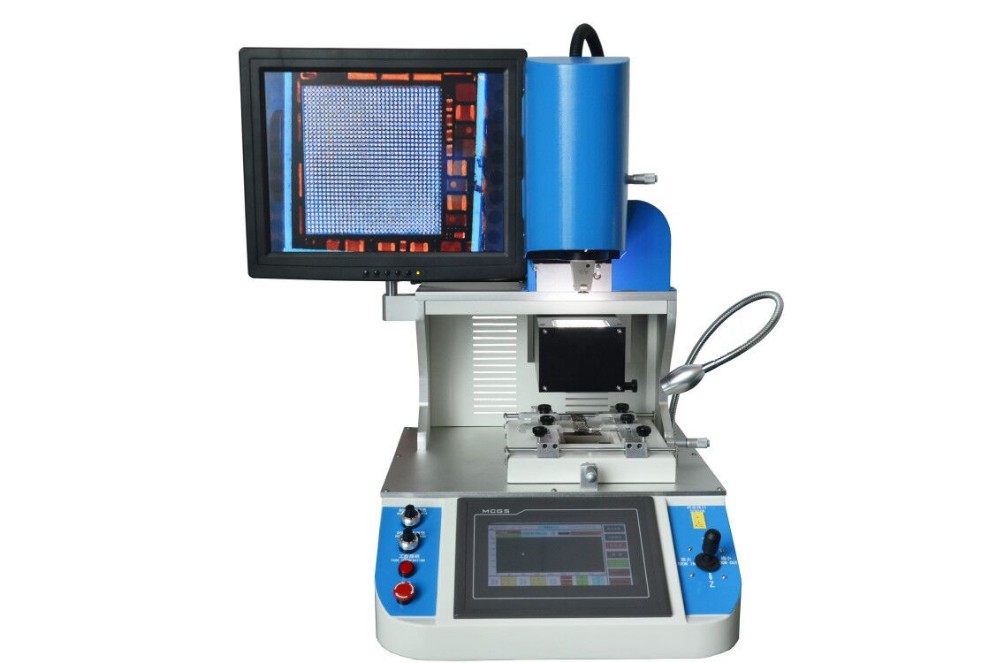

Features of WDS-700 cellphone repairing machine
*****Independent 2 Heating Zones Temperature Control Systems
1) the upper and lower hot air heating,which can heat up at the same time from the top of the component to the bottom of the PCB;temperature precision control within 1.8 segment temperature control independently.
2) Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system;4 temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves can be analysed,set and correct on the touch screen at any time.
*****Precision Optical Alignment System
Using high definition and adjustable CCD color optical alignment system,beam split,amplification,lessening,fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast;equipped with 15'' high definition LCD monitor.
*****Multi-functional and Humanized Operation System
1) Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.
2) X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach 0.01mm. Superior safety protection function with the alarm function, after the BGA welding the machine can alarm by itself. in the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.Temperature parameter having password protection to prevent any modification.
*****Superior Safety Protection Function
with the alarm function, after the BGA welding the machine can alarm by the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.Temperature parameter having password protection to prevent any modification.
