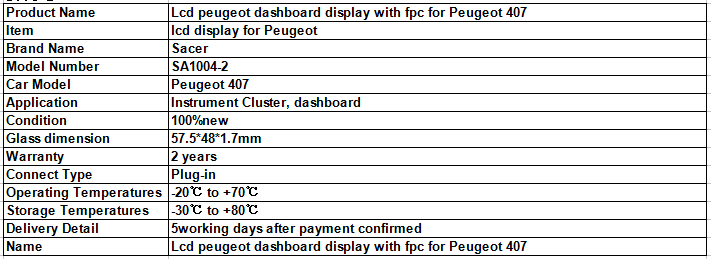

| Type: | STN |
|---|---|
| Brand Name: | sacer |
| Interface Type: | Plug-in |
| Resolution: | Instrument Cluster, dashboard |
| application: | Peugeot 407 |
| Model Number: | SA1004-2 |
| Place of Origin: | China (Mainland) |
| Product name: | peugeot dashboard display |
| Car model: | Peugeot 407 |
| Condition: | 100% Brand New product |
| Warranty: | 2years |
| Application: | Instrument Cluster, dashboard |
| Glass Dimension: | 57.5*48*1.7mm |
| Connect Type: | Plug-in |

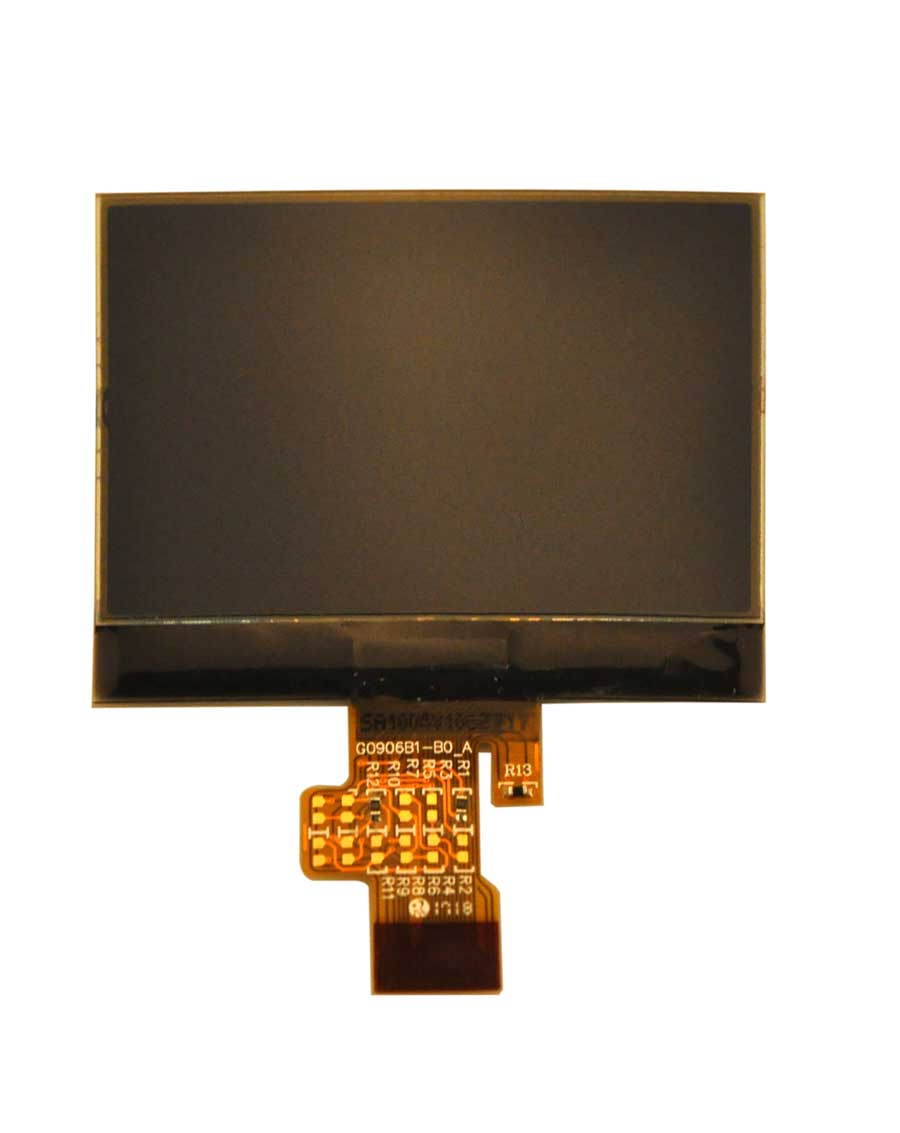

| Name: | Lcd peugeot dashboard display with fpc for Peugeot 407 |
Quick Details
Specifications
Description
1. Same TAB IC driver as OE. Need to clean the PIN from PCB side before soldering.
2. Normal soldering machine with very patient skills would be necessary.
3. If you could remove the OE IC driver from display well for resoldering process, Sacer could provide LCD display with FPC seperately for you.
4. Difference between SA1003-1 & : Same LCD display but different shape of FPC connector, compatible car models are also different.
5. 100% Brand New product and tested prior to leaving the factory.
Advantages
1. Easy soldering operation, even strong enough for resoldering when needed if necessary.
2. Sacer can offer a high quality replacement for a very attractive price.
3. Even in hot summer the contrast is equal to OE. the contrast of Sacer's Audi display will not be affected by the change of temperature ranging from -20 to 70.
4. the black Mara gum on the back of this display can provide better protection for circuit with function of heat insulation.
