| Brand Name: | Aomai |
|---|---|
| Car Make: | 24" |
| Certification: | CE |
| Material: | Metal |
| Type: | Brake Discs |
| Model Number: | AM-983S |
| Place of Origin: | China (Mainland) |
| Size: | 24 inch |
| Warranty: | Years |
| Color: | Yellow |
| installation: | Finished Installtion |
| Working height min/max: | 50/70cm |
| Drive speed: | 98rpm |
| Electrical specifications: | 220v/50Hz 110V/60Hz |
| Turning accuracy: | 0.002-0.005mm |
| Brake disc runout: | 0.00-0.005mm |
| Brake disc thickness variation: | 0.005-0.01mm |
Quick Details
Specifications

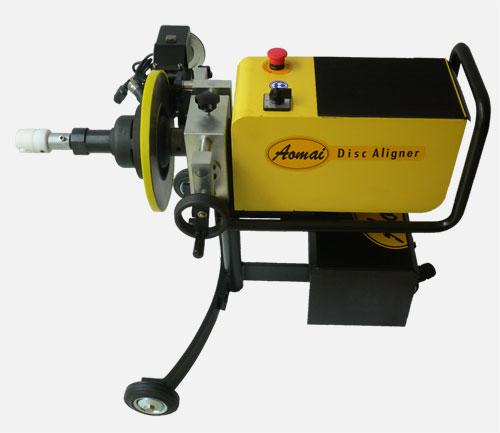

| Product name:Brake lathe need't lifter dual-functions model | ||
| Model AM-983S | ||
| Working height min/max:70cm | ||
| Drive speed:98rpm | ||
| Electrical specifications:220v/50Hz 110V/60Hz | ||
| Ambient temperature range:-25to50c | ||
| Turning accuracy:0.002-0.005mm | ||
| Brake disc runout:0.00-0.005mm | ||
| Brake disc thickness variation:0.005-0.01mm | ||
| Brake disc surface roughness Ra:Ra 1.5-2.0m | ||
| Packing size:86*48*45cm = 0.17cbm,Disc lathe BL718 & accessories 40 91*51*31cm = 0.144cbm | ||
| Weight:120kgs |
