Spiral Classifier Sprial Separator Factory for Mineral Iron Ore dressing



Description

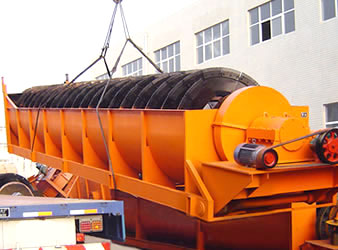

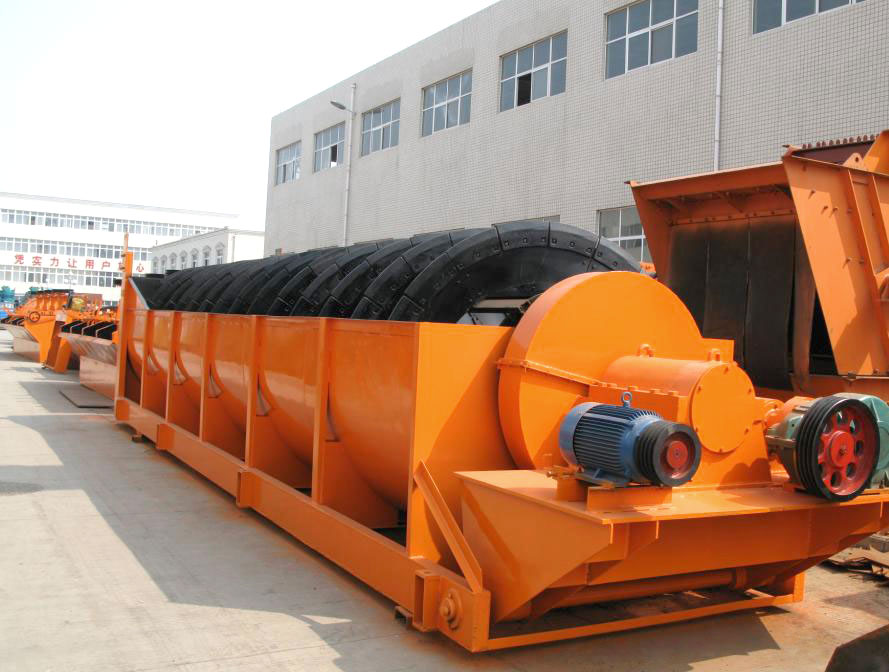

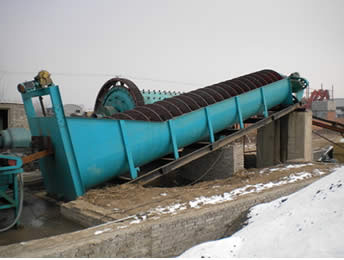

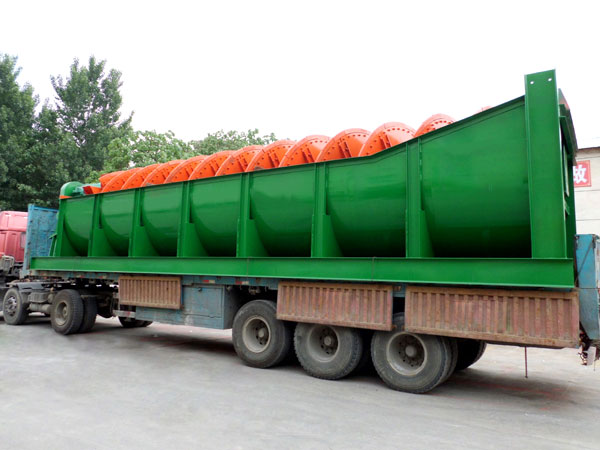

Ore Dressing Spiral classifier is widely used for classification according to the Particle size in the mineral processing flow, and is also applicable for Desliming and dehydrating in the mineral washing work. Generally, Classifier Forms a closed process flow with ball mill. the classifier has the advantages of simple structure, reliable working, and convenient operation, etc.



Features

1. Low power cosumption;

2. Heavy duty, long workinglife;

3. Powerful self-contained spiral lifting device;

4. Continuous spiral raking;

5. High classifying efficiency;

6. Wide choice of weir height;

7. Rigid tank and substructure;

8. Wide choice of tank design;

9. Wide range of industries serviced.



Working Principle

the Ore dressing piral classifier depends on different deposition speed of solid particle Due to their size difference and weight difference. Thin mineral particle can Float in the water and flow out, and the coarse mineral particle will deposit into the bottom of the cell, which is pushed up by screw and discharged. Classifier is a kind of mechanical classifying equipment. Classifier can Filtrate the powdery materials grinded by ball mill, transport the coarse Materials into inlet with screw, and discharge the filtrated fine materials through overflow pipe.



Structure

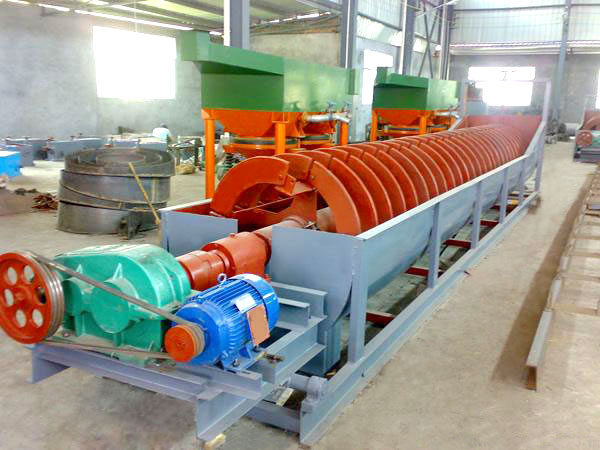

It Mainly consists of transmission device, screw, cell, movable lift, lower seat (bush) and discharge valve. the bottom seat adopts V-iron, and the machine Frame is welded and connected steel board. the water inlet and axis of the Screw axle adopt durable pig iron cover.



Specifications

Type	Standard	Spiral dia. (mm)	Sink			Overflow high(mm)	Output(t/24h)		Dimension          (mm)	Weight(t)	Motor
			Length (mm)	Width(mm)	Slop angle()		Overflow	Casting			Upgrade	Transmission
FG07	750	750	5500	850	14~10.5	350	70	260-580	666111101565	2.4	-	3kW
FG09	900	900	6500	1012		500	85	470-560	80041470 2340	3.8	1.5Kw	5.5Kw
FG12	1200	1200	8600	1380		292	155	1170-1630	98001570 3130	9.68	1.5Kw	7.5Kw
FC12	1200	1200	8600	1380		1000	120	1170-1630	98001570 3830	10.9	1.5Kw	7.5Kw
FG15	1500	1500	8650	1750	14~18.5	512	235	1140-2740	108992086 3685	14.5	2.2Kw	15Kw
FC15	1500	1500	9650	1750		1350	185	1140-2740	1189920864685	16.4	2.2Kw	15Kw
FG20	2000	2000	9650	2150		600	400	3890-5940	1109023704486	21.6	2.2Kw	15Kw
FC20	2000	2000	11000	2150		1650	350	3890-5940	1109023705286	25.9	2.2Kw	15Kw
2FG15	1500	1500	8650	3250		512	400	3890-5940	108993392 3685	26.9	22.2Kw	215Kw
2FG20	2000	2000	9650	4050		600	800	7780-11880	110904590 4486	41.2	22.2Kw	215Kw
2FG12	1200	1200	8650	2600	14~10.5	292	210	2340-3200	98002787 3130	17.6	21.5Kw	27.5Kw
