| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Weight: | 6486kg |
| Dimension(L*W*H): | L3*W2.5*H5.7m |
| Brand Name: | RC |
| Condition: | New |
| Capacity: | 16m3 |
| Model Number: | BM16 |
| Place of Origin: | China (Mainland) |

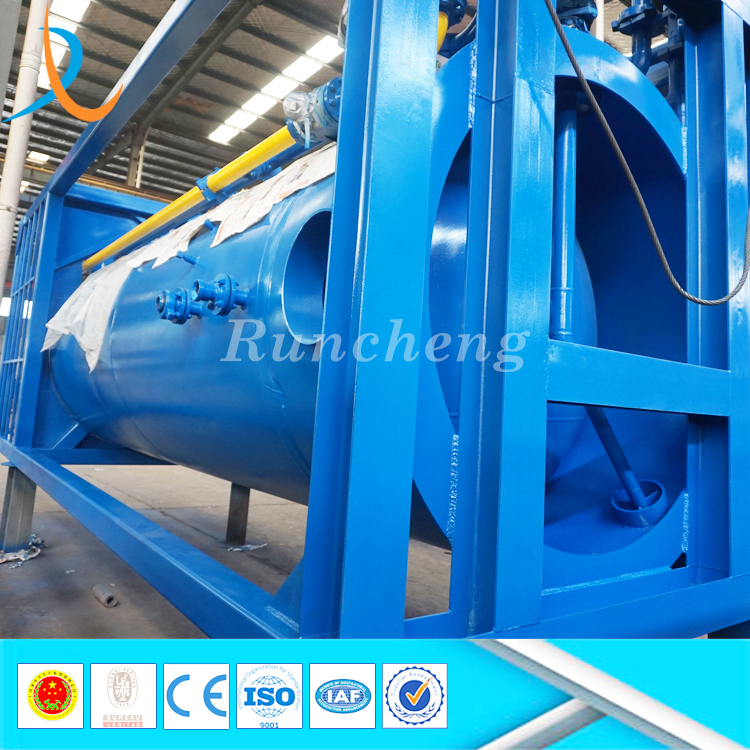

| Item name: | Oilfield shock proof high pressure oil water buffer vessel / skid mounted buffer tank |
| Work pressure: | 50psi |
| Outlet thread type: | 2'' / 4'' fig602 outlet |
| Certification: | ISO, API |
| Capacity: | 2*50bbls |
| Industry experience: | 13 years |
| Company type: | Factory |
| Inlet thread type: | 2'' / 3''fig602 inlet |
| Materal: | Stainless steel |
Quick Details
Specifications
the following example is for you reference.
1.Brief Introduction:
Buffer tank designed to store liquid hydrocarbons after separation. It is used to verify the accuracy of the oil flow gauge of separator, measure oil output, and further proceed separation from the crude oil which is separated from the separator.Meanwhile it can prevent gas gathering to produce H2S.
2.Techincal parameters:
| Total capacity | Work pressure | Work temperature | Inlet and outlet thread type | Weight | Dimension highlengthwide |
| Bbls (M3) | Psi (M3) (bar) | () | Lbs (kg) | Ft (m) | |
| 250 (-16) | -0.2 (-29/38) | 2'' / 3''fig602 inlet 2'' / 4'' fig602 outlet 4'' fig206 t gas outlet 4'' fig 206 release outlet 2'' fig206 relief outlet 2''150#spare top |
14300(-6486) | 14300(-6486) | 18.89.98 (5.732.5) |
3.Performance features:
1.Single or dual compartment
2.Sight glasses or magnetic level indicators
3.High-level and low-level alarm system
4.Automatic pressure-control valve normally open on gas outlets
5.Diverter, vortex breaker, and stiffening rings
6.Bypass manifold allows isolating surge tank from flow process
