Automactic busbar trunking system package systems

Technical parameter and description

1) Material feed-in of roller conveyor: length L = 6m, width W = 0.7m, height H =0.8m (consistent with the assembly line), rack is made of aluminum Siemens deceleration speed motor drives, power 0.75kW, with worm reducer of power: 50.

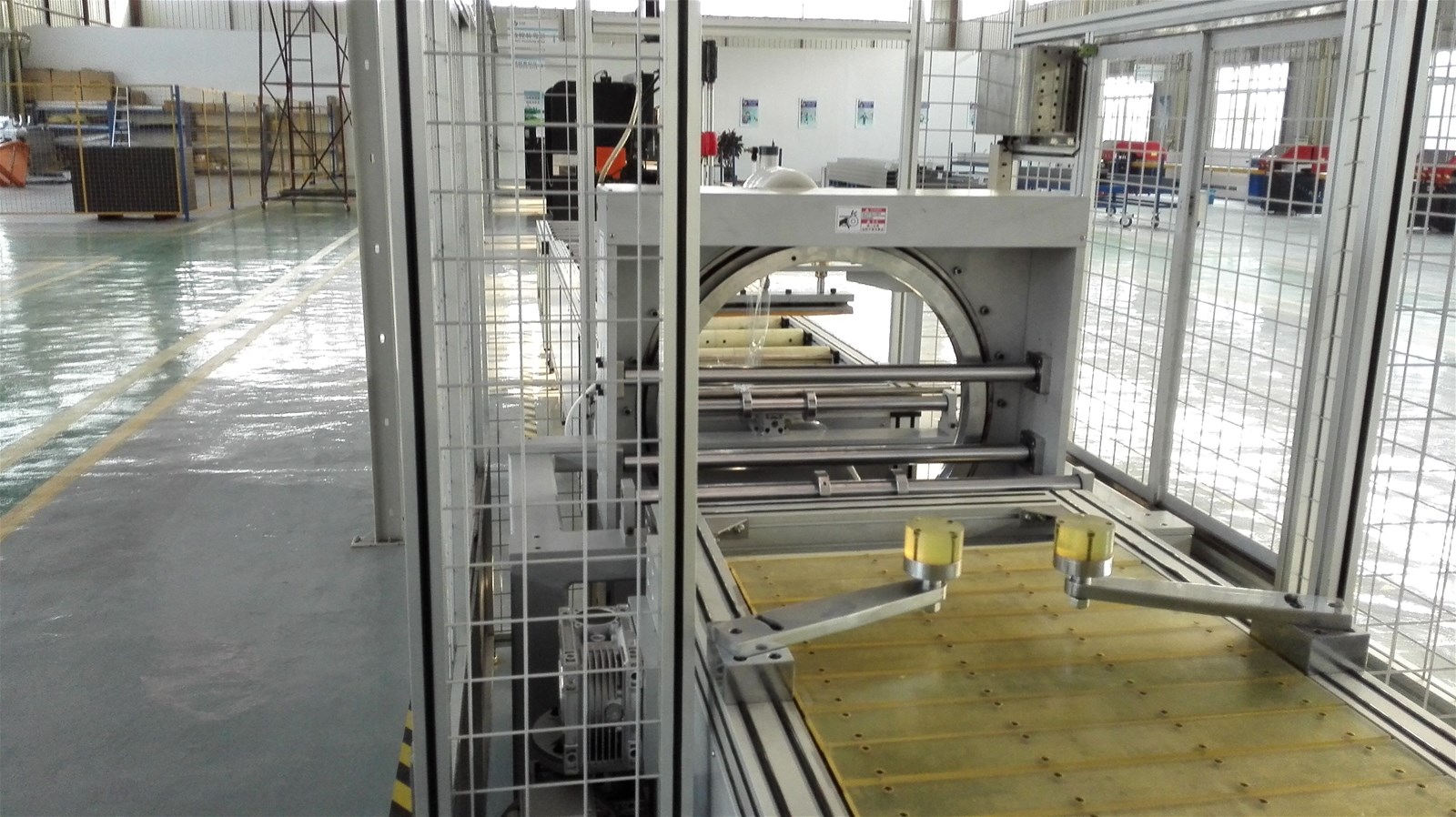

2) Horizontal winding machine: length L = 0.8m, width W = 1.7m, height H = 1.95m, Taiwan's Lee Ming motor drive, power 1.1kW, one rotating disk, made of aluminum, rotating disk driven by a V-belt, 4 cages made of carbon steel, rack 1 set, wrapped with plate of 1.5mm hole
3) Material feed-out of roller conveyor: length L = 6m, width W = 0.7m, height H = 800mm, rack made of aluminum, Siemens deceleration speed motor drives, power 0.75kW with worm reducer 50, the conveyors are set on the two sides of packaging machine.
4) to control by PLC
Service content
1) the supplier is responsible for drawing design
2) Equipment operation and maintenance train during the equipment acceptance.
3) after-sales service

1)packing automatic

2cutting automatic
