Basic Information

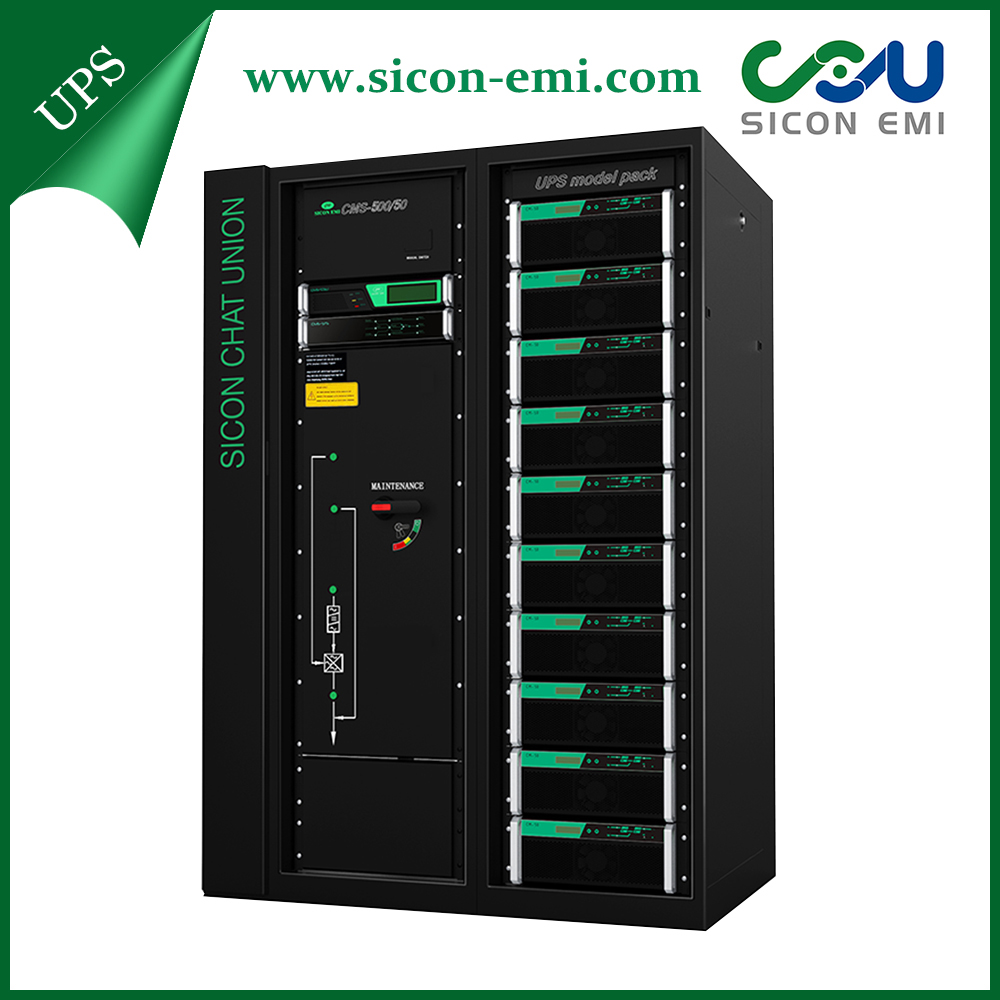

Modular UPS, three phase, online UPS, high frequency, PWM double conversion

Parallel UPS, N+X redundancy, hot swap modules

UPS Power:500KVA

Load power:  450KW

Battery: optional battery pack

Back up time: according to load capacity

Overview

CMS UPS units are non-isolated, industrial level, green UPS, adopting advanced modular power protection concept. CMS Modular architecture can scale power as demand grows or as higher levels of availability are required. CMS UPS is industry-leading efficiency, availability, and performance for small, medium, and large data centers and mission critical environments.

Feature

 Rational redundant structure

 UPS module: 50 kVA; System: 500kVA;

 Great performance index

 Overall efficiency 95%(AC-AC), inverter efficiency 98%(DC-AC), THDI 3%, and input PF 0.99

 N+X module-level redundancy UPS System

 Multi-level decentralized control technology and Master-slave synchronization in sequency control which result in eliminate system failure bottleneck

 Each module automatically even shares the input and output current, all UPS modules share batteries

 Battery management system:

 Battery discharge management, auto-transfer between floating and even charging, temperature compensation

 Space-saving high density design, Rack-based for agility and aesthetics

 Monitor Function

 C/S-Oriented Architecture SICON Software which is available to monitor multiple UPS up to 600 sets;

 B/S-Oriented Architecture which is available to check via IE

 Standard configuration

 Manual maintenance bypass, SPD(Class C), RS232, RS485/RS422 Communication ports, Remote monitor software, day contacts

 Optional configuration

 EPO, Input/output Transformer, Battery Bank, IPDS(Intelligent Power Distribution System)
