Product Main

Quick Details

Pressure: Low Pressure
Standard or Nonstandard: Standard
Power: Electric
Structure: Gear Pump
Brand Name: leadfluid
Application: Metering
Fuel:
Usage: Water
Theory:
Model Number: CT3000F
Place of Origin: China (Mainland)

Specifications

Product introduction

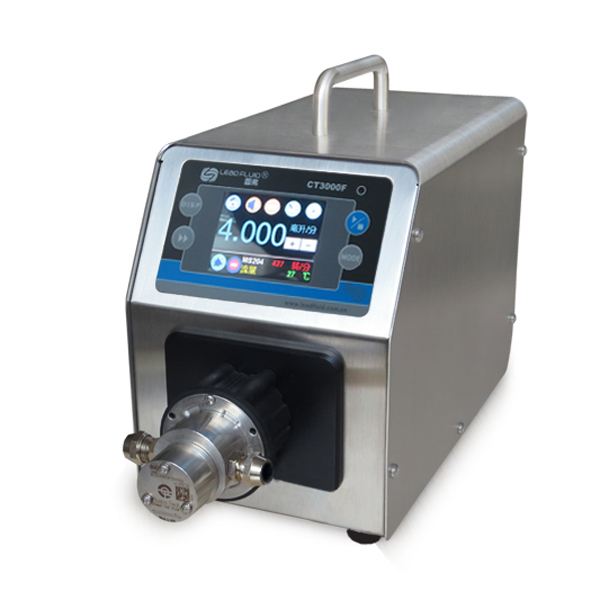

Micro Gear PumpFlow Rate 152700 mLmin

CT3000F is a high performance, low noise of micro gear pump, brushless servo motor, stainless steel, magnetic drive pump can be realized without pulsation, constant velocity of the fluid flow control.Drives using stainless steel house, color LCD display, touch screen operation, can be easily set parameters.A variety of work mode, flow display, and are suitable for all kinds of experimental areas.A variety of external control way, convenient use together with other devices, more the MODBUS protocol communication, simplify the difficulty of system development.

   CT3000F work speed 50-3000 rpm/min, speed resolution 1rpm
Function and feature:
 It can be installed a variety of pump heads
  this pump is suitable for transmission more viscous, high pressure liquid
  No pulse transmission, low noise
  Magnetic coupling is designed, easy to maintain
  Brushless servo drive, high efficiency, no maintenance
  Choose color LCD display, touch screen operation
   Display and control the flow rate,

   It has a variety of working mode
   Flow calibration wizard, ensure the accuracy of fluid volume
   Intelligent temperature control function
   External control signal control, physical isolation, analog control
   RS485 communication, support the MODBUS protocol
   Stainless steel house.
   Wide range power input, adapted to different environment

CT 3000F technical parameters

Main function

Pump head MS204,MS209,MS213
Functions Keypad to control start-stop, direction, speed, memory (power lost memory);Foot switch control, external start-stop and external control direction,with physical isolation,input level 5 v / 12 v / 24 v input is optional;0 to 5 v / 0 to 10 v / 4-20 mA speed optional; flow mode,fluid volume distribution mode, time distribution mode, copy distribution mode.
Communication RS485, Support Modbus communication protocol
Display Color LCD display
Direction CW/CCW

Main performance

Flow range 15-2700 mL/min
Speed range 50-3000 rpm/min
Speed resolution 1rpm/min, accuracy:0.5%
Time dispensing 0.1-99.99 secpmds
Pause time 0.1-999.9 seconds
Dispensing times 0-999
Ajusting way Keypad and touch screen operation
Display mode 65565 Color LCD
Power supply AC 90-264V 50Hz/60Hz
Consumption <50W
Work environment Environment 0 -40,humidity <80%
Dimension size 342*198* 182mm
Drive weight 3.5kg
IP standard IP31

 CT 3000F suitable pump head

Pump head Gear materal Pressure (MPa) Flow range (ml/min) Liquid temperature
MS204XD 0PT 00000 PEEK 1.4 15-900 -45~120
MS209XD 0PT 00000 PEEK 0.9 30-1800 -45~120
MS213XD 0PT 00000 PEEK 0.8 45-2700 -45~120
MS204XD0TT00000 PTFE 1.4 15-900 -45~50
MS209XD0TT00000 PTFE 0.9 30-1800 -45~50
MS213XD0TT00000 PTFE 0.8 45-2700 -45~50
