Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Certification: ASME
Dimension(L*W*H): 6.096M(L) X2.438M(W) X3.204M(H)
Brand Name: RC
Condition: New
Warranty: one year
Weight: 8391.5kg
Power(W): /
Voltage: 380V
Model Number: LRC
Place of Origin: China (Mainland)
Product Type:
Type: Heat Exchanger
product name: Vapor heat exchanger water to air / water to air heat exchanger
Application field: gas field
Heat exchange capacity: 4mmbtu/hr
Brand: Luoyang Runcheng
Design pressure of the upstream coil: 5,000psig
meterial: stainless steel
Design pressure of the downstream coil: 5,000psig
Shell medium: steam
Shell design temperature: 200 C
Shell design pressure: 1.1 MPa

Specifications

the following example is for you reference.


1.Brief Introduction:

  the mainly features of this water and steam heat exchanger are according to the different of oilfield test requirements, It can serve as water jacket furnace heated fluid this function may use fuel, also can use burning gas heating water medium site and it can use steam for heating coil pipe fluid directly. It has solved the problem of heating the same equipment multi-function coil. this equipment for the domestic and foreign is origination, it is the greatest degree of compliance with the using requirement of oil field.

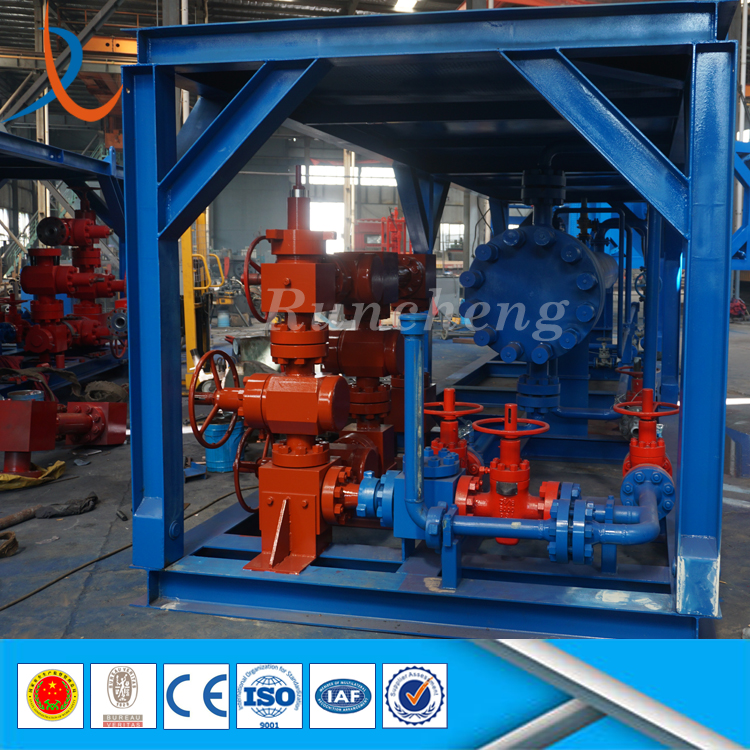

Vapor heat exchanger water to air water to air heat exchanger



2.Techincal parameters:



1 Product name Boiler feed water to steam heat exchanger with ASME certificate / industrial oil/fuel heat boiler
2 Heat exchange capacity 4mmbtu/hr
3 Design pressure of the upstream coil 5,000 psig
4 Design pressure of the downstreamcoil 5,000 psig
5 Shell design pressure 1.1 MPa
6 Shell design temperature 200 C
7 Shell medium  steam
8 Specifications   3 "
9 Material level  EE
10 Coil material 20 g
11 Dimension  6.096m(l) 2.438w) 3.204(h)
12 Weight  8391.5 kg  (18500 lbs )
13 Gas processing    170104m3/d ( 60MMSCF/Day )
14 the medium of high-low pressure coil  Oil, gas and water

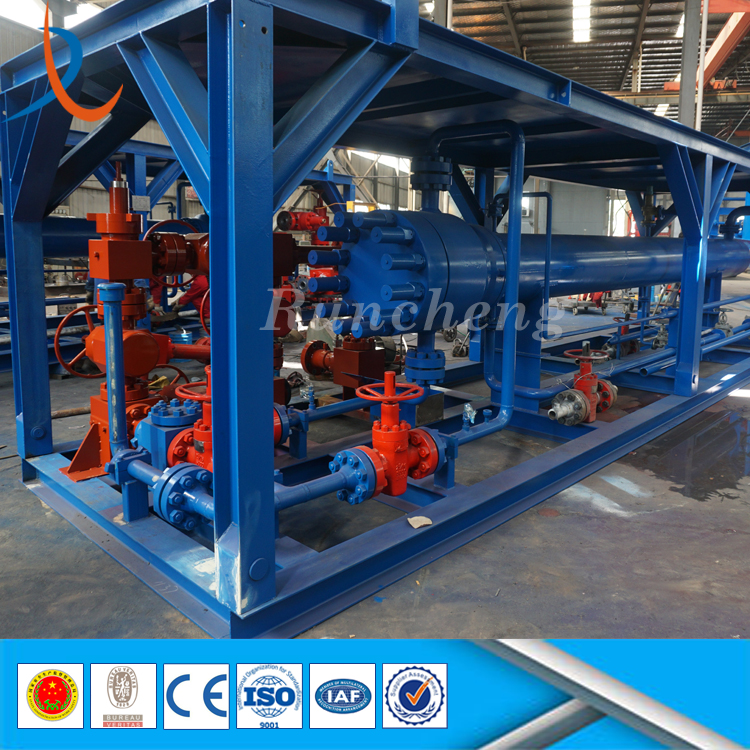

Vapor heat exchanger water to air water to air heat exchanger



3.Performance features:

 Improved efficiency through hydrate formation prevention, viscosity reduction, and emulsions breakdown
 Direct heating by steam from a steam generator
 Increase safety by eliminating fire risk
 Low heat consumption, high exchanging efficiency
 Glass-wool insulation with aluminum jacket
 Adjustable nozzle increase heat exchanging efficiency by reducing the downstream flowrate
