Our s for PCBN and PCD tools have been produced in-house for many years. We production Superior quality grinding wheels for you. Increased feed rates, higher shaped effect, also has less heat making are just some of the advantages of our grinding wheels.



We have a team to contral the working conditions, so the vitrified bond diamond grinding wheels for PCBN and PCD with longer life,  superior edge quality.

Another, we supply for rough PCD/PCBN grinding by using 600, 800, 1000 mesh diamond. It Shows excellent performance with sharpen cutting, high wear resistance and no chip on wheel.

Fine grinding is using 3000, 4000, 5000 mesh diamond giving higher performance on PCD/PCBN cutters or workpiece.



Scope of use: fine grinding for PCD, PCBN hub cutter, round cutter, boring cutter, groove cutter, milling cutter, reamer, motor cutter, etc.



Vitrified bond Diamond wheel features

A. high strength, good heat resistance,

B. cutting sharp, high grinding efficiency,

C. Vitrified grinding process is not easy to heat and blockage, a small amount of thermal expansion, easy to control the machining accuracy.



Compared with resin bonded grinding wheel

Vitrified bond diamond wheel solved the problem of low service life of resin diamond wheel, low grinding efficiency, abrasive change and odor in grinding process. Vitrified bond diamond wheel  in the manufacturing process can be adjusted on the hardness and porosity, is conducive to the improvement of grinding performance, through a reasonable ratio and production control, will not produce deformation, it is also the use of the grinding wheel with high precision the reason.



Specification of vitrified bond diamond grinding wheel

Name	Size	Grit

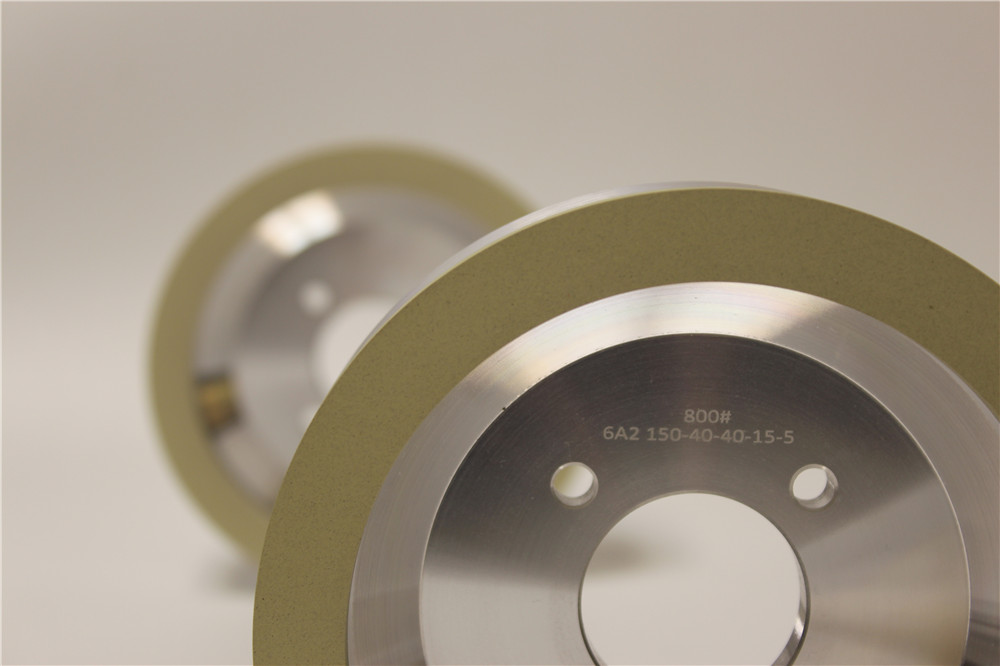

6A2 vitrified diamond Grinding wheel	100*40*40*5*10	W20/28/40/10/5
	100*40*40*10*10	W20/28/40/10/5
	125*40*40*5*10	W20/28/40/10/5
	125*40*40*7*10	W20/28/40/10/5
	125*40*40*10*10	W20/28/40/10/5
	125*40*40*15*10	W20/28/40/10/5
	125*40*40*20*10	W20/28/40/10/5
	150*40*40*3*10	W20/28/40
	150*40*40*5*10	W20/28/40
	150*40*40*10*10	W20/28/40
	150*40*40*15*10	W20/28/40
	150*40*40*20*10	W20/28/40



Application

Mainly used for carbide, PCD, PCBN, ceramics, metal ceramics and other materials processing.



Type	D	T(mm)	H(mm)	X(mm)	W(mm)
6A2	75	10 15 20 25	10 20	3 4 5	5 10
	100	15 20 15 30	10 20 31.75	3 5 10	5 6 8 10
	125	15 20 15 30 35	20 31.75 32	5 10	5 10 15 20
	150	15 20 15 30 35	20 31.75 32	5 8 10	5 6 10 15 20
	200	20 25 30 35 40 45 50	31.75 32 50 75	8 10	5 6 10 15 20 25







D	T	H	W	X
150	38   40 50	31.75 32 40	2-20	5-10
180	38   40 50	31.75 32 40	2-20	5-10
200	38   40 50 60	31.75 32 40 75	2-20	5-10
250	38   40 50 60	75   127 203	2-20	5-10
300	38   40 50 60	127   203	2-20	5-10
350	38   40 50 60	127 203	2-20	5-10
400	38   40 50 60	127   203	2-20	5-10
According to your customered
