| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Certification: | CE |
| Brand Name: | ZK |
| Condition: | New |
| Place of Origin: | China (Mainland) |
| Condition: | New |
| Weight: | customized |
| color: | customized |
| Capacity: | 50-3000 t/d |
Quick Details
Specifications
1. Introduction

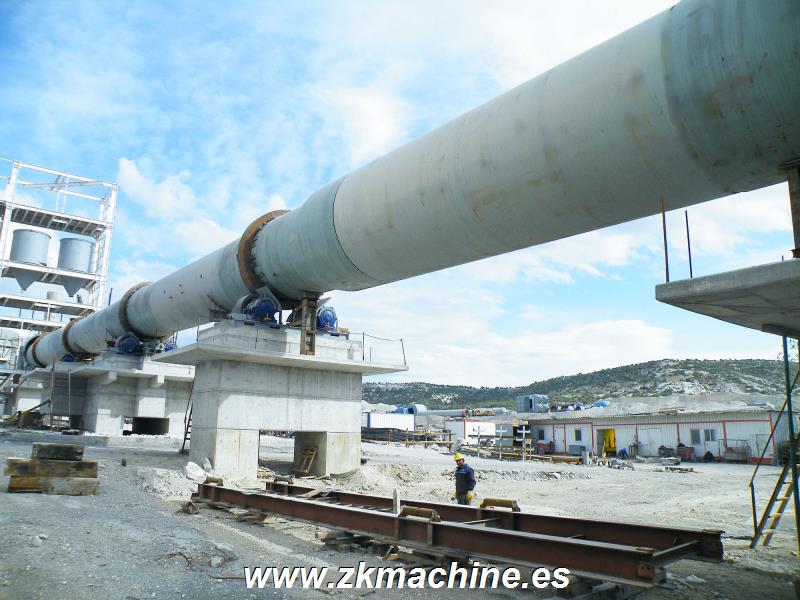

Rotary kiln is a pyroprocessing device used to raise materials to a high temperature (calcination) in a continuous process. Materials produced using rotary kilns include:
Cement
Lime
Refractories
Metakaolin
Titanium dioxide
Alumina
Vermiculite
Iron ore pellets
They are also used for roasting a wide variety of sulfide ores prior to metal extraction.
Rotary kiln is widely used for many industries like metallurgy, chemical industry, building refractory materials, environmental protection, etc. the Rotary Kiln consists of cylindrical shell, supporting device, supporting device of thrust roller, driving unit, moveable kiln head, sealing device on the tail of kiln, coal dust pipe device, etc. the kiln body has a certain tilt angle with level. the whole kiln body is supported by the roller supporting device, and it is also equipped with thrust roller device to control the up and down movement of the kiln body.
2. Advantage
(1). New type technology is adopted by main driving system. Compared with traditional magnetic and DC speed regulation, its main driving system has the advantages like energy saving, environmental, wide speeding adjusting range, high performance and stable operation.
(2). after the welding of bases for supporting devices of supporting roller and catching roller, vibration aging treatment should be applied for remove the welding stress. Then, use vertical lathe and boring-milling machine for integration fabrication. this process can guarantee the requirement of fabrication precision and dimension & location tolerance. Installation accuracy of rotary kiln is obviously improved.
(3). Temperature measuring point is reserved at bearing base of supporting roller. It is mainly used for automation detection of kiln operation status by insert the measuring device.
3. Working Principle
the kiln is a cylindrical vessel, inclined slightly to the horizontal, which is rotated slowly about its axis. the material to be processed is fed into the upper end of the cylinder. as the kiln rotates, material gradually moves down towards the lower end, and may undergo a certain amount of stirring and mixing. Hot gases pass along the kiln, sometimes in the same direction as the process material (co-current), but usually in the opposite direction (counter-current). the hot gases may be generated in an external furnace, or may be generated by a flame inside the kiln. Such a flame is projected from a burner-pipe (or "firing pipe") which acts like a large bunsen burner. the fuel for this may be gas, oil, pulverized petroleum coke or pulverized coal.
4. Technical Parameters
Why choose us?
1. We are factory
All Henan Zhengzhou Mining Machinery Equipment Co., Ltd are produced by the professional technicians of our own factory, with best price and high quality. We look forward to cooperating with you.
2. about services
1) pre-sale services:
We offer you the profase plan, the technology process and the team design according to your special demands and the conditions of the job site.
2) sales services:
Send professional technicians to the workplace to guide the installation and adjustment, provide the training of the operation, meet the test together with you.
3) Service after sale:
Establish long-term friendship with you, we regularly receive your comments. in addition, we provide one-year warranty to ensure normal operation of your machine.
3. We would like to recommend a machine or production line suitable for you and we will send you a best offer.
Company introduction
HENAN ZHENGZHOU MINING MACHINERY CO.,LTD is leading mining equipments manufacturing in the world, who has provided innovative technology and products for mine and energy of over 100 countries and district. It is built in 1956 and locates its factory in XINNGYANG, HENAN, China. It is appointed as the fixed equipment-providing factory by Chinese Ministry of Machine Building and HENAN Mechanical Electronic Bureau.
the development during the last half century has witnessed its capital assets being over RMB100000000 and becoming a comprehensive modern enterprise with the service of scientific research, design, manufacture, sales, installation, commissioning, worker training and etc.
the production lines provided by us mainly include: Magnesium Production Line, Cement Production Line, Lime Production Line, Ore Dressing Line, and Oil Proppant Production Line; Main products include: Rotary Kiln, Ball Mill, Crusher, Rotary Dryer, Dust Collector, Belt conveyors, Screw conveyor, Bucket Elevator, Vertical Preheater, Fertilizer Granulator, Vertical Cooler, Magnetic Separator, Flotation Machine, Classifier, Feeder, and etc. Our products are sell well in each city in China and could also be found in Russia, South Korea, Vietnam, Malaysia, Nepal, Bengal, Mexico, Armenia, Africa, South America, and etc, which are thought highly by our clients.
If you are interested in the products of our company, please contact us to get the quote.
Rotary kiln is a pyroprocessing device used to raise materials to a high temperature (calcination) in a continuous process. Materials produced using rotary kilns include:
Cement
Lime
Refractories
Metakaolin
Titanium dioxide
Alumina
Vermiculite
Iron ore pellets
They are also used for roasting a wide variety of sulfide ores prior to metal extraction.
Rotary kiln is widely used for many industries like metallurgy, chemical industry, building refractory materials, environmental protection, etc. the Rotary Kiln consists of cylindrical shell, supporting device, supporting device of thrust roller, driving unit, moveable kiln head, sealing device on the tail of kiln, coal dust pipe device, etc. the kiln body has a certain tilt angle with level. the whole kiln body is supported by the roller supporting device, and it is also equipped with thrust roller device to control the up and down movement of the kiln body.
2. Advantage
(1). New type technology is adopted by main driving system. Compared with traditional magnetic and DC speed regulation, its main driving system has the advantages like energy saving, environmental, wide speeding adjusting range, high performance and stable operation.
(2). after the welding of bases for supporting devices of supporting roller and catching roller, vibration aging treatment should be applied for remove the welding stress. Then, use vertical lathe and boring-milling machine for integration fabrication. this process can guarantee the requirement of fabrication precision and dimension & location tolerance. Installation accuracy of rotary kiln is obviously improved.
(3). Temperature measuring point is reserved at bearing base of supporting roller. It is mainly used for automation detection of kiln operation status by insert the measuring device.
3. Working Principle
the kiln is a cylindrical vessel, inclined slightly to the horizontal, which is rotated slowly about its axis. the material to be processed is fed into the upper end of the cylinder. as the kiln rotates, material gradually moves down towards the lower end, and may undergo a certain amount of stirring and mixing. Hot gases pass along the kiln, sometimes in the same direction as the process material (co-current), but usually in the opposite direction (counter-current). the hot gases may be generated in an external furnace, or may be generated by a flame inside the kiln. Such a flame is projected from a burner-pipe (or "firing pipe") which acts like a large bunsen burner. the fuel for this may be gas, oil, pulverized petroleum coke or pulverized coal.
4. Technical Parameters
Model |
Capacity (t/h) |
Speed (rpm) |
Slope (%) |
Support No. |
Gearbox |
Motor model |
Power (kw) |
Remark |
1.632m |
2 |
0.58-2.85 |
4 |
3 set |
ZQ75-50 |
YCTZ50-4A |
18.5 |
|
1.6/1.936m |
2.5~3 |
0.53-1.59 |
4 |
3 set |
ZQ110-7 |
YCTZ50-4B |
22 |
|
1.939m |
3~3.5 |
0.53-1.59 |
4 |
3 set |
ZQ125-7 |
YCT315-4A |
37 |
|
2.238m |
5~6 |
0.214-1.64 |
3.5 |
3 set |
Main ZS125-5-II |
Main YCT315-4A |
37 |
|
Auxiliary ZQ40-40 |
Auxiliary Y112M-4 |
4 | ||||||
2.245m |
4~5 |
0.214-1.64 |
3.5 |
3 set |
Main ZS125-5 |
Main YCT315-4B |
45 |
|
Auxiliary ZQ40-40 |
Auxiliary Y112M-4 |
4 | ||||||
2.540m |
6~7 |
0.62-1.5 |
3.5 |
3 set |
Main ZS165-5 |
Main YCT355-4A |
55 |
|
Auxiliary ZS50-1 |
Auxiliary Y160M-6 |
7.5 | ||||||
2.550m |
5~6 |
0.62-1.5 |
3.5 |
3 set |
Main ZS165-5 |
Main YCT355-4A |
55 |
|
Auxiliary ZS50-1 |
Auxiliary Y160M-6 |
7.5 | ||||||
2.843m |
7~8 |
0.62-1.5 |
3.5 |
3 set |
Main ZS165-6 |
Main YCT355-4B |
75 |
|
Auxiliary ZS50-1 |
Auxiliary Y160L-6 |
11 | ||||||
2.855m |
6~7 |
0.62-1.5 |
3.5 |
3 set |
Main ZS165-6 |
Main YCT355-4B |
75 |
|
Auxiliary ZS50-1 |
Auxiliary Y160L-6 |
11 | ||||||
350m |
9~10 |
0.5-1.5 |
3.5 |
4 set |
Main ZS165-3 |
Main ZSN-280-11B |
125 |
|
Auxiliary ZS50-1 |
Auxiliary Y160L-6 |
11 | ||||||
360m |
7~8 |
0.5-1.5 |
3.5 |
4 set |
Main ZS165-3 |
Main ZSN-280-11B |
125 |
|
Auxiliary ZS50-1 |
Auxiliary Y160L-6 |
11 | ||||||
3.253m |
10~12 |
0.4-1.5 |
3.5 |
3 set |
Main ZL130-16 |
Main ZSN4-280-11B |
125 |
|
Auxiliary ZL50-10 |
Auxiliary Y180L-4 |
22 | ||||||
3.264m |
8~10 |
0.4-1.5 |
3.5 |
3 set |
Main NZS995-28VBR |
Main ZSN4-280-21B |
160 |
|
Auxiliary ZL50-9-2 |
Auxiliary Y180L-6 |
15 | ||||||
3.570m |
12~14 |
0.4-1.5 |
3.5 |
3 set |
Main ZSY500-40 |
Main ZSN-315-072 |
250 |
|
Auxiliary ZSY180-31.5 |
Auxiliary Y180L-4 |
22 | ||||||
3.655m |
14~16 |
0.4-1.5 |
3.5 |
3 set |
Main ZSY500-40 |
Main ZSYN-315-072 |
250 |
|
Auxiliary ZL65-16 |
Auxiliary Y180L-4 |
22 | ||||||
3.858m |
18~20 |
0.4-1.5 |
3.5 |
3 set |
Main ZSY500-40 |
Main ZSN315-072 |
250 |
|
Auxiliary ZL50-14 |
Auxiliary Y180L-4 |
22 | ||||||
4.060m |
104 |
0.4-1.5 |
3.5 |
3 set |
Main ZSY630-35.5 |
Main ZSN4-355-092 |
315 |
|
Auxiliary ZL65-16 |
Auxiliary Y200L-4 |
30 |
