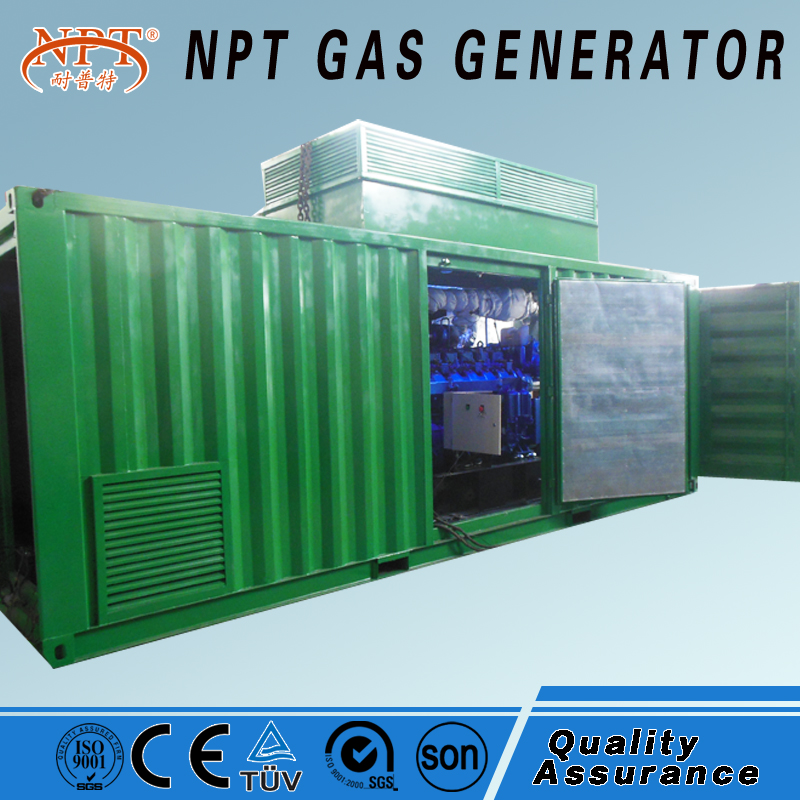

Generating Set general Model

400GFT

Structure

Integral

Exciting Method

Rated Power (kW)

400

Rated Current(A)

720

Rated Voltage(V)

400/230

Rated Frequency(Hz)

50

Rated Power Factor

0.8 LAG

No load voltage Setting range

95%-105%

Steady state voltage Regulation rate

1%

Transient state Voltage regulation rate

-15%+20%

Voltage fluctuation Rate

3s

Steady state Frequency regulation rate

0.5%

Transient state Frequency regulation rate

10%

Frequency Stabilization time

5s

Line-voltage Waveform sinusoidal distortion rate

2.5%

Gas Engine

Model

NW363D43TL

Type

in line, 4-stroke, electric control ignition, Pre-mixed lean burn, turbocharged after cooled

Cylinder Number

8

Bore x Stroke (mm)

170X200

Total Displacement (L)

36.3

Rated Power (kW)

430

Rated Speed (r/min)

1500

Speed Regulation Mode

Electrical

Starting Mode

Electrical

Fuel Type

Natural gas/biogas

Overall Dimension (L x W x H)(mm)

3650X1180X1980

Net Weight (kg)

6550
