MC8711 Force Transducer

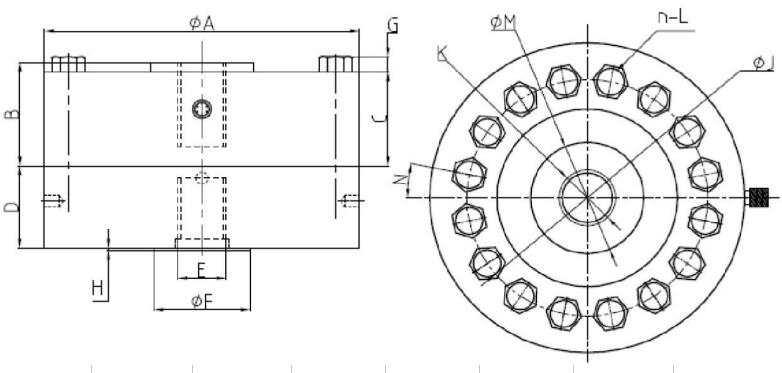

Rated capacity	DIMENSIONS (mm)
	A	B	C	D	E		F	G	H	J	K		n-L	M	N
900KN	279.0	88.9	76.2	76.2	M722-4H69.8		114.3	12.7	0.8	228.6	M722-4H82.6		1616.5	122.2	11.25
1200KN	279.0	101.6	101.6	101.6	M722-4H69.8		114.3	12.7	0.8	222.2	M722-4H95.3		1620.1	122.2	11.25
1800KN	304.8	114.3	114.3	114.3	M903-4H95.3		152.4	15.0	0.8	241.3	M903-4H95.3		2020.1	144.3	9
2700KN	393.7	139.7	127.0	127.0	M1204-4H108		196.9	17.5	0.8	322.1	M1204-4H108		2423.9	196.3	7.5
4500KN	520.7	158.8	177.8	177.8	M1502-4H162		267.9	25.4	0.8	419.1	M1504-4H130		2827	267.9	6.43
9000KN	660.4	196.9	228.6	228.6	M2002-4H184		355.6	31.3	2.5	520.7	M2004-4H178		3233.3	350.3	5.63

Technical Parameter

Capacity			9009000KN		Input resistance			385/75020
Rated output			2.0 /4.0mv/v0.1%		Output resistance			350/7003
Total error			0.070.18%F.S		Safe overload			150%F.S
Creep in 30 minutes			<0.05%F.S		Ultimate overload			200%F.S
Temperature effect span			<0.02%F.S/10		Excitation voltage			10V AC/DC
Temperature effect zero			<0.02%F.S/10		Maximum excitation voltage			15V AC/DC
Compensated temperature range			-10+40		Insulation resistance			5000M
Operating temperature range			-30+70		Environmental protection			IP68
Zero balance			1%F.S		Material:     Allow steel ,  stainless steel
Cable: 15m
Wring: +Exc ( Red) ;Exc ( Black);Sig ( Green);Sig ( White)
