Shear beam load cell, one end fixed, diverse loading, and good seal structure. Self-centering, simple to install,
Easy to use, good interchangeability. Suitable for various ultra-thin electronic truck scale, one-track crane scale,
Hopper scale, etc. Truck scale, railway scale, axle wheel scale, floor scale, warehouse scale.

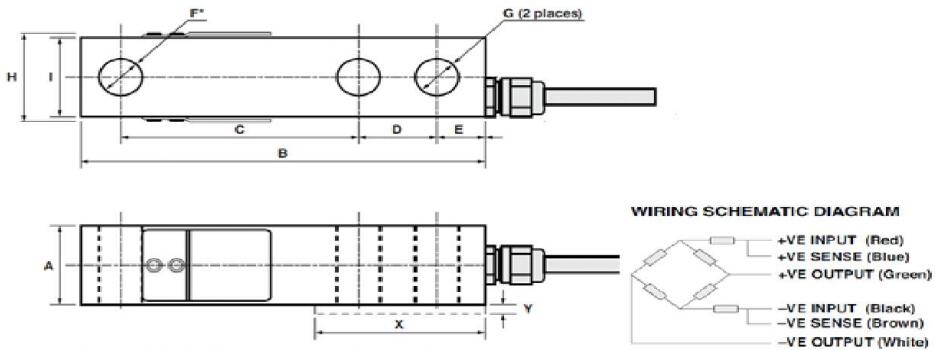

CAPACITY		A	B	C	D	E	F	H	I	X	Y
1000,1500,2500,4000 lbs		30.5	130	76.2	25.4	16	13.5	34	30.5	57	4
250,500,1000 kg		30.5	130	76.2	25.4	16	M12 #	34	30.5	57	4
2000kg		36	130	76.2	25.4	16	M12#	34	30.5	57	4

Technical Parameter

Capacity			250-2000kg		Zero balance			1%F.S
Rated output			2.0 for kg and 3.0 for lbs		Input resistance			38510
Accuracy class			C3; 0.05		Output resistance			3515
Non-linearity			0.02; 0.05%F.S		Safe overload			200%F.S
Hysteresis			0.02; 0.05%F.S		Ultimate overload			10V AC/DC
Creep in 30 minutes			0.02; 0.05%F.S		Excitation voltage			15V AC/DC
Temperature effect span			0.015%F.S/10		Maximum excitation voltage			5000M
Temperature effect zero			0.02%F.S/10		Insulation resistance			IP67
Compensated temperature range			(-10+40		Environmental protection
Operating temperature range			(-30+65 J166		Material:   Alloy steel , stainless steel
Cable: 3m / 6m

FOQ

1. What'S your MOQ

Normally our MOQ is 5-10 pcs, but sometimes maybe we have enough stock,

If based on ODM, MOQ can be negotiated.



2. Are you a trading company?

We are manufacturer, our factory has passed ISO9001:2008, we have good quality control.



3. Do you accept customized service?

Yes, we have different customers make their own OEM products,

so we also can make product as per your requirments.



4. how long can i expect to receive my goods after placing order?

Our production time is always 15-30 days after order confirmation.



5. Can i get some samples before placing order and how long for a sample?

Yes, but customer need pay for the samples and freight, the lead time for samples is about 7 days

after getting the payment.



6. how is your shipping?

1) Shipping by express (sample order) or by sea (bulk order)

2) Worldwide shipping service available

3) Please contact before order as shipping cost varies time to time.



7. Will you have some discount?

1) to clients who bring repeat orders and large orders.

2) Please contact us for Better Quote.



Any other questions please don'T hesitate to contact us anytime!
