Shear beam load cell, one end fixed, diverse loading, and good seal structure. Self-centering, simple to install,
Easy to use, good interchangeability. Suitable for various ultra thin electronic truck scale, one-track crane scale,
Hopper scale, etc.

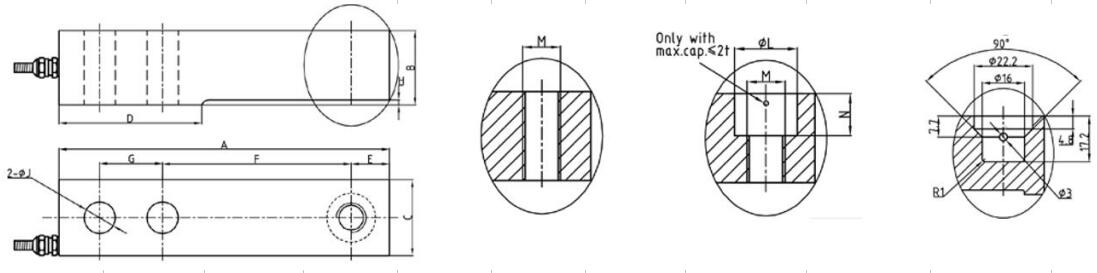

Capacity	A	B	C	D	E	F	G	H	J	L	M	N
0.22-2t	133.4	30.2	30.7	57.7	15.4	76.2	25.4	1.7	13	20.6	M12	14.2
2.2t	171.5	36.5	36.7	76.2	19.1	95.3	38.1	2.5	20.5	30.2	M20	17
4.4t	171.5	42.9	42.9	76.2	19.1	95.3	38.1	2.5	20.5	30.2	M20	20.1
10t	245.1	72.9	60	119.9	30.2	134.9	50	11.2	27	51	32	20

Technical Parameter

Capacity			0.2210t		Zero balance			1%F.S
Rated output			2.0,1.94mv/v0.2%		Input resistance			3855
Accuracy class			C3, 0.05		Output resistance			3503
Non-linearity			0.02, 0.05%F.S		Safe overload			150%F.S
Hysteresis			0.02, 0.05%F.S		Ultimate overload			300%F.S
Creep in 30 minutes			0.02, 0.05%F.S		Excitation voltage			10V AC/DC
Temperature effect span			0.015%F.S/10		Maximum excitation voltage			15V AC/DC
Temperature effect zero			0.012%F.S/10		Insulation resistance			5000M
Compensated temperature rang			(-10+40)		Environmental protection			IP68
Operating temperature range			(-30+65)		Material:   stainless steel
Cable:  3m(2t)/6m
Wiring: +Exc (Blue) ;Exc (Black);Sig (White);Sig (Red) +Sen(Green);  Sen(Grey)
