S type load cell & force transducer, tension and compression. Good output symmetry, compact structu
Re, simple to install, full range of capacities. Suitable for electromechanical scale, crane scale, hopper scale
and various special scales.

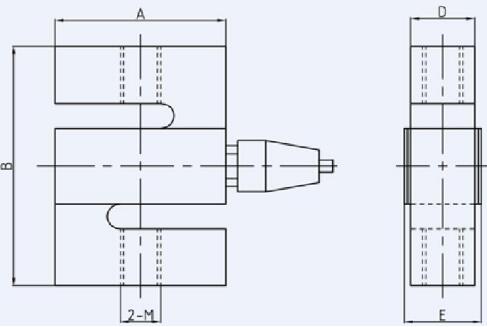

Capacity	A	B	D	E	M
100kg	50.8	76.2	19	28	M10*1.5
200-750kg	50.8	76.2	19	28	M12*1.75
1t-1.5t	50.8	76.2	19	35	M12*1.75
2t-5t	76.2	108.8	25	34	M18*1.5
10t	127	177.8	50.4	60	M30*2

Technical Parameter

Capacity			0.1~10t		Zero balance			1%F.S
Rated output			3.0mv/v0.1%		Input resistance			38720
Accuracy class			C3, 0.05		Output resistance			3505
Non-linearity			0.02, 0.05%F.S		Safe overload			150%F.S
Hysteresis			0.02, 0.05%F.S		Ultimate overload			300%F.S
Creep in 30 minutes			0.02, 0.05%F.S		Excitation voltage			10V AC/DC
Temperature effect span			0.015%F.S/10		Maximum excitation voltage			15V AC/DC
Temperature effect zero			0.012%F.S/10		Insulation resistance			5000M
Compensated temperature rang			(-10+40)		Environmental protection			IP67/IP68
Operating temperature range			(-30+65)		Material:  Alloy steel
Cable: 6m
Wiring: +Exc (Red) ;Exc (Black);Sig (Green);Sig (White)
