| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Voltage: | 220v |
| Brand Name: | RC |
| Type: | Separating Plant |
| Condition: | New |
| Warranty: | 12 Months |
| Certification: | ISO9001 |
| Dimension(L*W*H): | L3.6m*W1.99m*H2.9m |
| Weight: | 500kg |
| Power(W): | 24kw |
| Model Number: | HCD70F |
| Place of Origin: | China (Mainland) |
| Product Type: | |

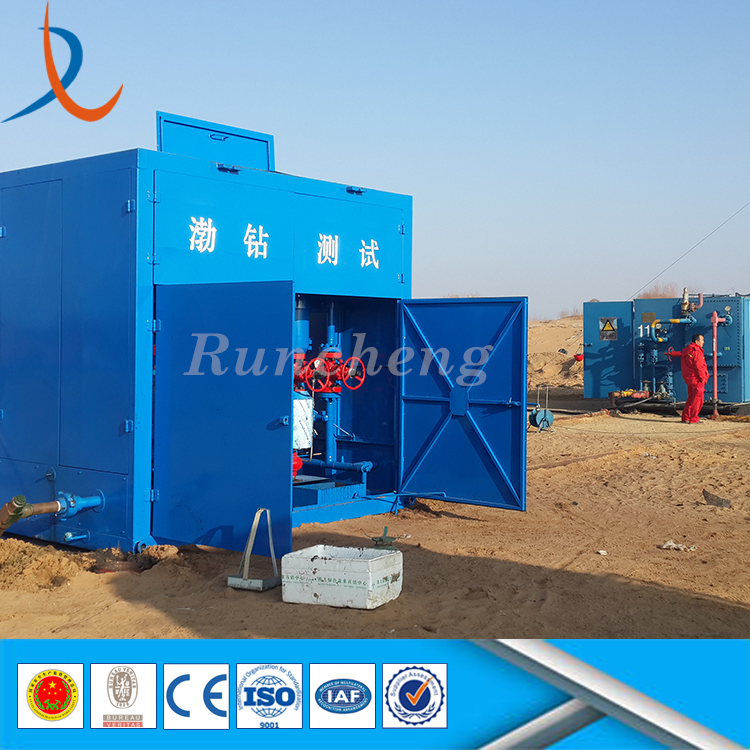

| Description: | Wellhead drilling crude oil sand filter separator / mud cyclone desander / well sand separator |
| Anti-sulfur grade: | 10% |
| Maximum working pressure: | 70MPa/ 105MPa |
| Maximum working tempreature: | 120C |
| Environment temperature: | Subzero 40~70C |
| Experiences: | 13 years |
| Material Class: | AA-EE |
| Minimum storage temperature: | Subzero 50C |
| Company type: | Manufacturer |
| Gas processing capacity: | 1,500,000N lm3/d |
Quick Details
Specifications
the following example is for you reference.
1.Brief Introduction:
Sand desander is a wellhead desander used for testing with surface equipments to provid efficient and reliable separation of sand and solids from hydrocarbon and water effluent during either the early life of a well (well cleanup) or its producing life (recovery of formation sand).
2.Techincal parameters: Model HCD70F Description Wellhead drilling crude oil sand filter separator / mud cyclone desander / well sand separator Maximum working pressure 70MPa/ 105MPa Maximum working tempreature of fluid 120 Environment temperature Subzero 40~70 Minimum storage temperature Subzero 50 Working medium Oil,gas,water Working environment Anti-sulfur(EE) Anti-sulfur grade 10% Material Class AA-EE the diameter of pots 210mm the volume of pots Be equal or greater than 46L Gas processing capacity Be equal or greater than1,500,000N lm/d Inlet and outlet dimension 2-9/16" Inlet and Outlet Connection Union or Flange Sand cylinder Main desand cylinder and spare cylinder Valve type Hard-surface brake valve Union type Anti-erosion tee joint Safety performance Double isolation gate valves for inlet and outlet Design Codes API-6A (PSL-3), ASME B31.3
Adjustable nozzle for sand outlet
3.Performance features:
High efficient wellhead desanding equipment
Anti-sulfur and anti-acid
Dismountable screens
Pneumatic hinge for screen lifting
High-strength skid with crash frame for protection
Have hanging points and noose
Hard-surface brake valve and valve seat, anti-erosion tee joint for erosion protection
Upstream solids removal and protection of downstream equipment
Custom-made is available
