After-sales Service Provided: | No overseas service provided |
---|---|
Warranty: | 1 year |
Dimension(L*W*H): | 7230* 9230*11230 |
Brand Name: | CHINA COAL |
Condition: | New |
Quick Details
Specifications
1.Brief Introduction:
Low gravity centre provides good stability.
Advanced electric steering technology(EPS) is humanized designed, with automatic reset, height display and automatic deceleration at high lifting lever.
Finger tip control via joystick, Step-less speed control for driving, lifting and lowering speed is adjustable.
Buffer oil cylinder: the oil cylinder will automatic decelerate when off ground 500mm, to prevent impact and lower noises.
the mast and the frame are dividable and exchangeable.
Low battery protection setting prolongs the battery use time.
AC motor eliminates replacement of the carbon brush, provides good ramp starting performance and regenerative breaking functions.
Sideway battery is convenient for exchanging and maintaining.
the mast material is the special type imported from Germany.
the truck can automatic decelerate when quick turning.
High performance multi-function instrument has LED light and display function. LED indicators include battery indicator, fault indicator, Electric thermometer indicator, pedal indicator and hand break indictor.
Multi function display, include battery status, performance, working hour, accelerator, speed, the wheel position and traveling direction.
Press right and left keys to switch for different grades: high, normal, low, and lowest.
2.Techincal parameters:
Model OPS15 Load capacity Q(kg) 1500 Load centre distance c(mm) 600 Load distance, centre of drive axle to fork x(mm) 206 Tyre size, front mm 310*125 Tyre size, rear mm 128*73 Height, mast closed H1(mm) 2410 / 3080 / 3750 Max. Lift height H3(mm) 5000 / 7000 / 9000 Height, mast extended H4(mm) 7230 / 9230 / 11230 Height of platform H7(mm) 230 Lowered height H13(mm) 80 Overall length L1(mm) 3200 Coupling height L2(mm) 1975 Overall width B1/b2( (mm) 1100 / 1352 Forks length S*e*l(mm) 45*100*1220 Width overall forks B5(mm) 530 / 715 Height of overhead guard H6(mm) 2290 Aisle width for pallets 1000x1200 crossways Ast(mm) 1400 Aisle width for pallets 800x1200 lengthways Ast(mm) 1000 Turning radius Wa(mm) 1800 Travel speed, laden / unladen km/h 7.7 / 8 Lift speed, laden / unladen m/s 0 - 0.15 / 0 - 0.28 Lowering speed, laden / unladen m/s 0 - 0.28 / 0 - 0.30 Battery volts. / cap. v/ah 24 / 770 (1100) Battery weight kg 610 (850) Battery dims. (l*w*h) mm 982*397*561 Service weight (with battery) kg 3870

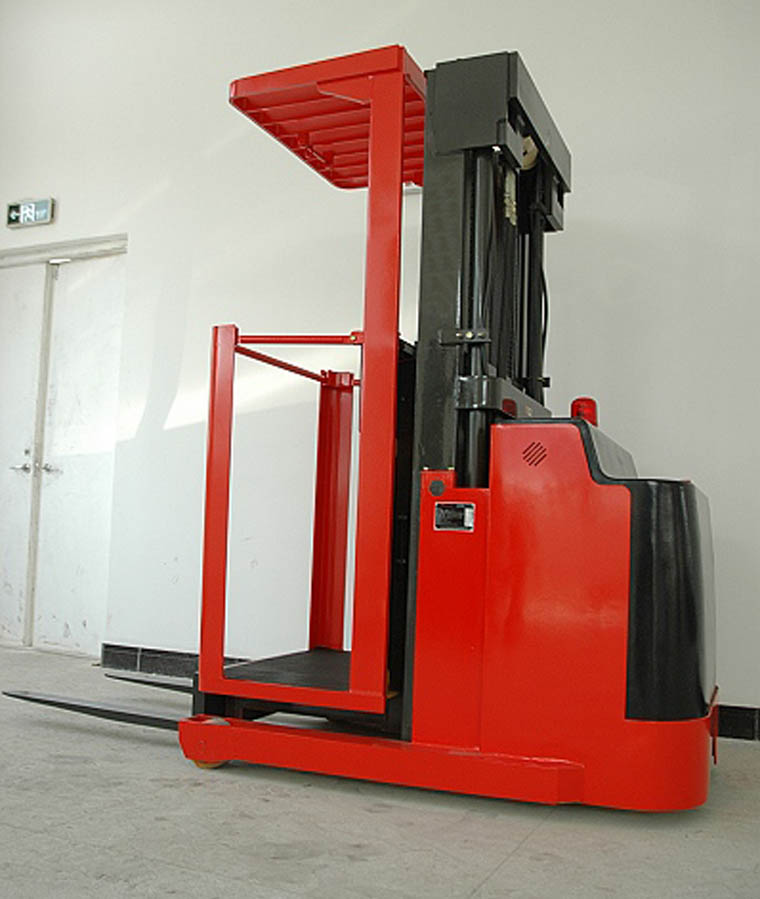

3.Photos:
