| Power Souce: | DC Motor |
|---|---|
| Type: | Powered Pallet Truck |
| Brand Name: | CHINA COAL |
| Condition: | New |
| Year: | 2017 |
| After-sales Service Provided: | No overseas service provided |
| Model Number: | TB15C |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
1.Brief Introduction:
1.to use water-proof and dust-proof design for all circuit, to aviod the shortcircuiting happened.
2.Ergonomics multi-functional operation handle to increase the comfortable degree.
3.Emergency reverse switch, to aviod the operator get harm.
4.Safety: emergency power-off switch.
2.Techincal parameters:
1 Description Electric Forklift 2 Model TB15C-25 TB15C-30 3 Load capacity Kg 1500 1500 4 Load center mm 500 500 5 Max. Lifting height mm 2500 3000 6 Free lift mm 0 0 7 Wheel type Polyurethane solid tire 8 Fork size (LxW) mm 1125*190 1125*190 9 Width of forks mm 565 565 10 Overall length mm 2100 2100 11 Overall width mm 800 800 12 Overall height mast closed mm 1720 1970 13 Overall height fork raised (with backrest) 2900 3440 14 Outside turning radius mm 1600 1600 15 Front wheel to fork tip mm 470 470 16 Max. Walking speeds km/h 4.0 4.0 17 Grade abitity % 5 5 18 Total weight (with battery) Kg ~730 ~750 19 Driving wheel mm 215*75 215*75 20 Front wheel mm 80*70 80*70 21 Balance wheel mm 150*50 150*50 22 Battery V/Ah 24/210 24/210 23 Charger V/A 24/30 24/30 24 Driving motor Kw 1.2 1.2 25 Lifting motor Kw 2.0 2.0

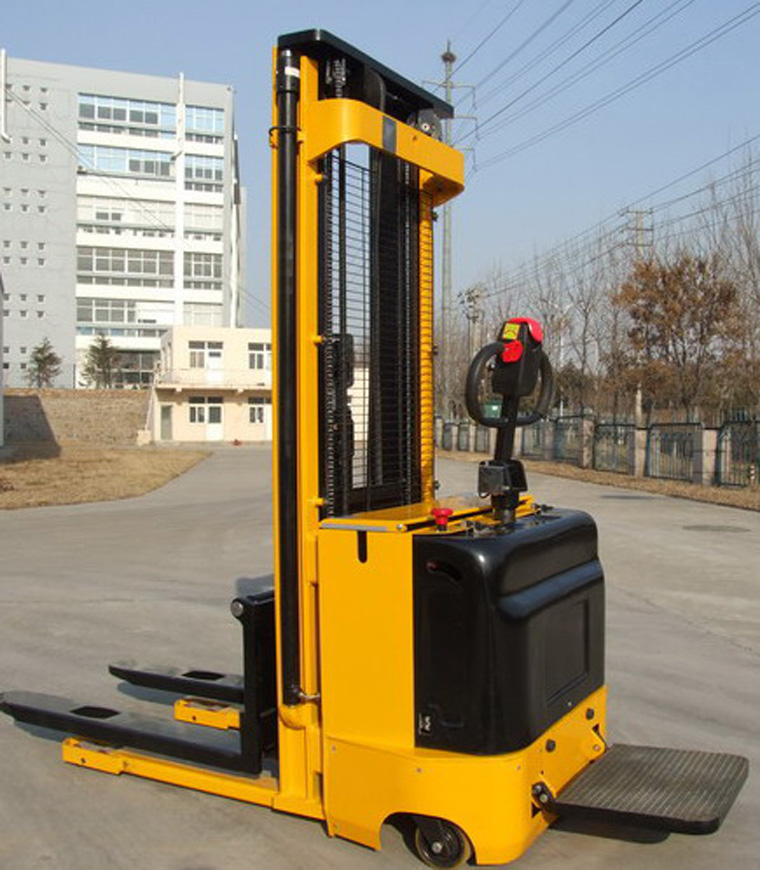

3.Photos
