| Power Souce: | DC Motor |
|---|---|
| Type: | Powered Pallet Truck |
| Brand Name: | CHINA COAL |
| Condition: | New |
| Year: | 2017 |
| After-sales Service Provided: | No overseas service provided |
| Model Number: | CL1030J |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Product Description
Product Parameter

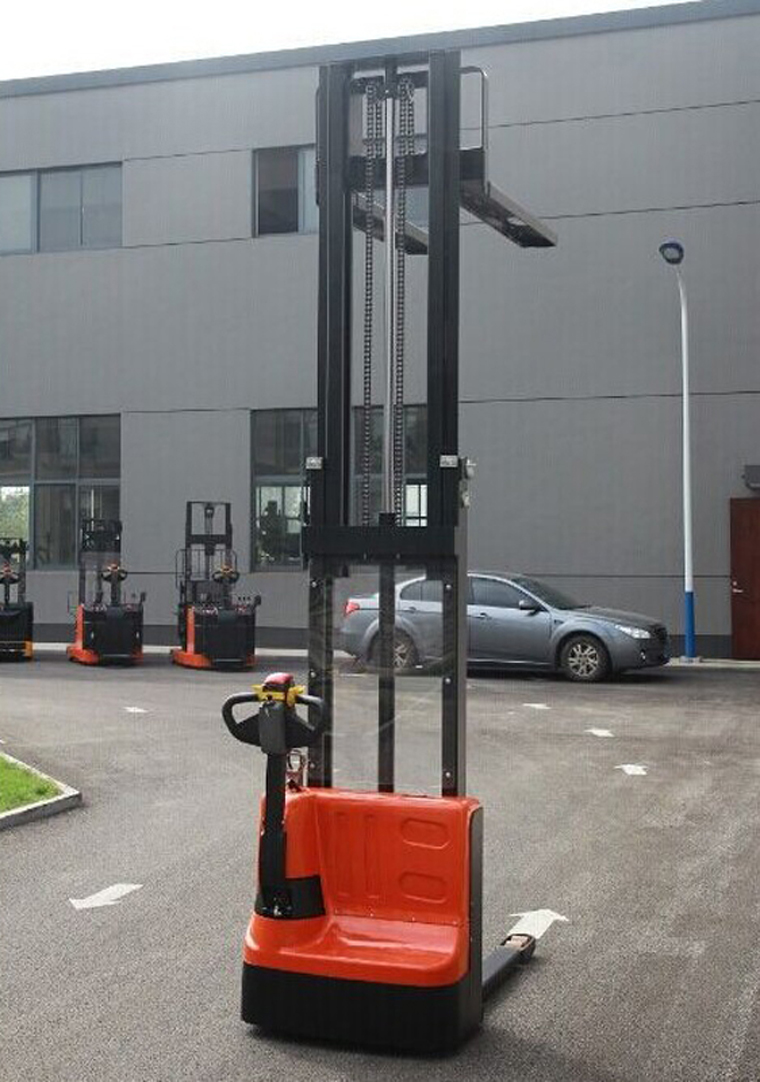

Product photos
1. Imported hydraulic units
2. Major used mast profiled bar
3. Higher performance battery
4. New type patent of the brake system
Product Parameter
Model |
CL1030J | ||
Power |
Battery |
Lift height(mm) |
3000mm |
Operator type |
Walkie |
the height load weight(kg) |
700kg |
Service weight(kg) |
465kg |
Height lowered fork(mm) |
86mm |
Load capacity(kg) |
1000kg |
Fork length(mm) |
1150mm |
Load center distance(mm) |
600mm |
Overall length(mm)(Pedal) |
1755mm |
Lift motor(kw) |
2.2kw |
Overall width(mm) |
795mm |
Driving motor(kw) |
0.75kw |
Outside width(mm) |
570/695mm |
Driving speed(km/h) |
5.5/5.2km/h |
Single fork width(mm) |
160mm |
Service brake |
Regenerative |
Fixed leg length(mm) |
928mm |
Battery(Size) |
2*12v/100Ah(260*169*215) |
Fixed keg,outiside width(mm) |
510/635mm |
Tires |
PU |
Turning radius(mm) |
1336mm |
Tyre size, front |
80*70,4 |
the max./min.Height of stacker |
3424/1994mm |
Tyre size, rear |
210*70,1 |
Working time(h) |
5h |
Balance tyre |
150*58,1 |
Lift speed,laden/unladen |
150/105 mm/s |
|
|
Lowering speed,laden/unladen |
95/100 mm/s |
