| Application: | Laser Cutting |
|---|---|
| Certification: | CE,FDA |
| Brand Name: | DWIN |
| Graphic Format Supported: | AI,BMP,DST,DWG,DXF,DXP,LAS,PLT |
| Applicable Material: | Acrylic,Crytal,Glass,Leather,MDF,Metal,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood |
| Laser Type: | CO2 |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Model Number: | DW1325M |
| Place of Origin: | China (Mainland) |
| Control Software: | Ruida |
| Cooling Mode: | Water Cooling |
| CNC or Not: | Yes |
| Cutting Speed: | 0-10000mm/min |
| Cutting Area: | 1300mm*2500mm |
| Cutting Thickness: | 0-30mm based on your materials |
| Condition: | New |
| Keyword: | CO2 laser cutting machine |
| power: | 150W |
| control system: | Ruida |
Quick Details
Specifications

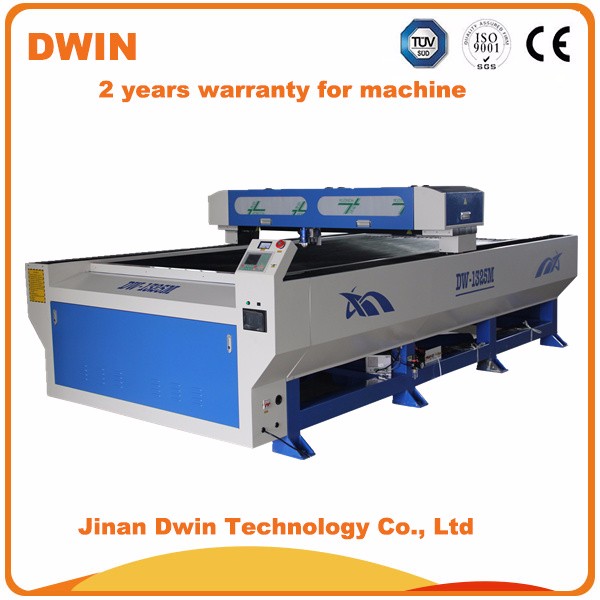

150W metal & nonmetal laser cutting machine DW1325M
Features:
1. to cater to larger material cutting in co2 metal and non metal cutting industry, and satisfy the requirements of the high precision for the cutting result, this machine adopts large and solid cast steel machine lathe, so to make it more capable in material load bearing, at the same time, let the machine operating stable during work.
2. Equip with ball screw on each side of the machine, so to make sure preciser cutting result for both metal and nonmetal materials
3. Special up and down adjusting laser head, enables it processing well on uneven metal materials.
4. Imported Japanese servo motor, more powerful and stable compares with traditional china made servo motor, cooperating with the imported ball screw, this machine get additional more precision and flexibility in cutting result than the ordinary model.
5. this machine can also be customized.
Applicable materials
Nonmetal materials, like acrylic, wood, MDF, die board, and so on. Metal materials, such as stainless steel, carbon steel, etc.
Applicable industry
Mainly used in advertising, decoration industry( stainless metal and carbon steel related products), sheet metal industry (carbon steel), packing industry(die board) and other related industry.
1 |
Model |
DW1325 |
2 |
Working area |
1300*2500mm |
3 |
Laser power |
150W |
4 |
Cutting speed |
0-50mm/s |
5 |
Repositioning accuracy |
0.05mm |
6 |
Working voltage |
AC110-220v 10% 50HZ-60HZ |
7 |
Consuming power |
Less than 1000 watt |
8 |
Graphic format supported |
BMP, PLT, DST, DXF, AI,CDR |
9 |
Software supported |
CorelDraw, PhotoShop, AutoCAD |
10 |
Minimum letter size |
English 1mm x1mm Chinese 2mm x 2mm |
11 |
Driving system |
Panasonic or Yaskawa Servo motors 400w |
12 |
Laser tube cooling type |
CW5000 industry chiller |
13 |
Other auxiliary equipment |
Exhaust fans and air exhaust pipe |
14 |
Working temperature |
0-45c |
15 |
Operating humidity |
8%-95%(without condensed water) |
16 |
Laser control system |
DSP control system leetro6585 |
17 |
Laser tube type |
Sealed co2 glass laser tube |
