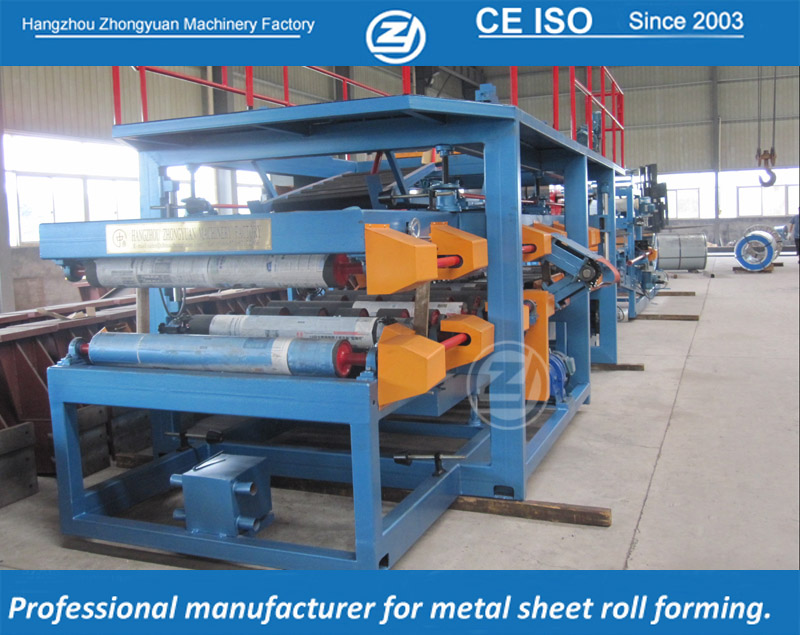

ESP sandwich panel production machine could make the polystyrene core sandwich panel. this sandwich panel product line adopts PLC and touch screen controlling system. It could make both roof and wall sandwich panel with core of polystyrene foam material.

EPS Sandwich Panel Production Machine Suppliers,hot sale

Technical Data of

EPS Sandwich Panel Spec
Panel thickness	Mini thickness	50mm (wall panel)
	Max. Thickness	200mm(exclude corrugated sandwich panel)
Steel Sheet Spec
Thickness	0.4-0.7mm color steel sheet
Width	1250mm (we can design according to buyer's requirement)
Max. Coil weight	5 tons
Inner Dia. of coil	508mm
Whole Line Spec
Whole line dimension	about 35000mm 2500mm 3000mm
Total weight	about 18t
Working speed	about 5-7m/min (adjustable)
the output	1500m2-2000m2/8hour
Control mode	PLC and converter
Total power	about 28Kw (as per final designing)
Power required	380V/3phase/50Hz or as per customer's requirement.
Air pressure	0.7Mpa (for buyer to prepare)
Suitable working temperature	about 25 degree

Consecutive laminating body makes EPS blocks stick to up and down sheets

Product Application of EPS Sandwich Panel Production Machine

Due to its simple operation, this forming machine is widely used in the construction of steel structure enclosures, warehouse, workshop, cold storages, and mobile buildings.

, PU Sandwich Panel Production Machine,

in order to satisfy various customer requirements, we design and manufacture PU sandwich panel lines in different specs, models and configurations.
