Technical Data of

Suitable material	Q235 color steel sheet;0.5-0.6mm,
Working speed	About5- 6m/min
Step distance	Adjustable according to requirement (>=250mm)
Power Requirement	Main motor power: 5.5 Kw(Depend on final design)
	Hydraulic station power: 5.5Kw(Depend on final design)
Material of forming rollers	No.45 steel, plated with chrome on surface.
Material of cutter,pressing die	Cr12 mould steel with quench treatment, HRC58-60
Material of shaft	High quality 45# steel, Dia. Is 72mm.    Roller grinder milling.
Shaft diameter	72mm
Controlling system	Mitsubishi PLC & converter
Total weight of machine	about 10500KGS
Machine's size	about 18m1.8m 1.5m (Depend on final design)

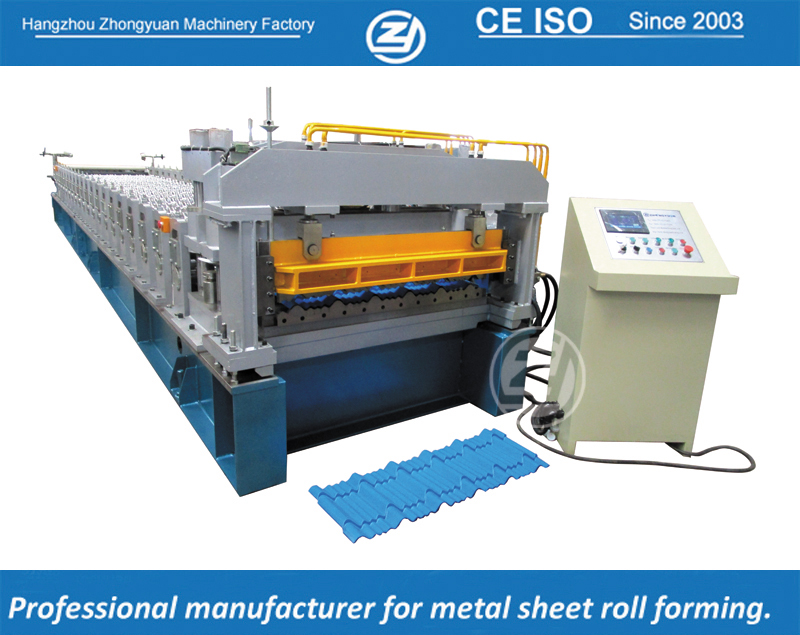

Roll forming machine,, Step Tile Forming Machines China Supplier

Our Metrocopo Tile Roll Forming Machine's Advantages

1. Production speed: 6m per minute.

2. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome.

3.  Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.

4. Cutter blade: Cr12 mould steel with quenched treatment, long life time.

5. High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.

6. People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.

7. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifetime services for our machines
